2019-04-02 Flink Forward -Pulsar + Flink

1 . Elastic Data Processing with Apache Flink and Apache Pulsar Sijie Guo (sijieg) 2019-04-02 

2 . Who am I • Apache Pulsar PMC Member • Apache BookKeeper PMC Member • Interested in technologies around Event Streaming 

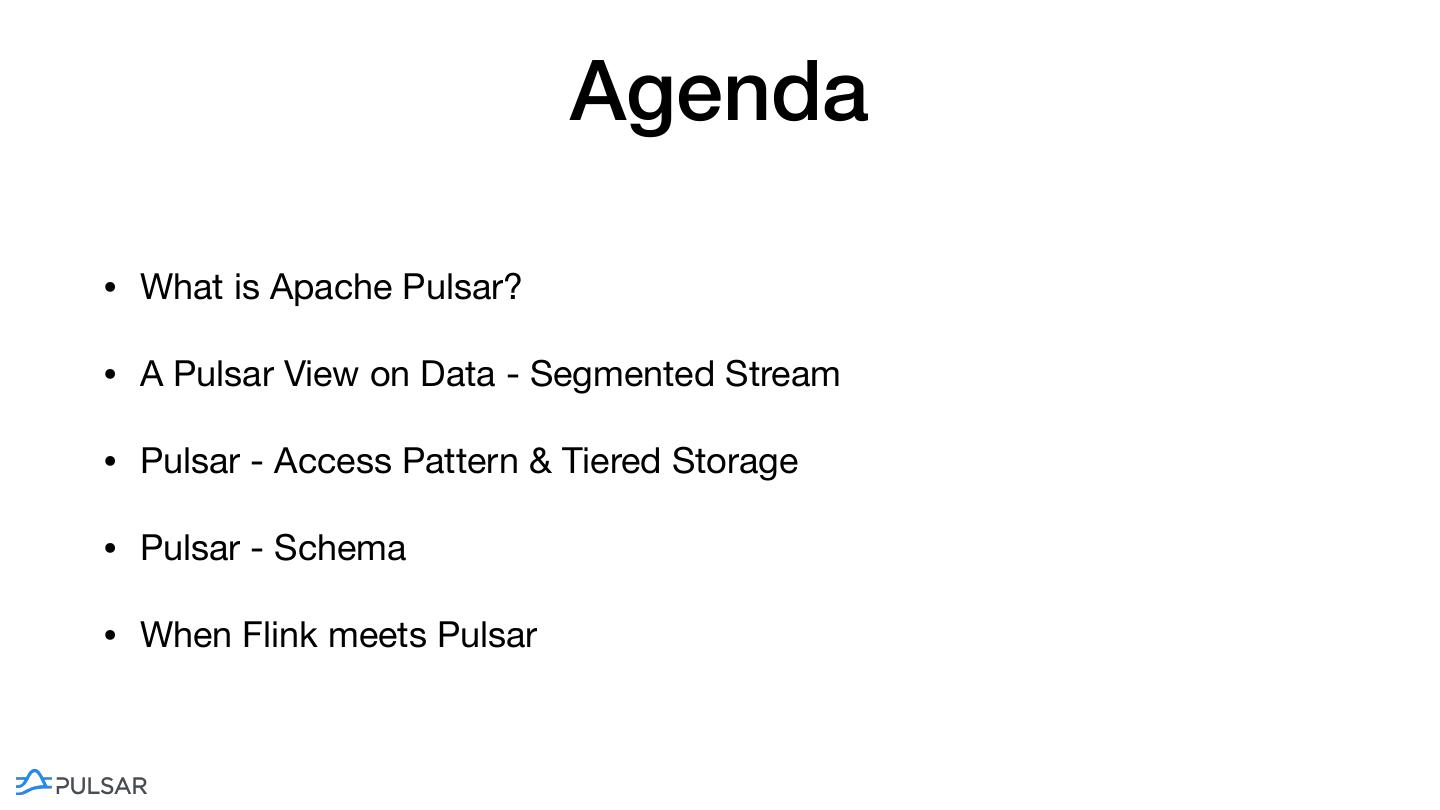

3 . Agenda • What is Apache Pulsar? • A Pulsar View on Data - Segmented Stream • Pulsar - Access Pattern & Tiered Storage • Pulsar - Schema • When Flink meets Pulsar 

4 .What is Apache Pulsar? 

5 . Pub/Sub Messaging 2003 2010 2012 2006 2011 

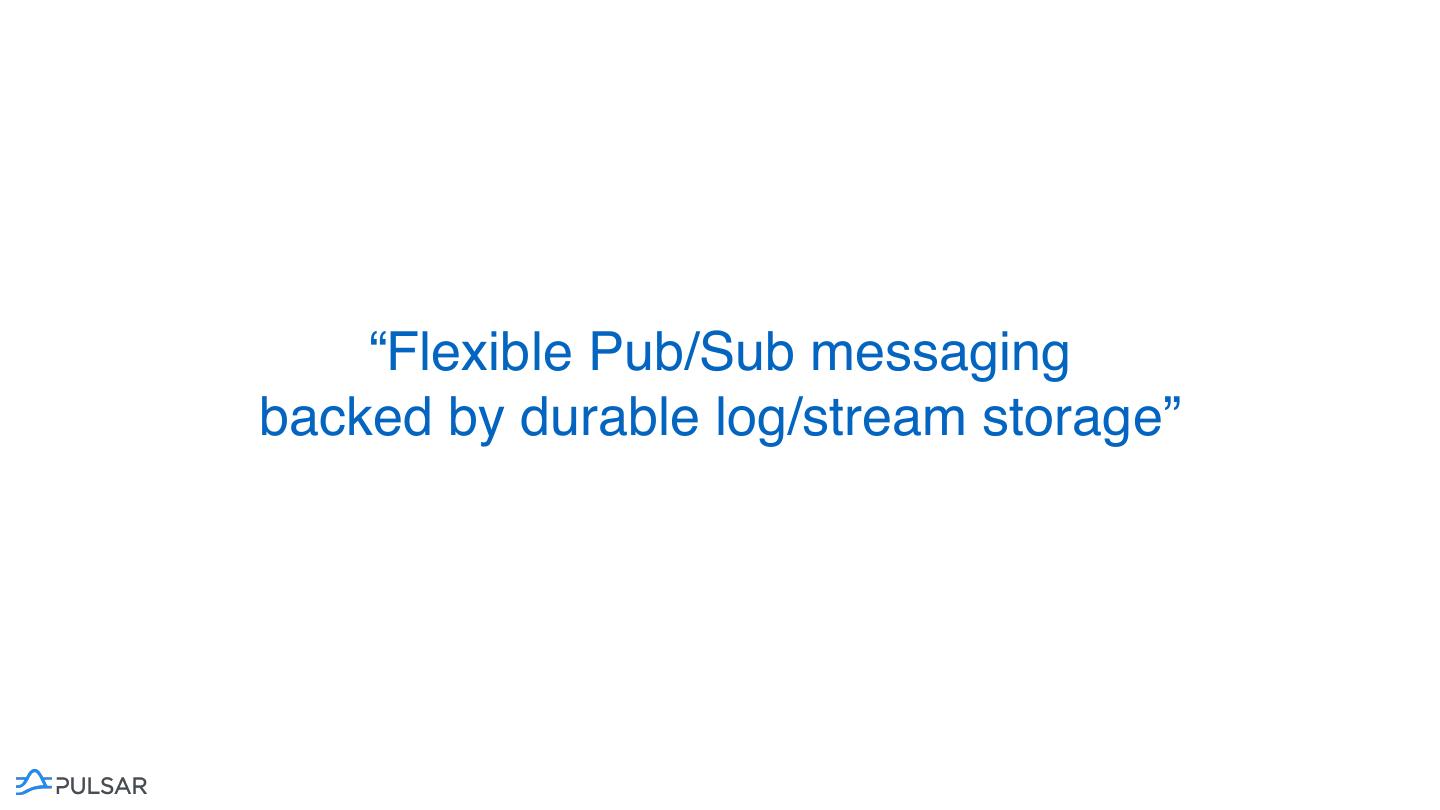

6 . “Flexible Pub/Sub messaging backed by durable log/stream storage” 

7 .Pulsar - Pub/Sub 

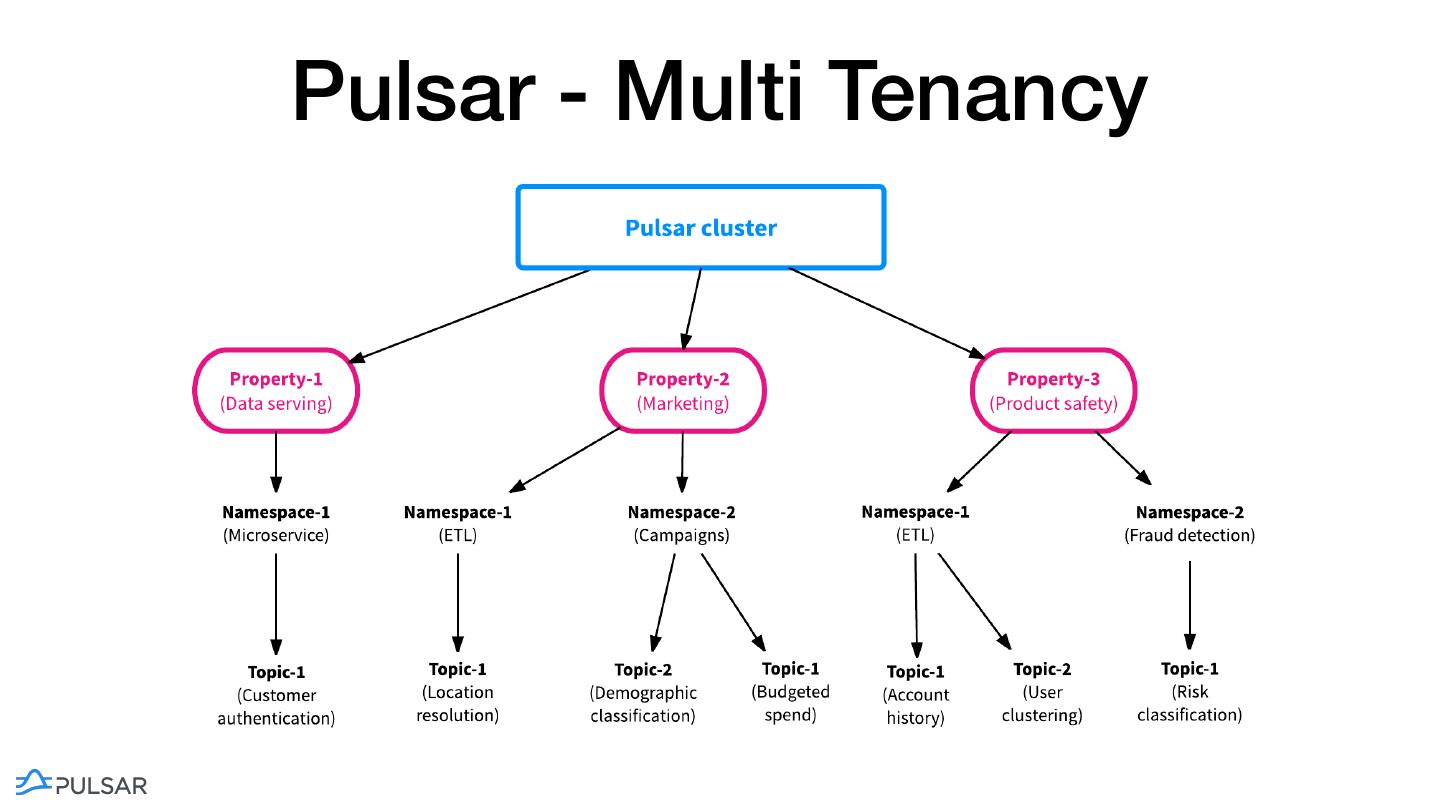

8 .Pulsar - Multi Tenancy 

9 .Pulsar - Queue + Streaming 

10 .Pulsar - Cloud Native Layered Architecture • Independent Scalability • Instant Failure Recovery • Balance-free on cluster expansions 

11 .A Pulsar View on Data 

12 .Batch - HDFS 

13 .Stream - Pub/Sub 

14 .A Flink View on Computing “Batch processing is a special case of Stream processing” 

15 .Pulsar = Segmented Stream 

16 . Topic Producers Topic Consumers Time 

17 .Partitions P0 Producers P1 P2 Consumers P3 Time 

18 . Segments P0 Segment 1 Segment 2 Segment 3 Producers P1 Segment 1 Segment 2 Segment 3 Segment 4 P2 Segment 1 Segment 2 Segment 3 Consumers P3 Segment 1 Segment 2 Segment 3 Time 

19 . Stream P0 Segment 1 Segment 2 Segment 3 Producers P1 Segment 1 Segment 2 Segment 3 Segment 4 P2 Segment 1 Segment 2 Segment 3 Consumers P3 Segment 1 Segment 2 Segment 3 Time 

20 . Stream Producers Stream Segment 1 Segment 2 Segment 3 Segment 4 Consumers Time 

21 . Segmented Stream • Segmented Stream Systems • Apache Pulsar, Twitter EventBus, EMC Pravega • All Apache BookKeeper based • Used BK in a different way • Pulsar, EventBus - Uses BK as the segment store • Pravega - Uses BK as the journal only 

22 . Access Patterns ✓ Write
 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

23 . Access Patterns ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

24 . Access Patterns Tailing Read ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

25 . Access Patterns Tailing Read ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time Catchup Read ✓ Catchup Read
 追赶读 

26 . Write Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

27 . Tailing Read Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

28 . Catchup Read Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

29 . IO Isolation Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower)
