1 .Chapter 13 Network Design and Management

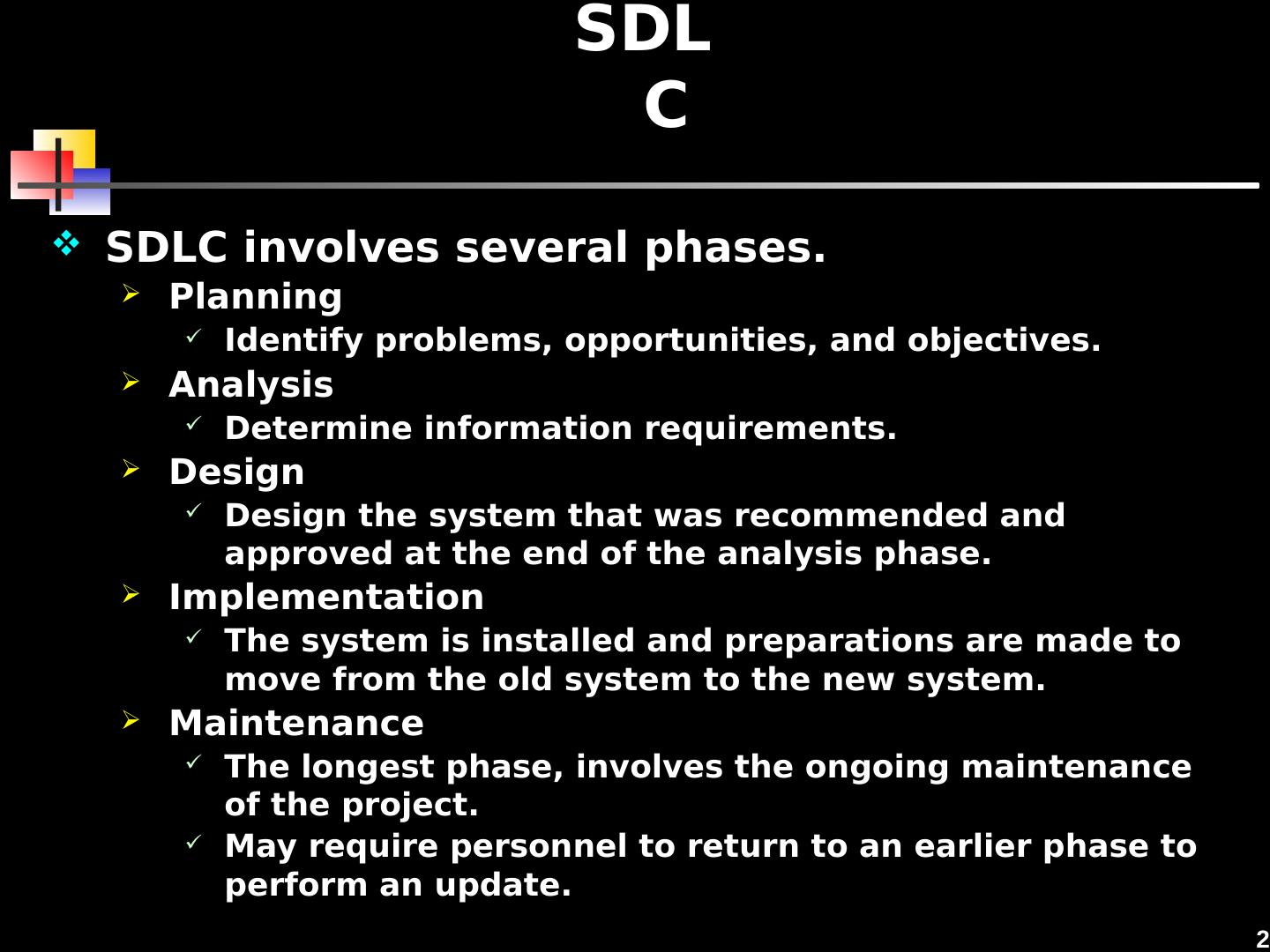

2 .2 SDLC SDLC involves several phases. Planning Identify problems, opportunities, and objectives. Analysis Determine information requirements. Design Design the system that was recommended and approved at the end of the analysis phase. Implementation The system is installed and preparations are made to move from the old system to the new system. Maintenance The longest phase, involves the ongoing maintenance of the project. May require personnel to return to an earlier phase to perform an update.

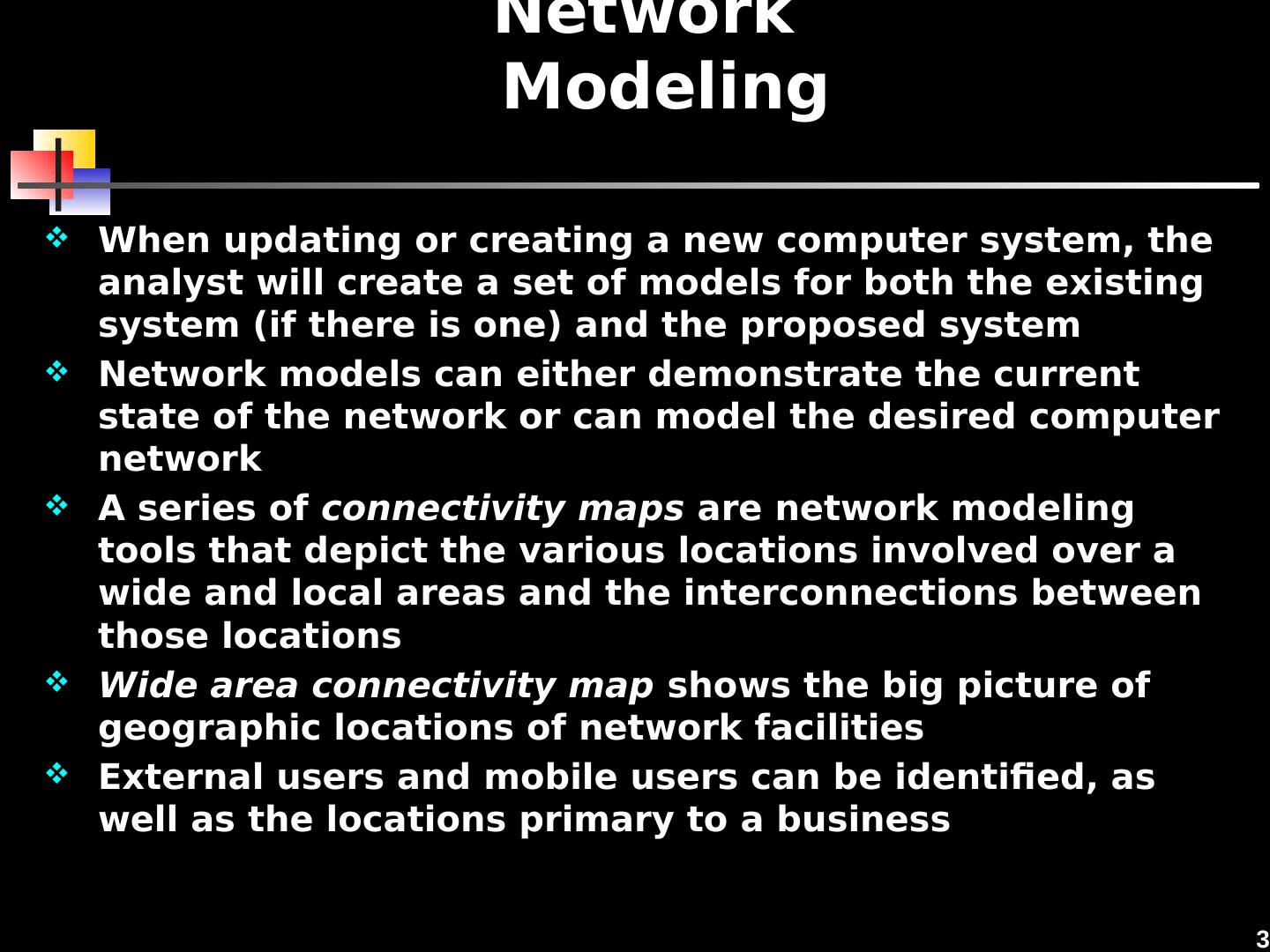

3 .3 Network Modeling When updating or creating a new computer system, the analyst will create a set of models for both the existing system (if there is one) and the proposed system Network models can either demonstrate the current state of the network or can model the desired computer network A series of connectivity maps are network modeling tools that depict the various locations involved over a wide and local areas and the interconnections between those locations Wide area connectivity map shows the big picture of geographic locations of network facilities External users and mobile users can be identified, as well as the locations primary to a business

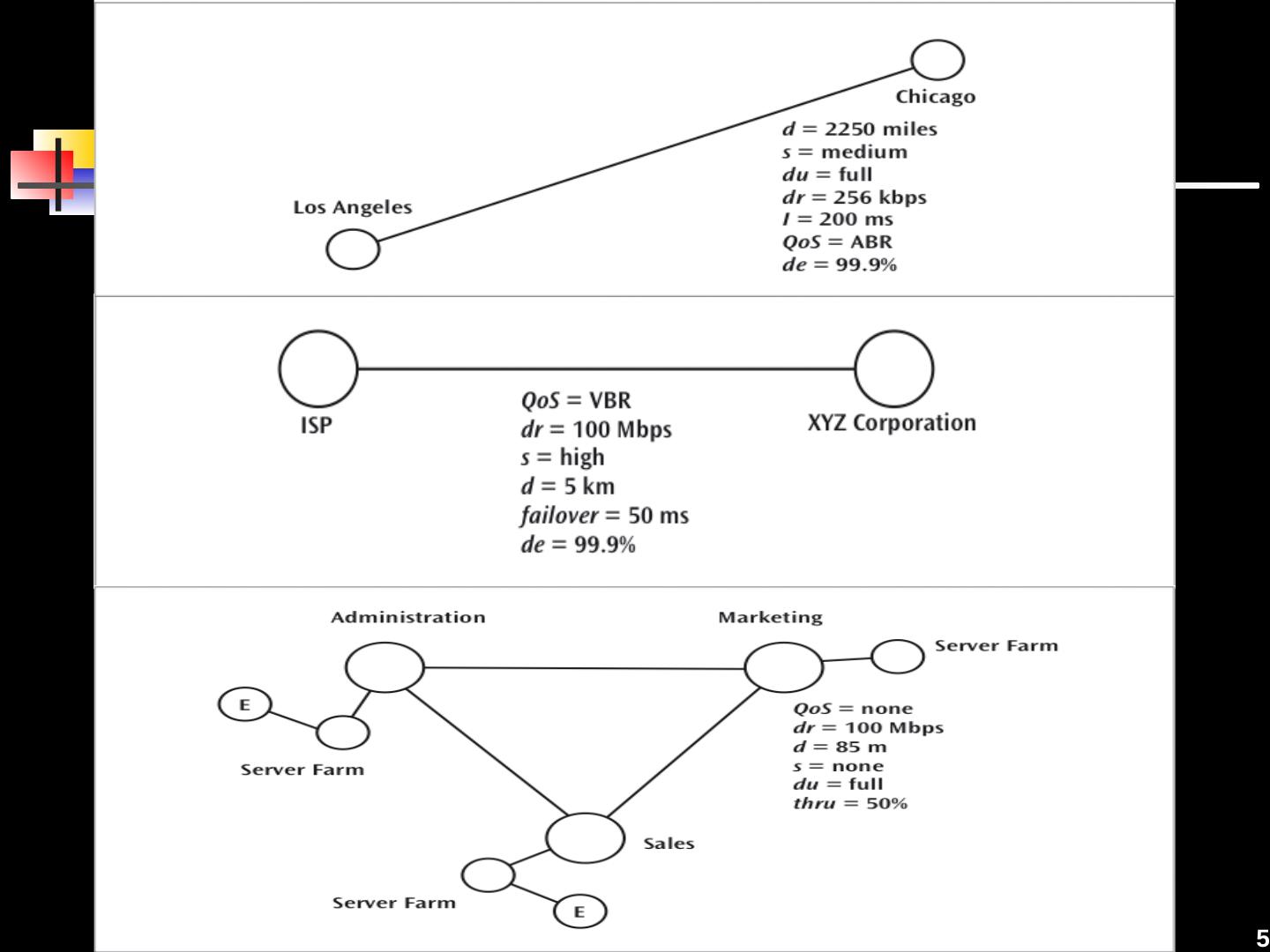

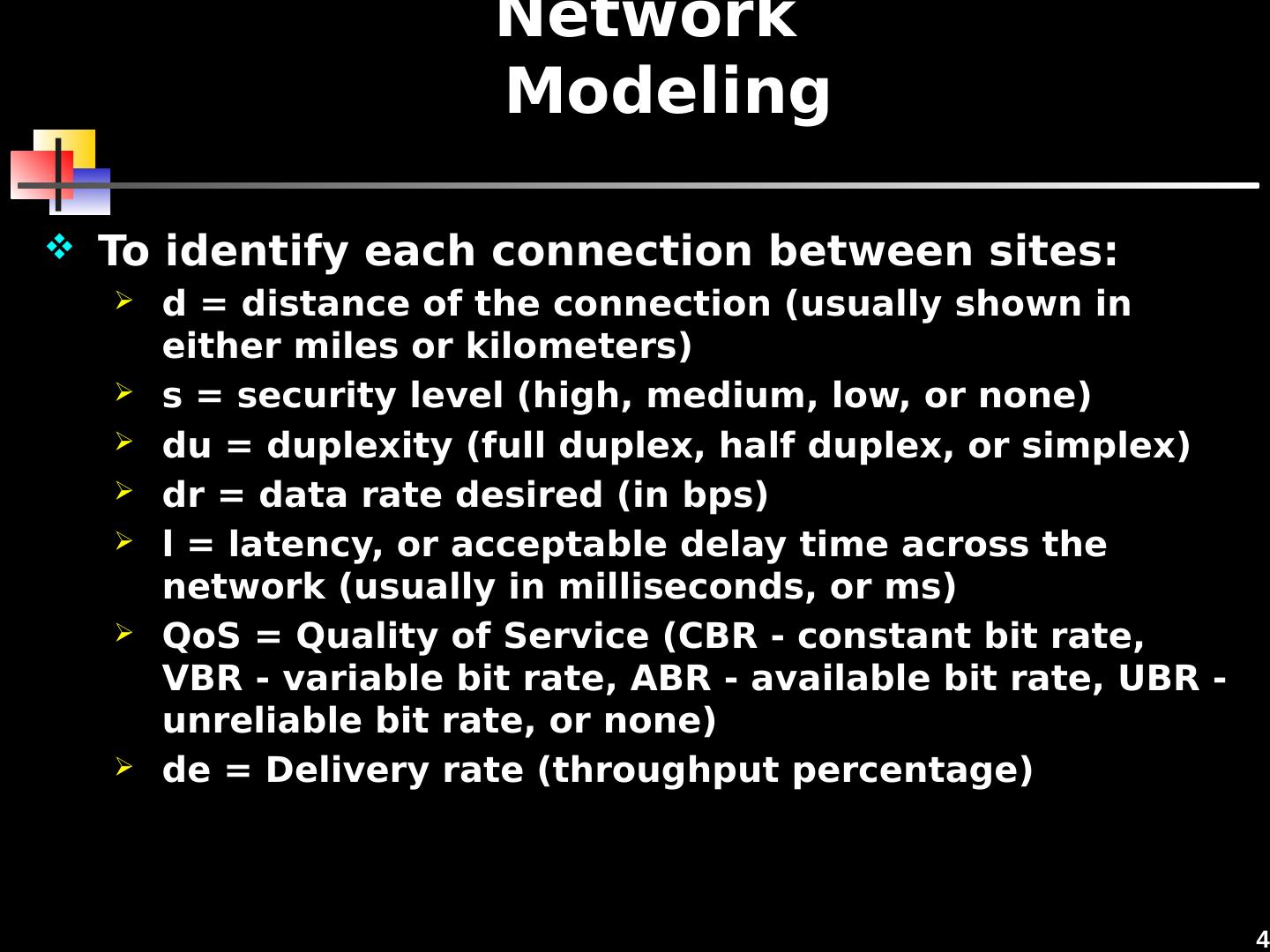

4 .4 To identify each connection between sites: d = distance of the connection (usually shown in either miles or kilometers) s = security level (high, medium, low, or none) du = duplexity (full duplex, half duplex, or simplex) dr = data rate desired (in bps) l = latency, or acceptable delay time across the network (usually in milliseconds, or ms) QoS = Quality of Service (CBR - constant bit rate, VBR - variable bit rate, ABR - available bit rate, UBR - unreliable bit rate, or none) de = Delivery rate (throughput percentage) Network Modeling

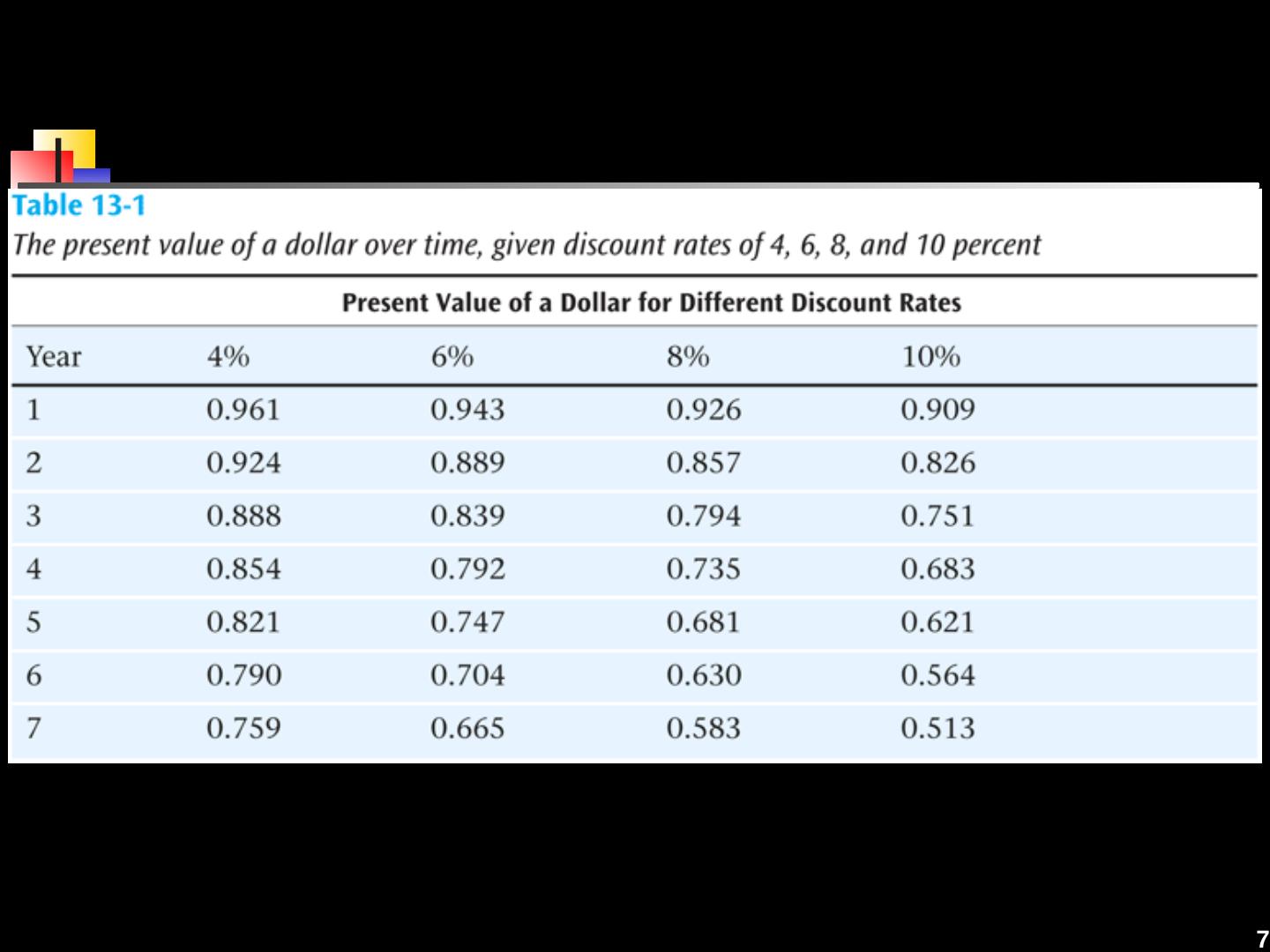

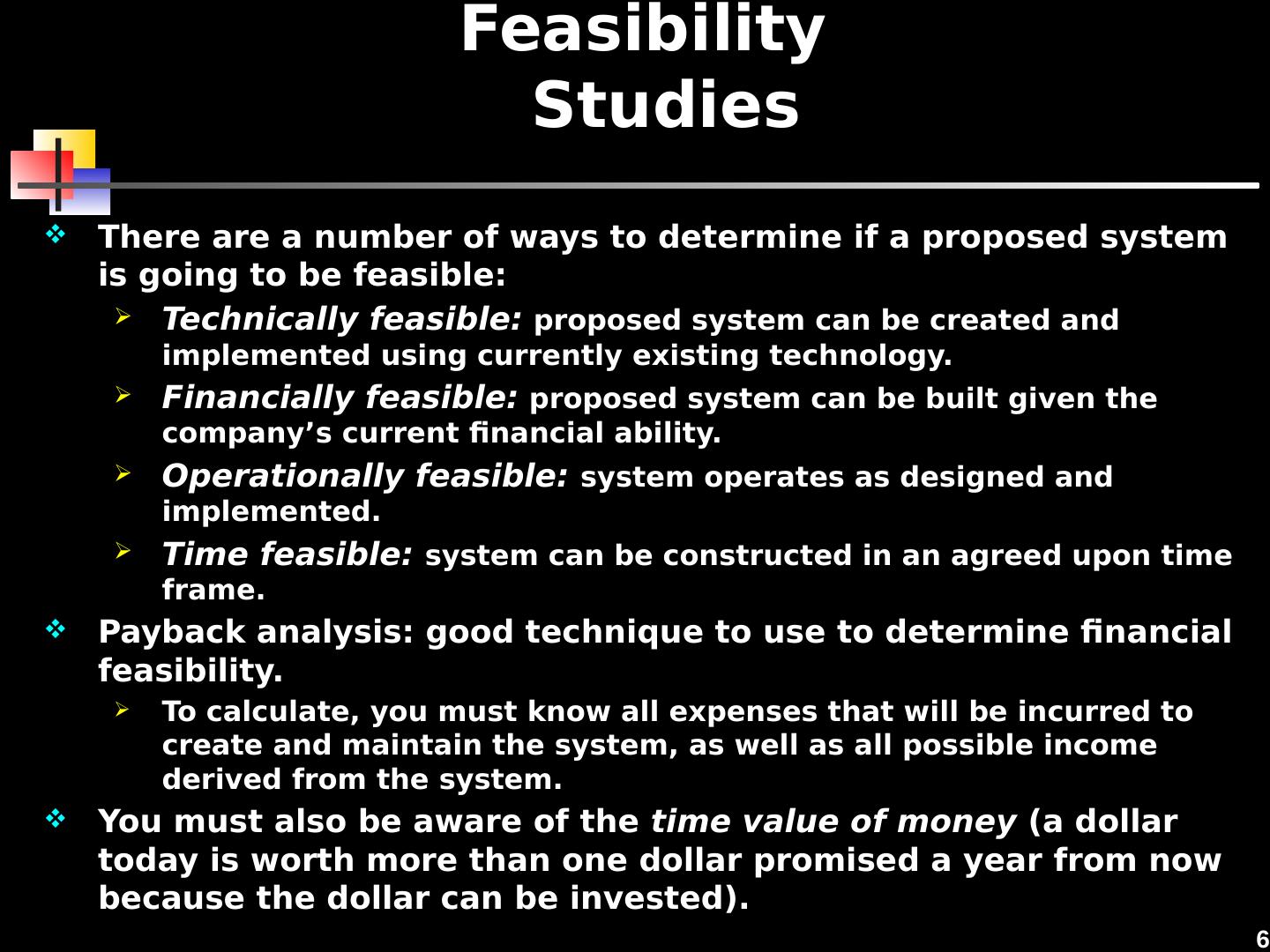

6 .6 There are a number of ways to determine if a proposed system is going to be feasible: Technically feasible: proposed system can be created and implemented using currently existing technology. Financially feasible: proposed system can be built given the company’s current financial ability. Operationally feasible: system operates as designed and implemented. Time feasible: system can be constructed in an agreed upon time frame. Payback analysis: good technique to use to determine financial feasibility. To calculate, you must know all expenses that will be incurred to create and maintain the system, as well as all possible income derived from the system. You must also be aware of the time value of money (a dollar today is worth more than one dollar promised a year from now because the dollar can be invested). Feasibility Studies

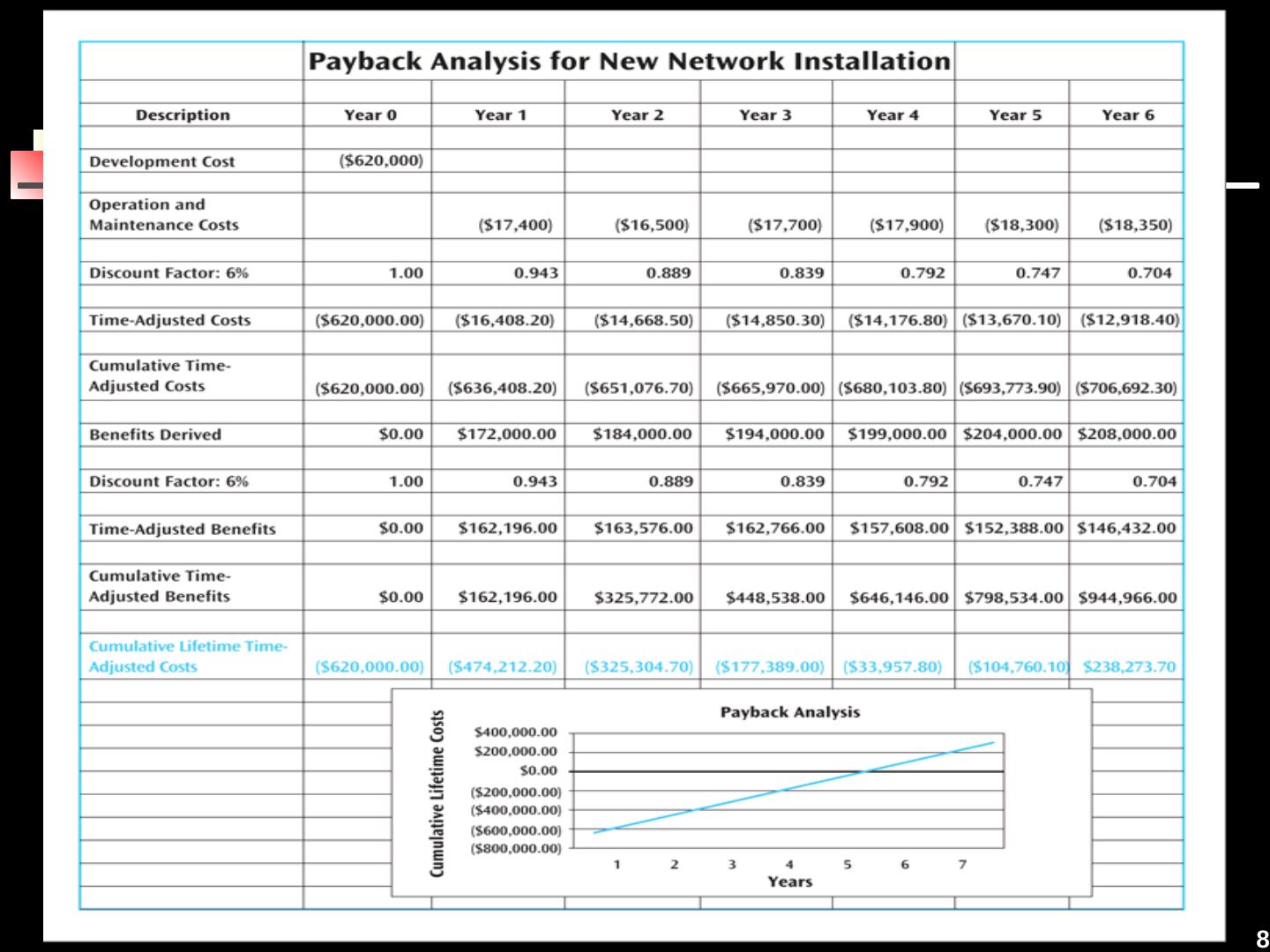

8 .8 Feasibility Studies (continued) 8

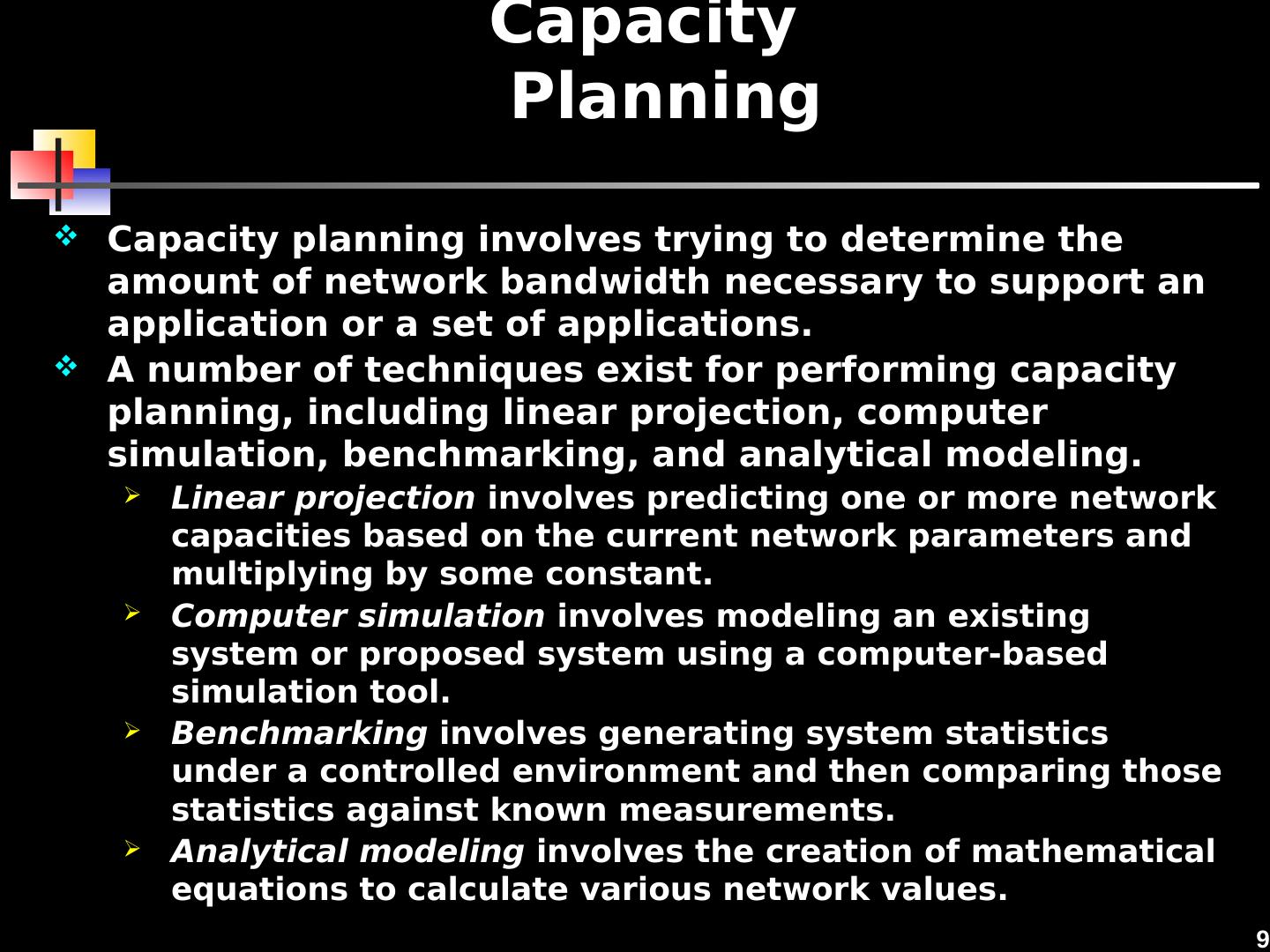

9 .9 Capacity planning involves trying to determine the amount of network bandwidth necessary to support an application or a set of applications. A number of techniques exist for performing capacity planning, including linear projection, computer simulation, benchmarking, and analytical modeling. Linear projection involves predicting one or more network capacities based on the current network parameters and multiplying by some constant. Computer simulation involves modeling an existing system or proposed system using a computer-based simulation tool. Benchmarking involves generating system statistics under a controlled environment and then comparing those statistics against known measurements. Analytical modeling involves the creation of mathematical equations to calculate various network values. Capacity Planning

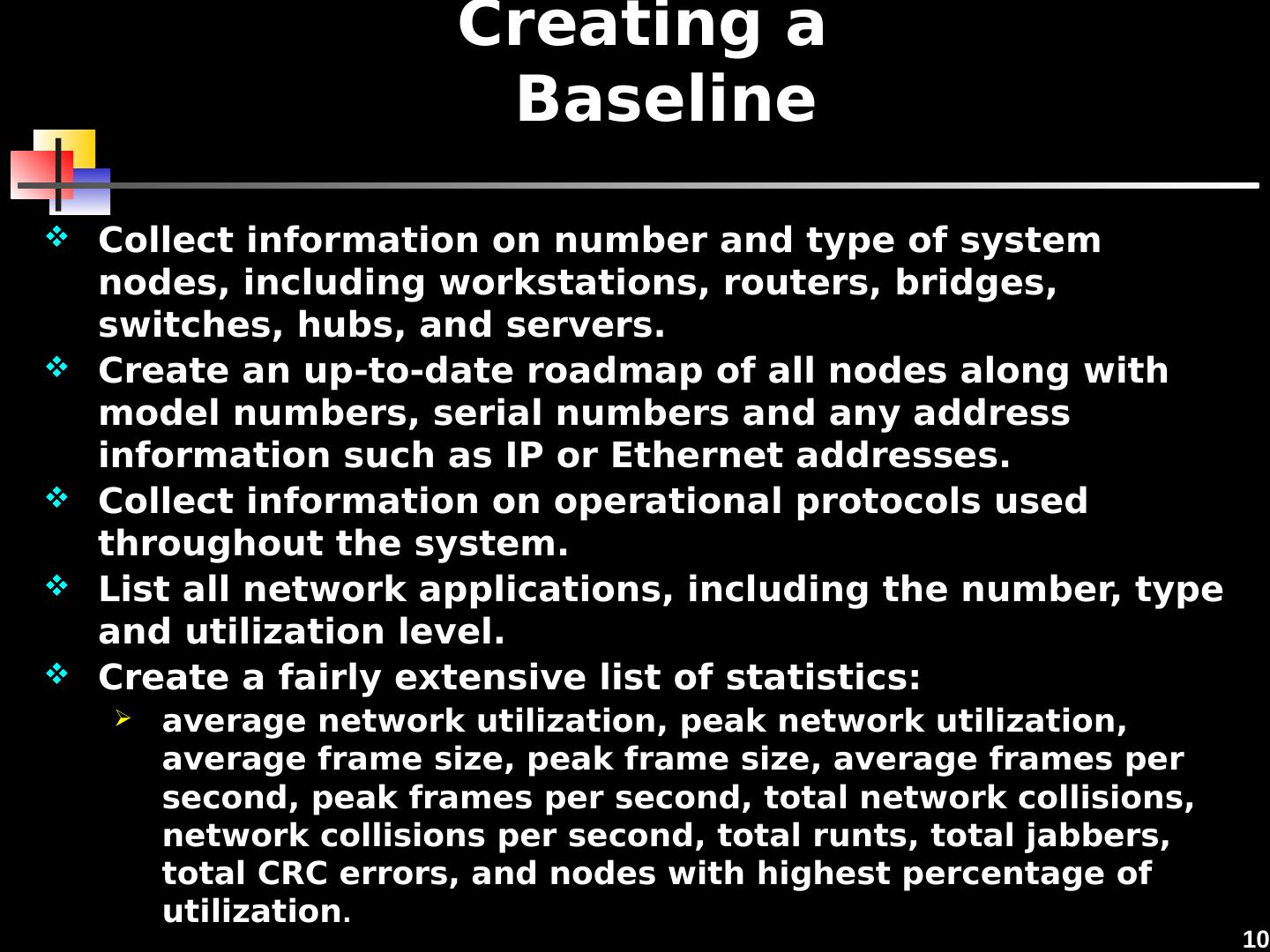

10 .10 Collect information on number and type of system nodes, including workstations, routers, bridges, switches, hubs, and servers. Create an up-to-date roadmap of all nodes along with model numbers, serial numbers and any address information such as IP or Ethernet addresses. Collect information on operational protocols used throughout the system. List all network applications, including the number, type and utilization level. Create a fairly extensive list of statistics: average network utilization, peak network utilization, average frame size, peak frame size, average frames per second, peak frames per second, total network collisions, network collisions per second, total runts, total jabbers, total CRC errors, and nodes with highest percentage of utilization . Creating a Baseline

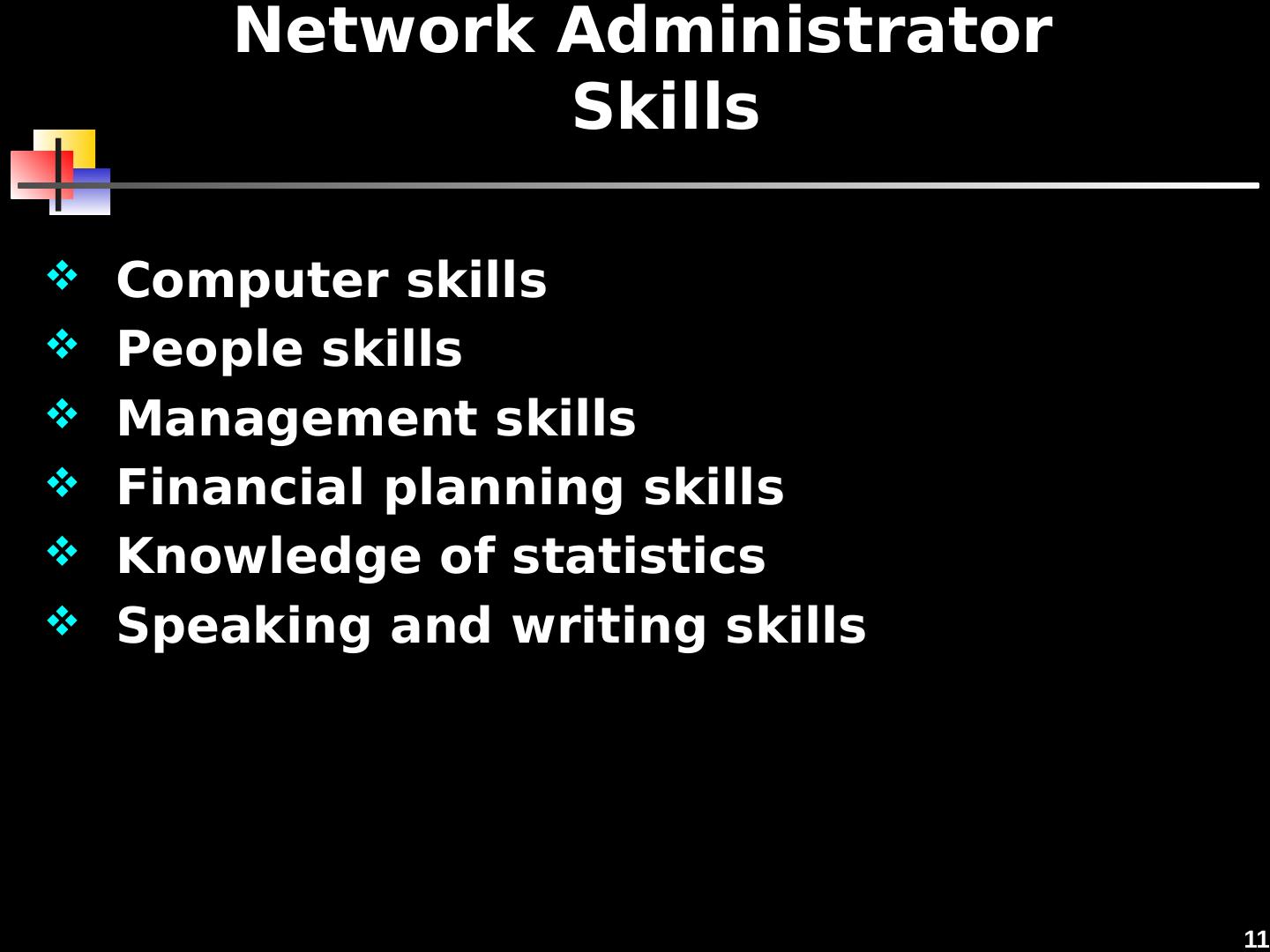

11 .11 Computer skills People skills Management skills Financial planning skills Knowledge of statistics Speaking and writing skills Network Administrator Skills

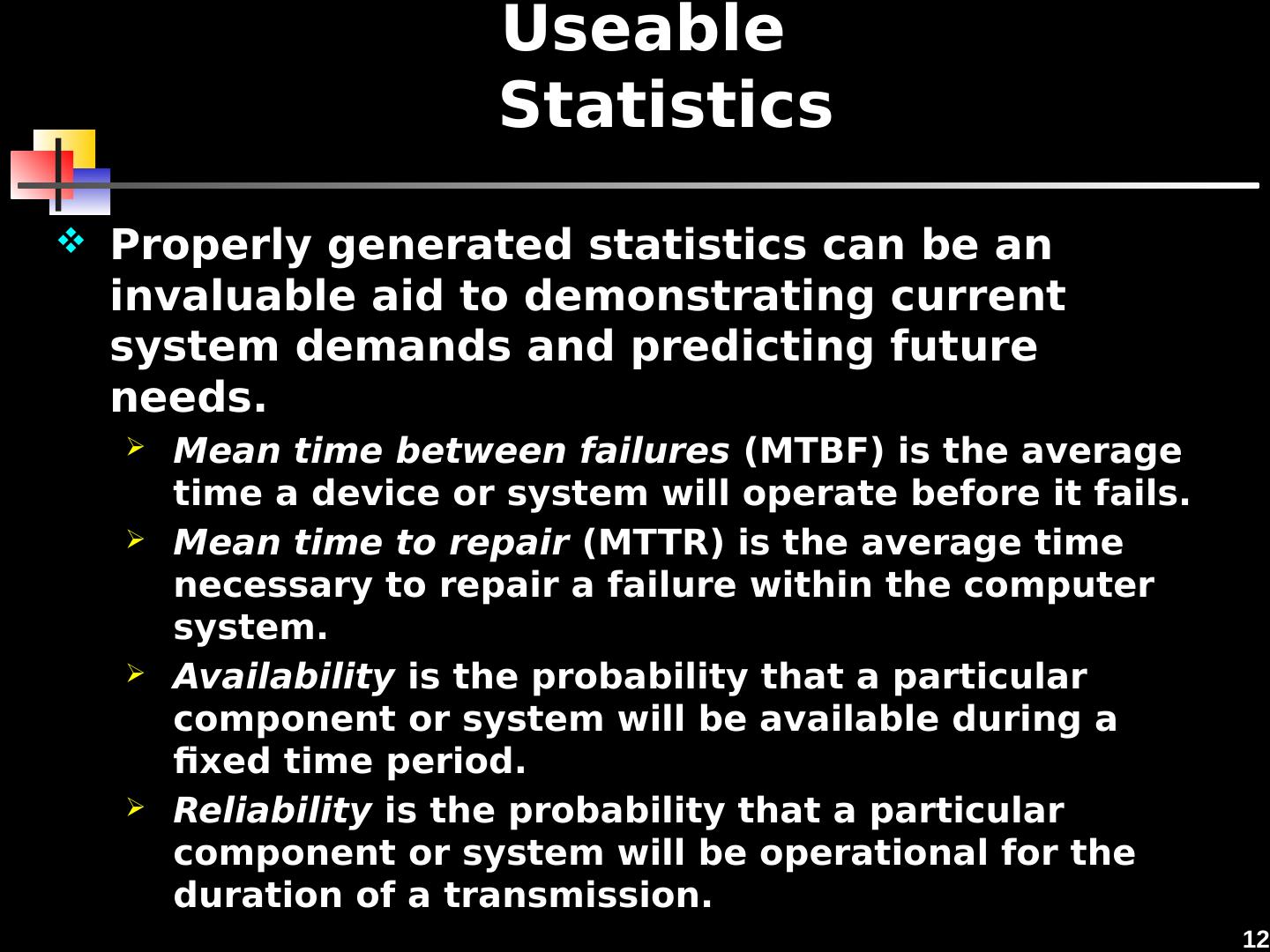

12 .12 Properly generated statistics can be an invaluable aid to demonstrating current system demands and predicting future needs. Mean time between failures (MTBF) is the average time a device or system will operate before it fails. Mean time to repair (MTTR) is the average time necessary to repair a failure within the computer system. Availability is the probability that a particular component or system will be available during a fixed time period. Reliability is the probability that a particular component or system will be operational for the duration of a transmission. Useable Statistics
13 .13 Simple Network Management Protocol (SNMP) is an industry standard designed to manage network components from a remote location. Currently in version 3, SNMP supports agents, managers, and the Management Information Base (MIB). A managed element has management software, called an agent , running in it. A second object, the SNMP manager , controls the operations of a managed element and maintains a database of information about all managed elements. A manager can query an agent to return current operating values, or can instruct an agent to perform a particular action. The Management Information Base (MIB) is a collection of information that is organized hierarchically and describes the operating parameters of all managed agents. Managing Operations
14 .14 To assist a network support person, a number of diagnostic tools are available: Electrical testers Cable testers Network testers Protocol analyzers Network Diagnostic Tools
