05计算机组成--分支指令
展开查看详情
1 .Various branch instructions beq $6, $8, there (branch if equal) bne $6, $8, here (branch if not equal) j label {unconditional branch to label} jr $6 {branch to the address stored in $6} Which format do these instruction use? Instructions for comparison slt $1, $2, $3 (set less than) If r2 < r3 then r1:=1 else $r1:=0 There is a pseudo-instruction blt $s0, $s1, label The assembler translates this to the following: slt $t0, $s0, $s1 # if $s0 < $s1 then $t0 =1 else $t0 = 0 bne $t0, $zero, label # if $t0 ≠ 0 then goto label

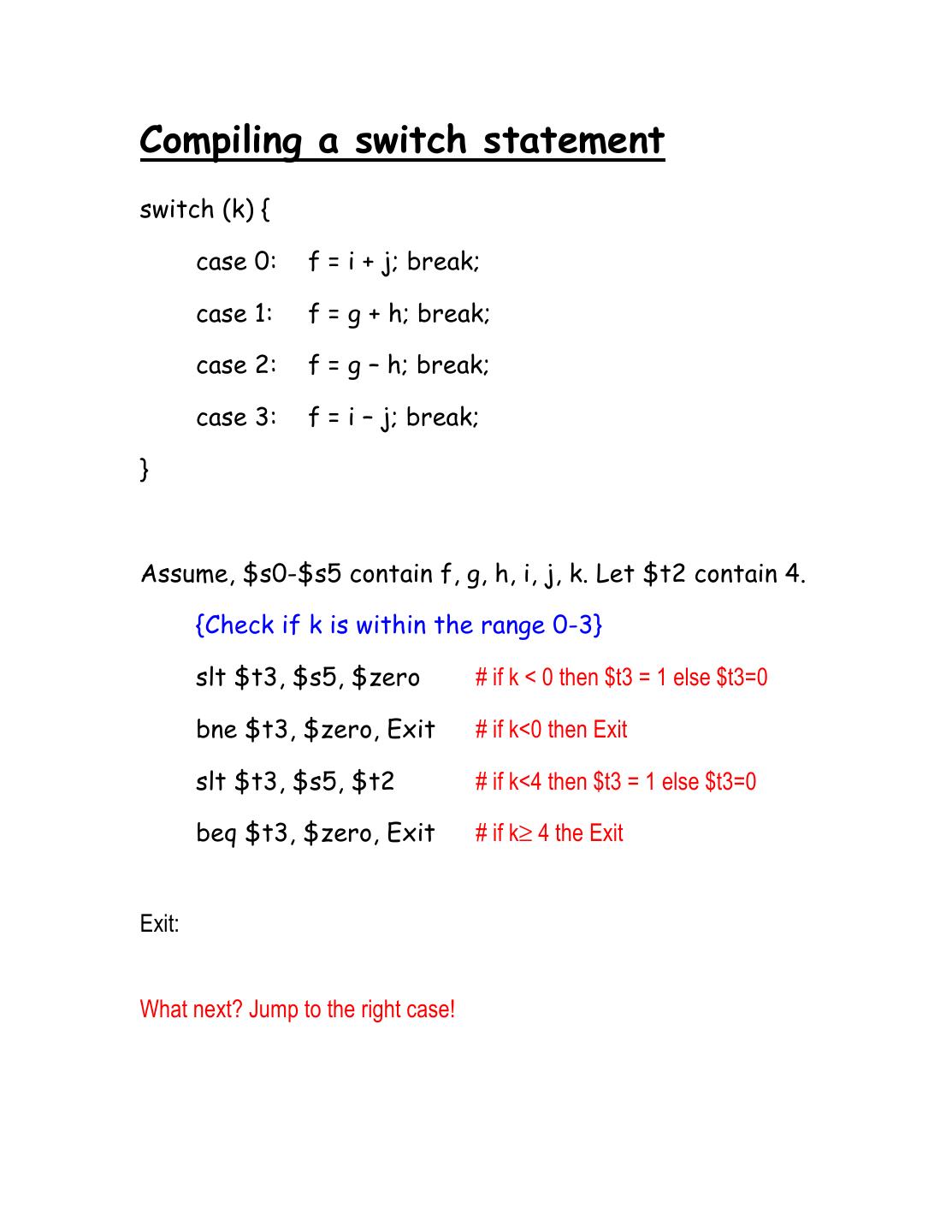

2 .Compiling a switch statement switch (k) { case 0: f = i + j; break; case 1: f = g + h; break; case 2: f = g – h; break; case 3: f = i – j; break; } Assume, $s0-$s5 contain f, g, h, i, j, k. Let $t2 contain 4. {Check if k is within the range 0-3} slt $t3, $s5, $zero # if k < 0 then $t3 = 1 else $t3=0 bne $t3, $zero, Exit # if k<0 then Exit slt $t3, $s5, $t2 # if k<4 then $t3 = 1 else $t3=0 beq $t3, $zero, Exit # if k≥ 4 the Exit Exit: What next? Jump to the right case!

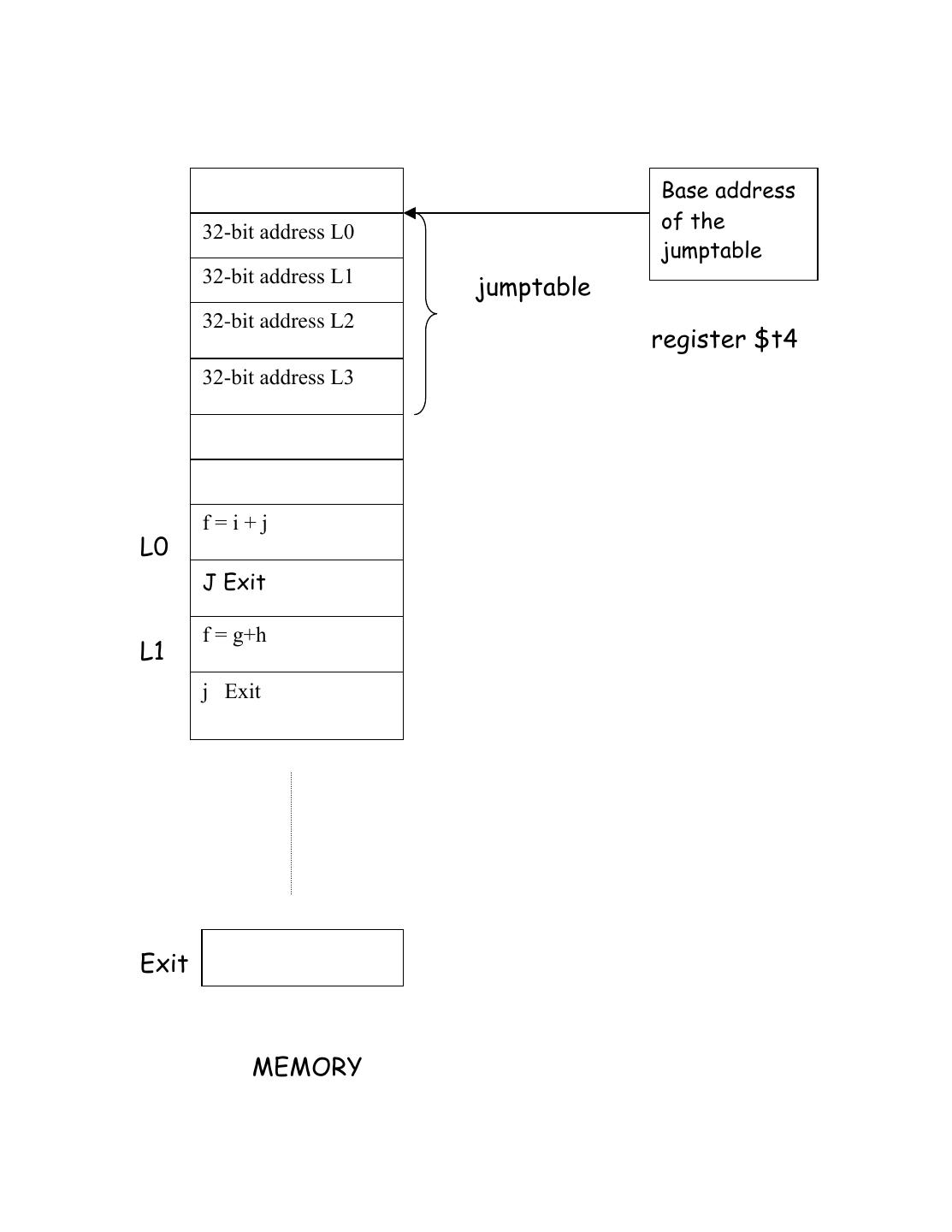

3 . Base address 32-bit address L0 of the jumptable 32-bit address L1 jumptable 32-bit address L2 register $t4 32-bit address L3 f=i+j L0 J Exit f = g+h L1 j Exit Exit MEMORY
4 .Here is the remainder of the program; add $t1, $s5, $s5 # t1 = 2*k add $t1, $t1, $t1 # t1 = 4*k add $t1, $t1, $t4 # t1 = base address + 4*k lw $t0, 0($t1) # load the address pointed to # by t1 into register t0 jr $t0 # jump to addr pointed by t0 L0: add $s0, $s3, $s4 #f=i+j J Exit L1: add $s0, $s1, $s2 # f = g+h J Exit L2: sub $s0, $s1, $s2 # f = g-h J Exit L3: sub $s0, $s3, $s4 #f=i-j Exit: <next instruction>

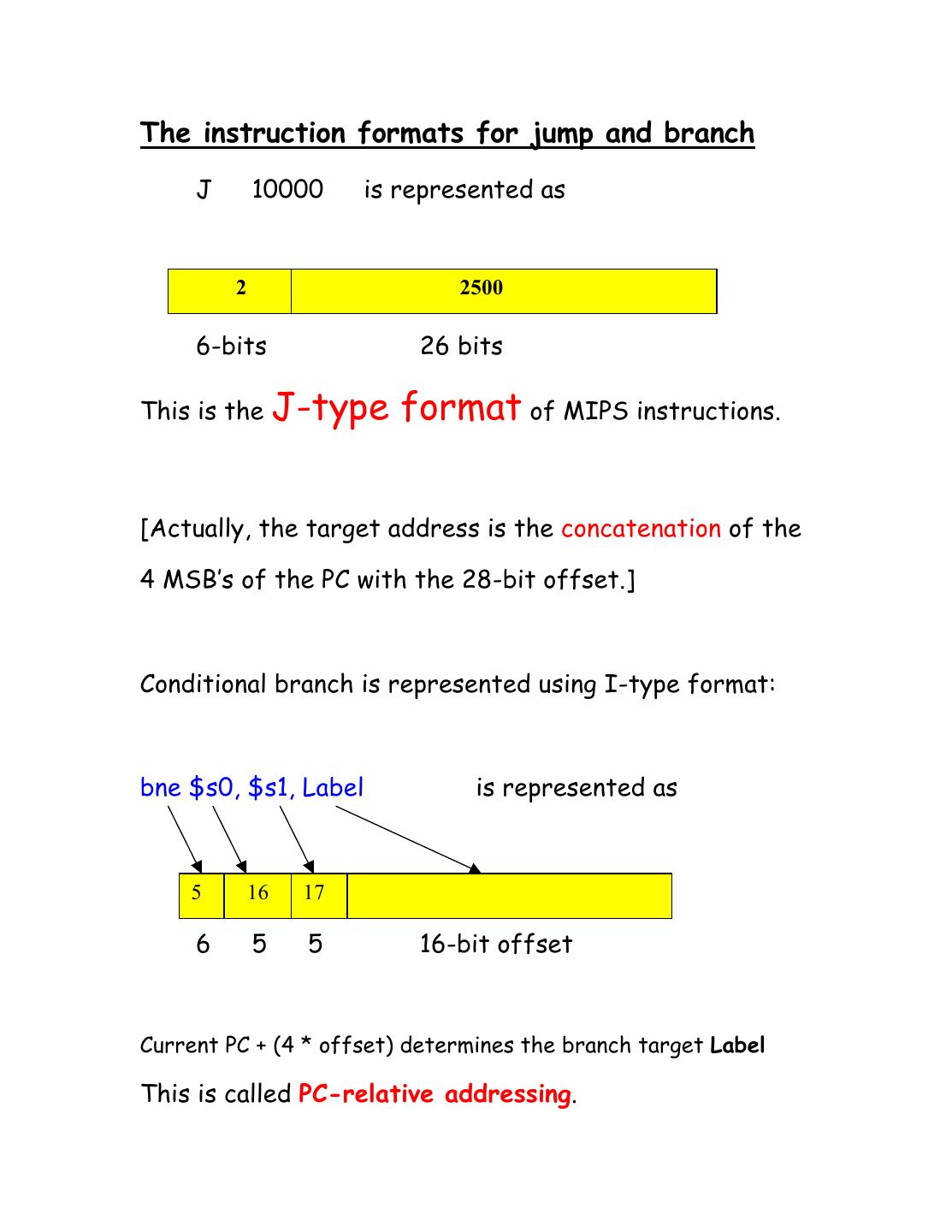

5 .The instruction formats for jump and branch J 10000 is represented as 2 2500 6-bits 26 bits This is the J-type format of MIPS instructions. [Actually, the target address is the concatenation of the 4 MSB’s of the PC with the 28-bit offset.] Conditional branch is represented using I-type format: bne $s0, $s1, Label is represented as 5 16 17 6 5 5 16-bit offset Current PC + (4 * offset) determines the branch target Label This is called PC-relative addressing.
6 .Revisiting machine language of MIPS # starts from 80000 Loop: add $t1, $s3, $s3 What does this program add $t1, $t1, $t1 do? add $t1, $t1, $s6 lw $t0, 0($t1) bne $t0, $s5, Exit add $s3, $s3, $s4 j Loop Machine Exit: language version 6 5 5 5 5 6 80000 0 19 19 9 0 32 R-type 80004 0 9 9 9 0 32 R-type 80008 0 9 22 9 0 32 R-type 80012 35 9 8 0 I-type 80016 5 8 21 2 (why?) I-type 80020 0 19 20 19 0 32 R-type 80024 2 20000 (why?) J-type 80028

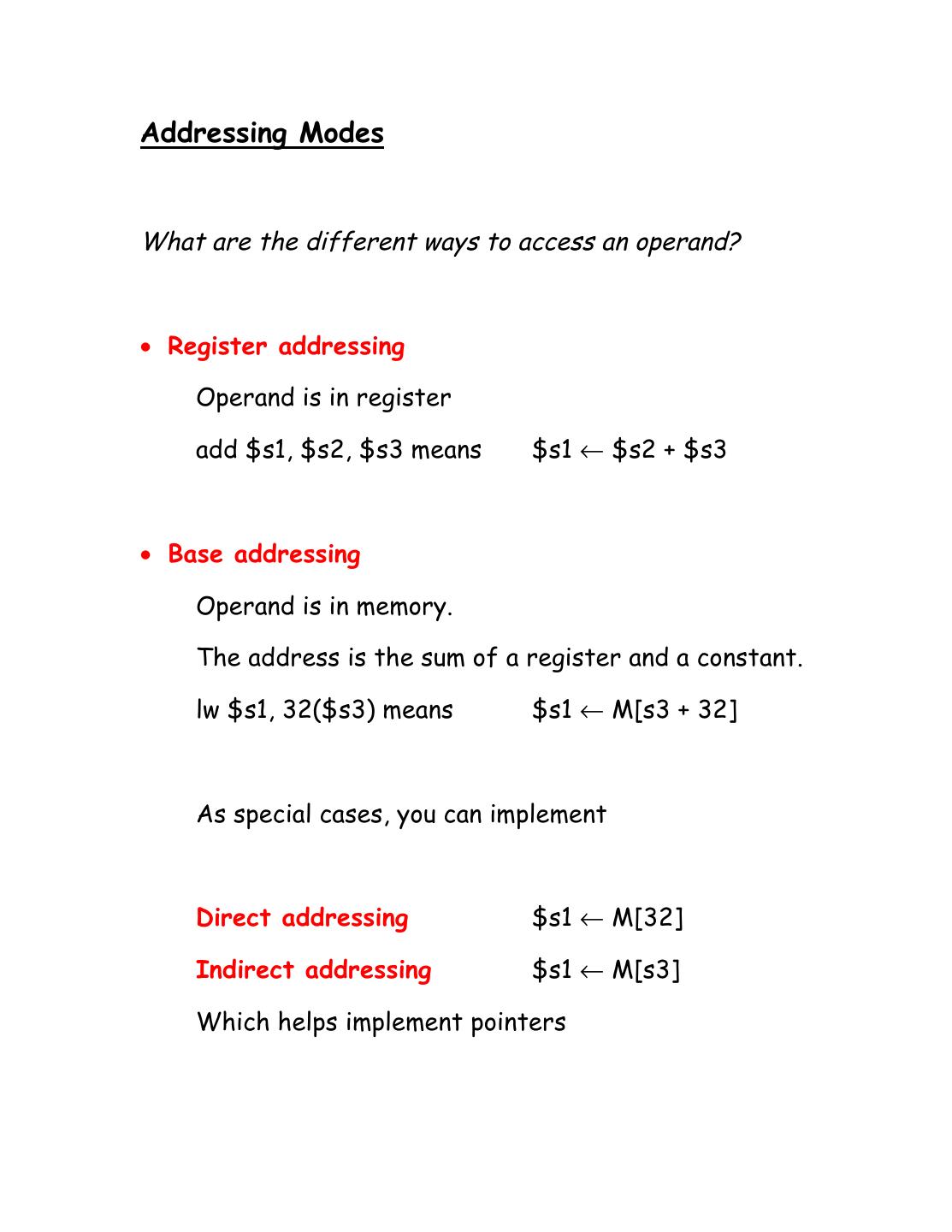

7 .Addressing Modes What are the different ways to access an operand? • Register addressing Operand is in register add $s1, $s2, $s3 means $s1 ← $s2 + $s3 • Base addressing Operand is in memory. The address is the sum of a register and a constant. lw $s1, 32($s3) means $s1 ← M[s3 + 32] As special cases, you can implement Direct addressing $s1 ← M[32] Indirect addressing $s1 ← M[s3] Which helps implement pointers

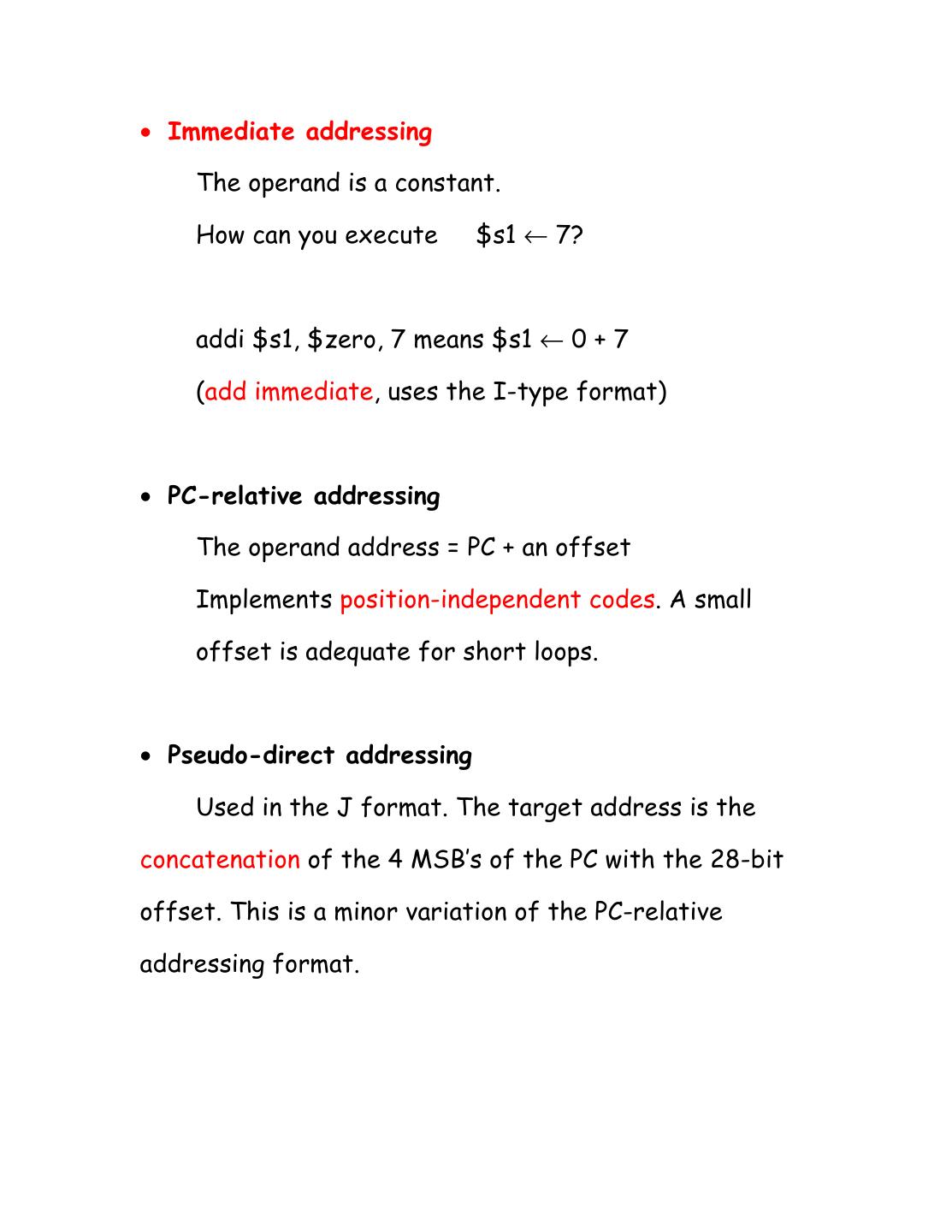

8 .• Immediate addressing The operand is a constant. How can you execute $s1 ← 7? addi $s1, $zero, 7 means $s1 ← 0 + 7 (add immediate, uses the I-type format) • PC-relative addressing The operand address = PC + an offset Implements position-independent codes. A small offset is adequate for short loops. • Pseudo-direct addressing Used in the J format. The target address is the concatenation of the 4 MSB’s of the PC with the 28-bit offset. This is a minor variation of the PC-relative addressing format.
