07-Parallel Memory Systems – Consistency

1 .CSC2/458 Parallel and Distributed Systems Parallel Memory Systems – Consistency Sreepathi Pai February 8, 2018 URCS 

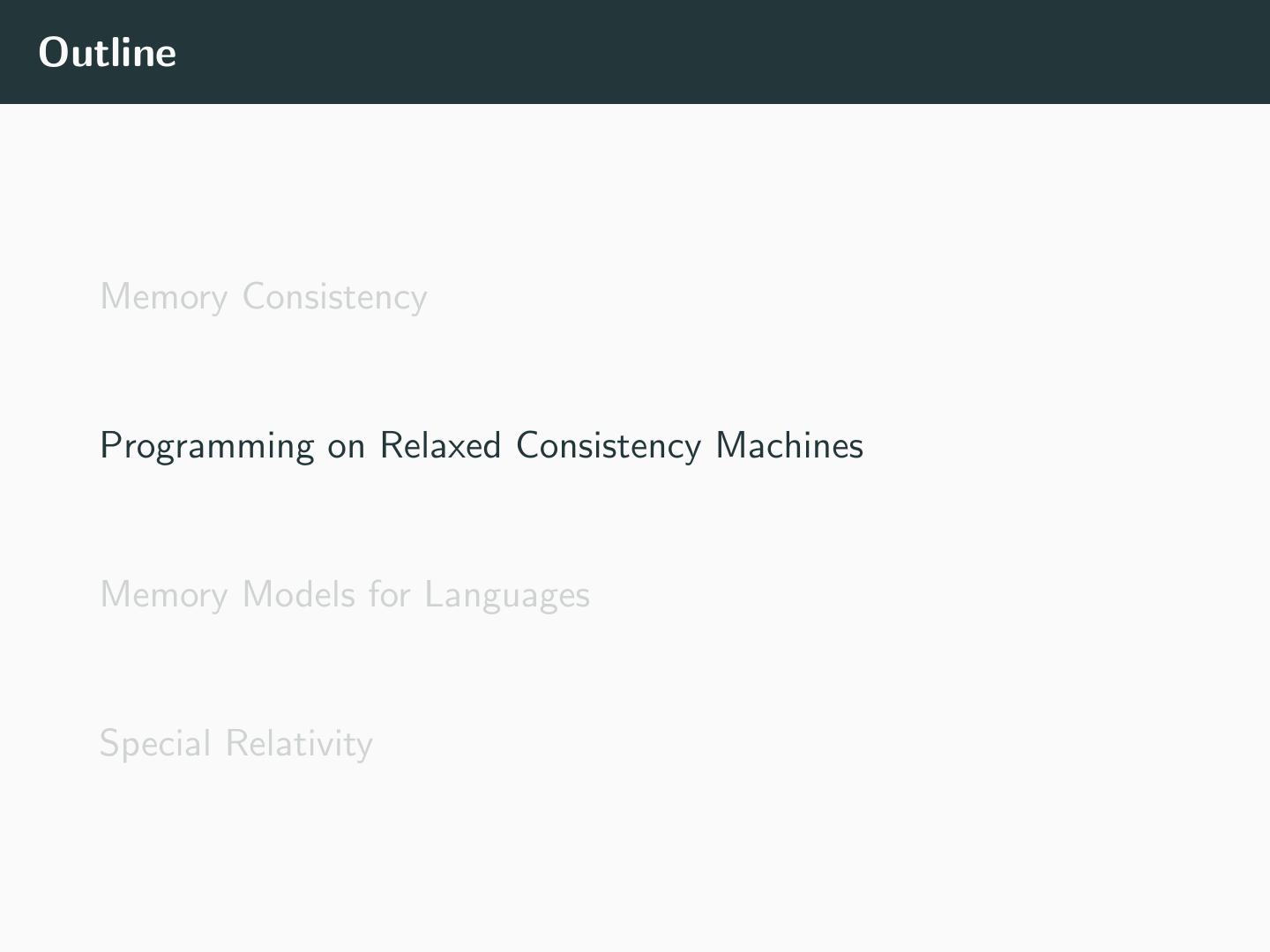

2 .Outline Memory Consistency Programming on Relaxed Consistency Machines Memory Models for Languages Special Relativity 

3 .Outline Memory Consistency Programming on Relaxed Consistency Machines Memory Models for Languages Special Relativity 

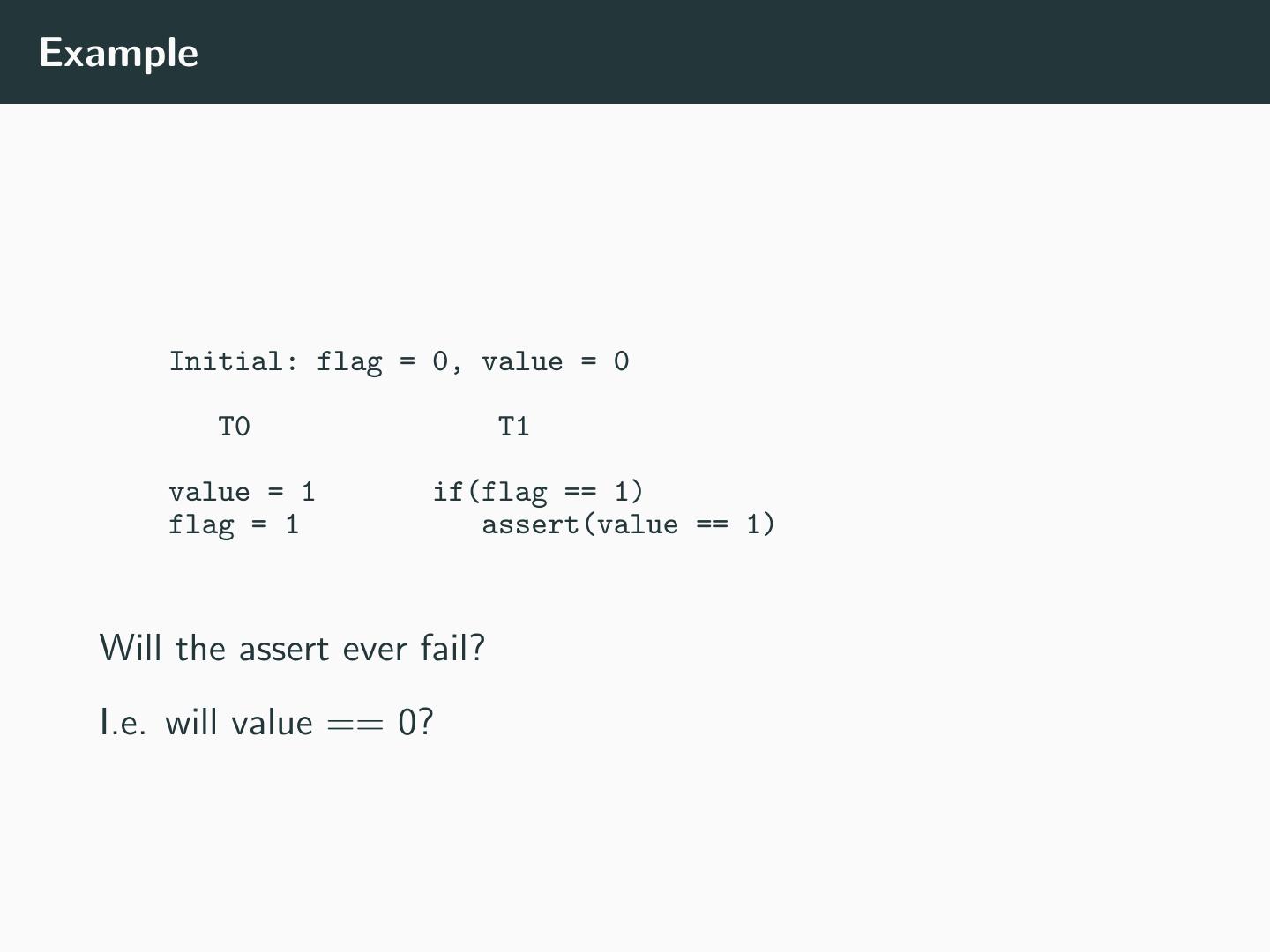

4 .Example Initial: flag = 0, value = 0 T0 T1 value = 1 if(flag == 1) flag = 1 assert(value == 1) Will the assert ever fail? I.e. will value == 0? 

5 .Hardware Reorderings • Out-of-order processors can reorder independent instructions • Independent: • Not data-dependent • Not control-dependent 

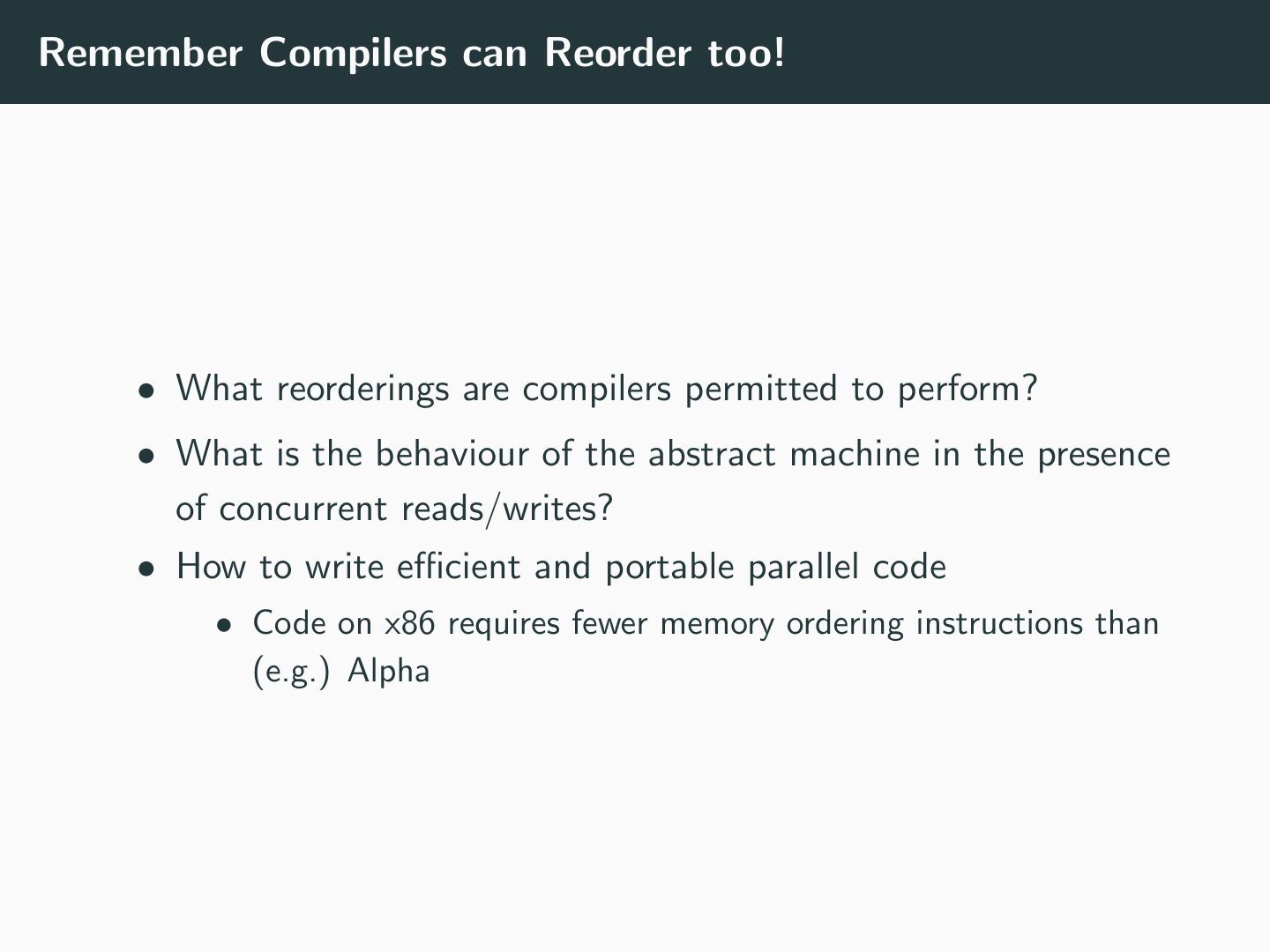

6 .Compiler Reorderings • Optimizations that change order: • Code hoisting • Code sinking • Moving values to registers 

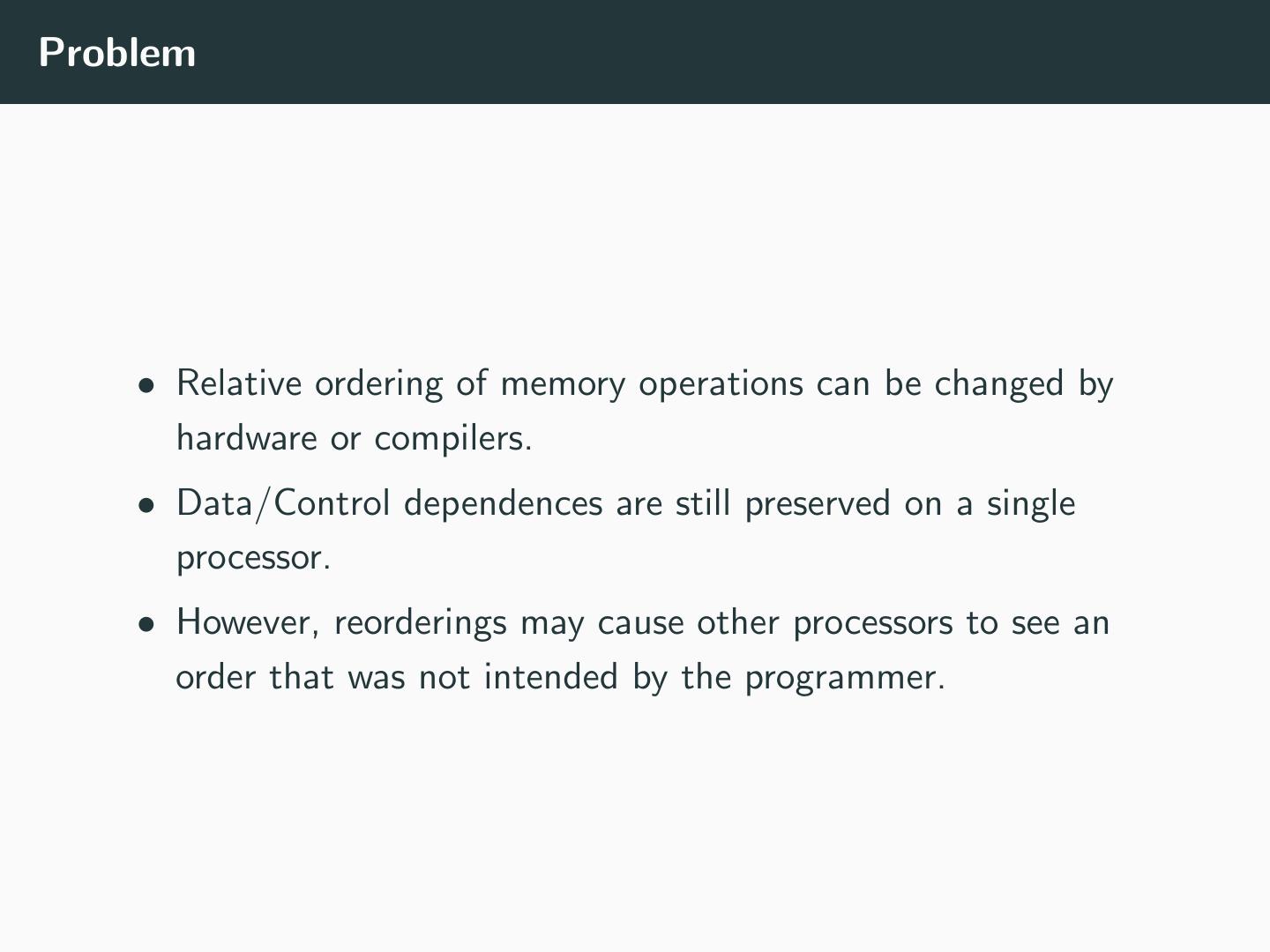

7 .Problem • Relative ordering of memory operations can be changed by hardware or compilers. • Data/Control dependences are still preserved on a single processor. • However, reorderings may cause other processors to see an order that was not intended by the programmer. 

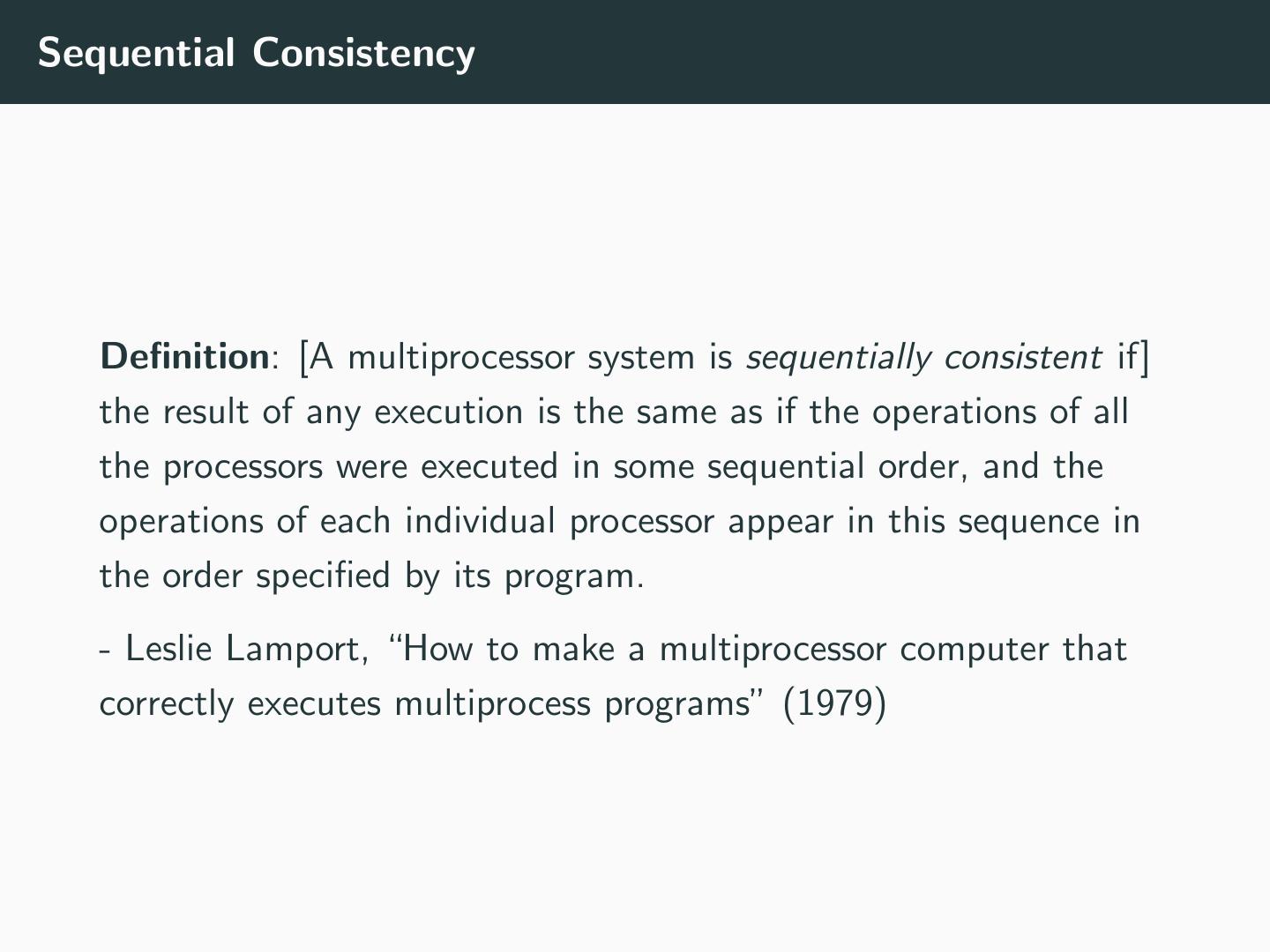

8 .Sequential Consistency Definition: [A multiprocessor system is sequentially consistent if] the result of any execution is the same as if the operations of all the processors were executed in some sequential order, and the operations of each individual processor appear in this sequence in the order specified by its program. - Leslie Lamport, “How to make a multiprocessor computer that correctly executes multiprocess programs” (1979) 

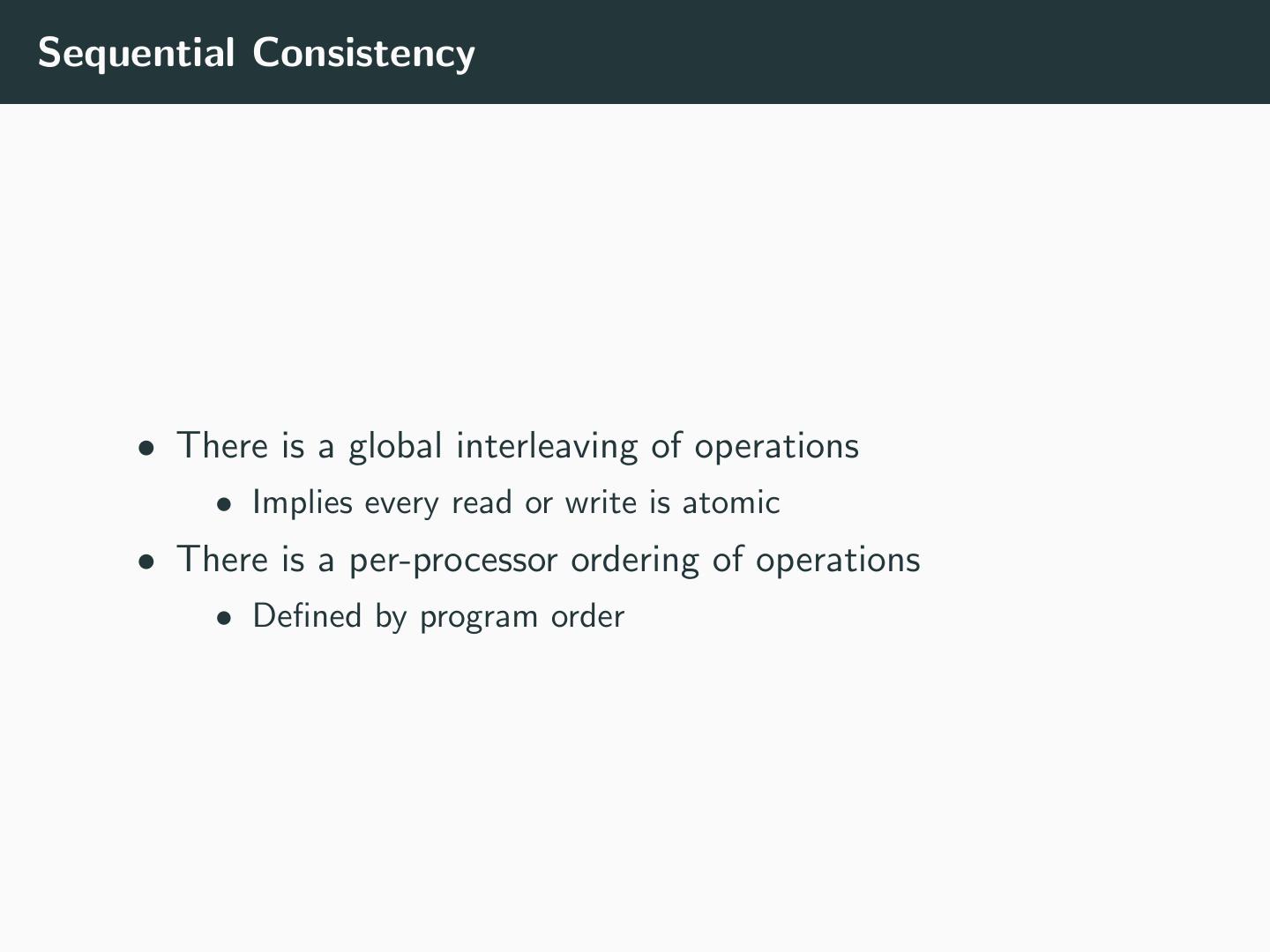

9 .Sequential Consistency • There is a global interleaving of operations • Implies every read or write is atomic • There is a per-processor ordering of operations • Defined by program order 

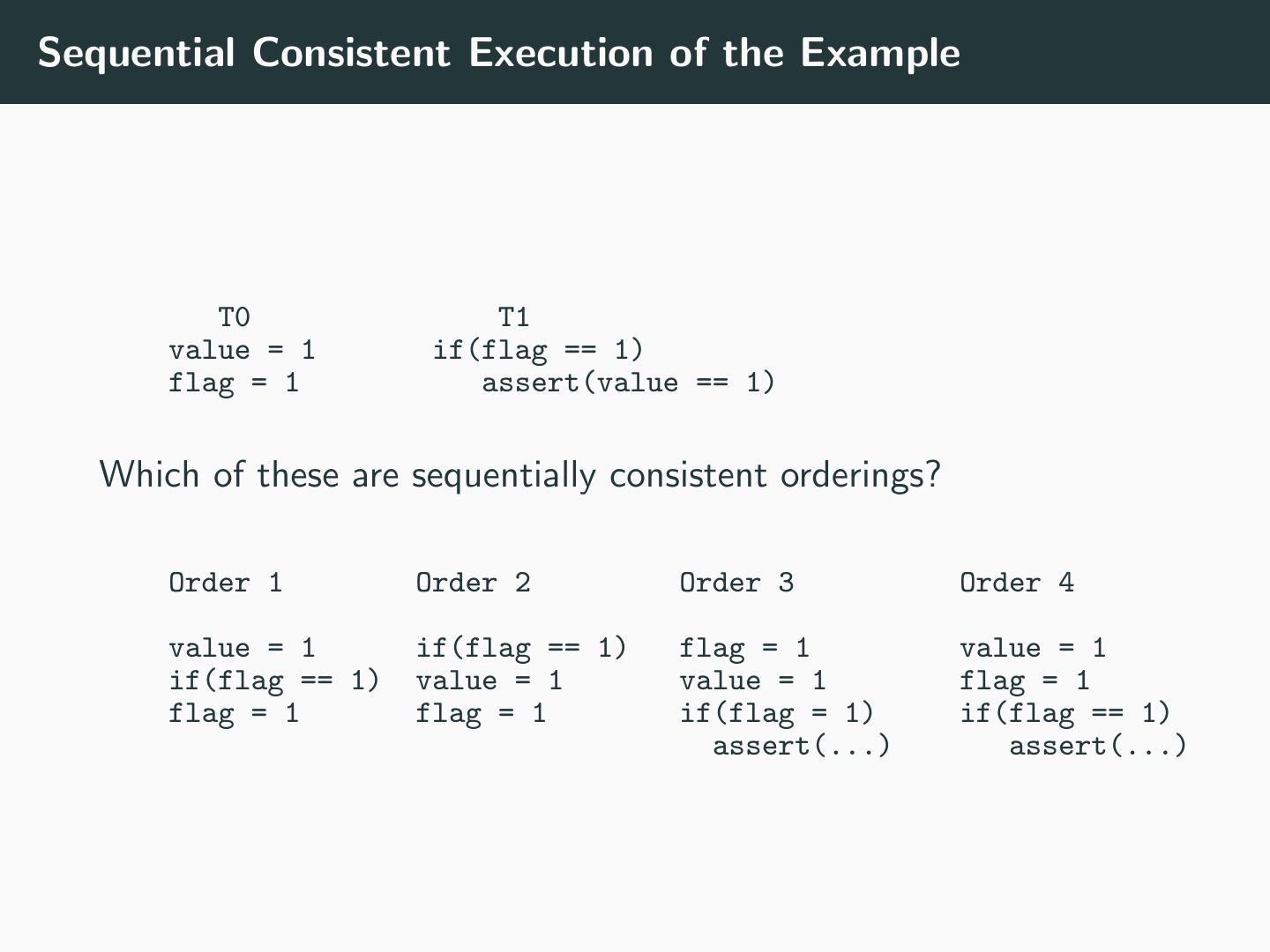

10 .Sequential Consistent Execution of the Example T0 T1 value = 1 if(flag == 1) flag = 1 assert(value == 1) Which of these are sequentially consistent orderings? Order 1 Order 2 Order 3 Order 4 value = 1 if(flag == 1) flag = 1 value = 1 if(flag == 1) value = 1 value = 1 flag = 1 flag = 1 flag = 1 if(flag = 1) if(flag == 1) assert(...) assert(...) 

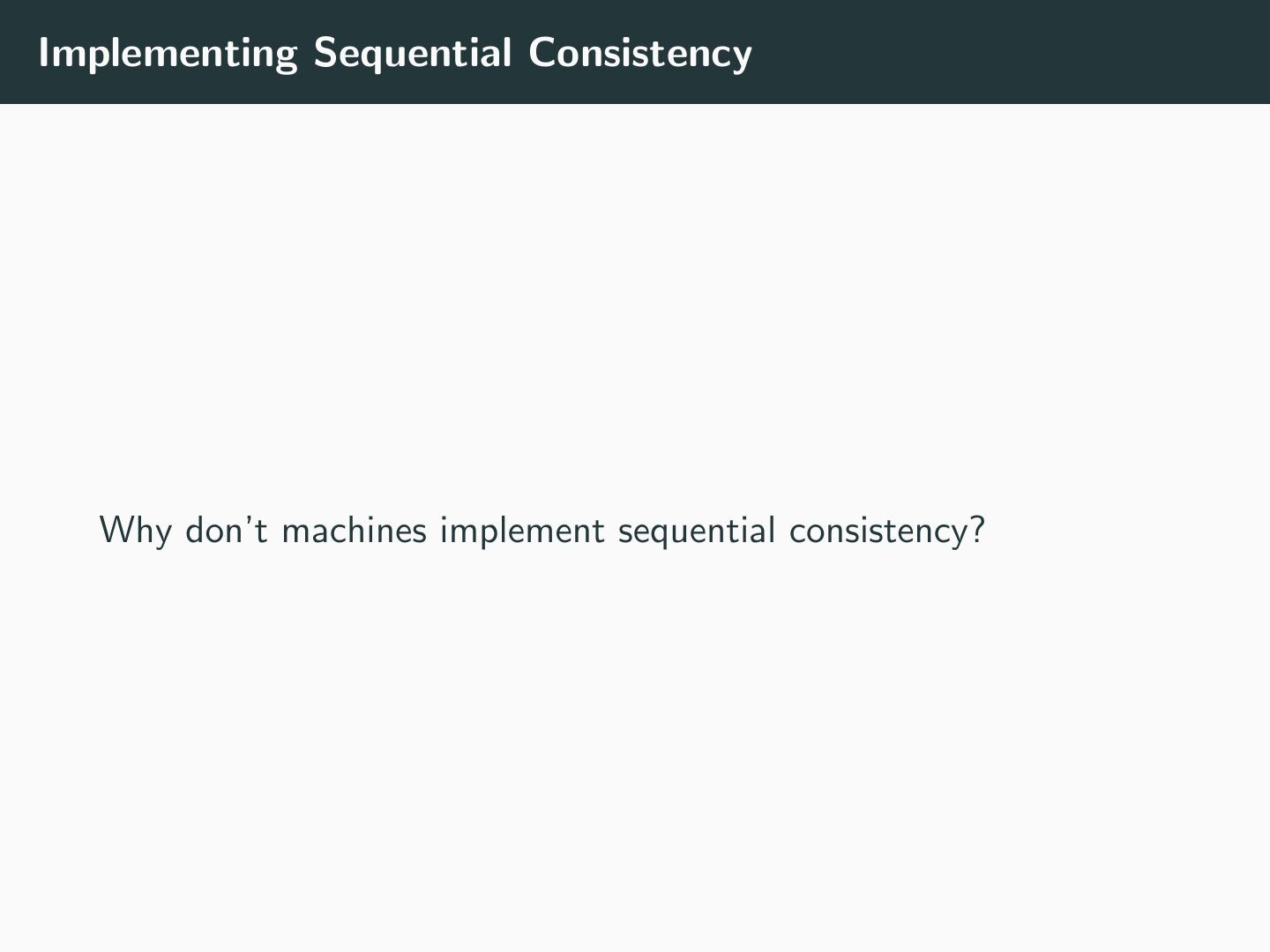

11 .Implementing Sequential Consistency Why don’t machines implement sequential consistency? 

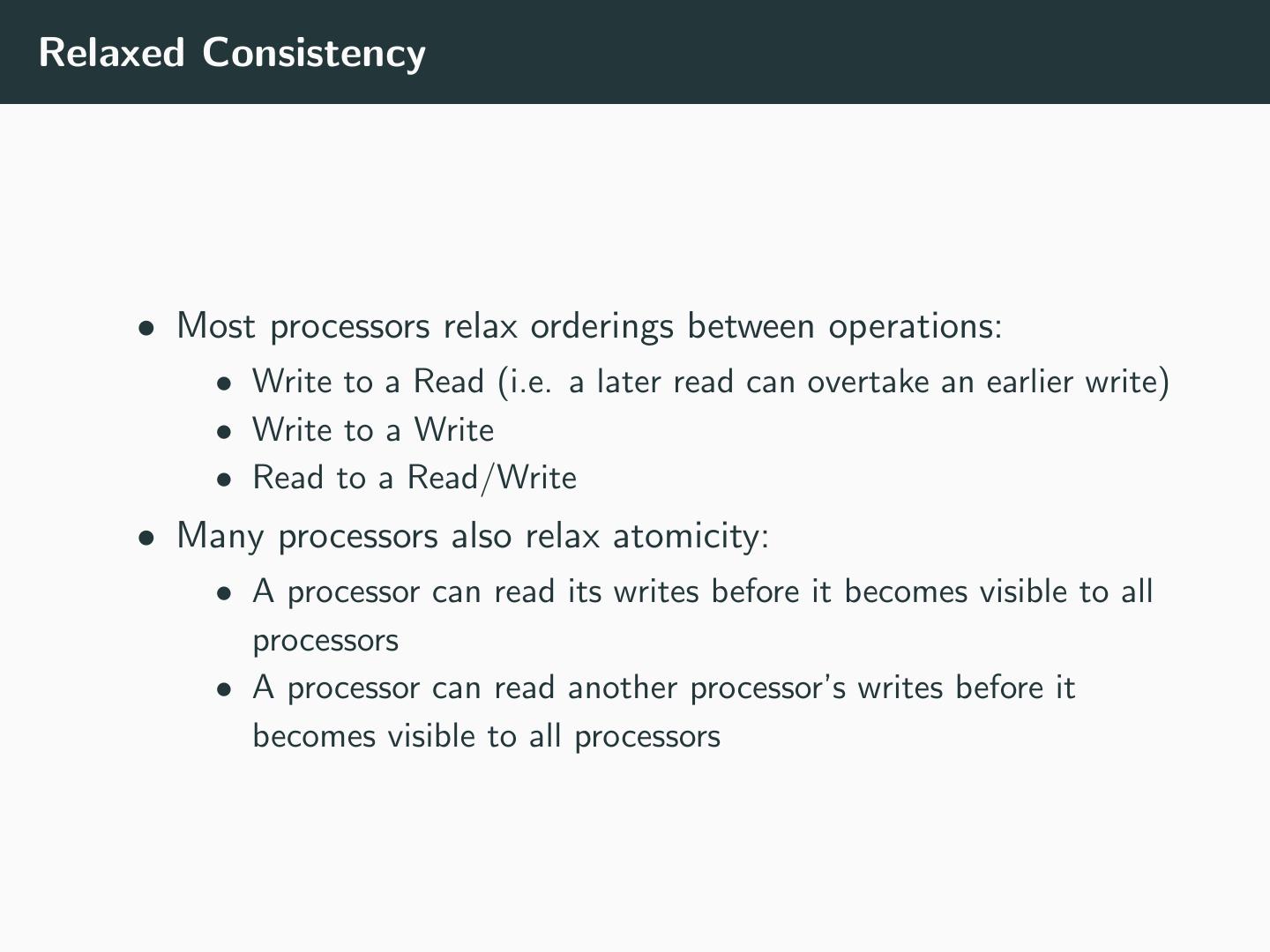

12 .Relaxed Consistency • Most processors relax orderings between operations: • Write to a Read (i.e. a later read can overtake an earlier write) • Write to a Write • Read to a Read/Write • Many processors also relax atomicity: • A processor can read its writes before it becomes visible to all processors • A processor can read another processor’s writes before it becomes visible to all processors 

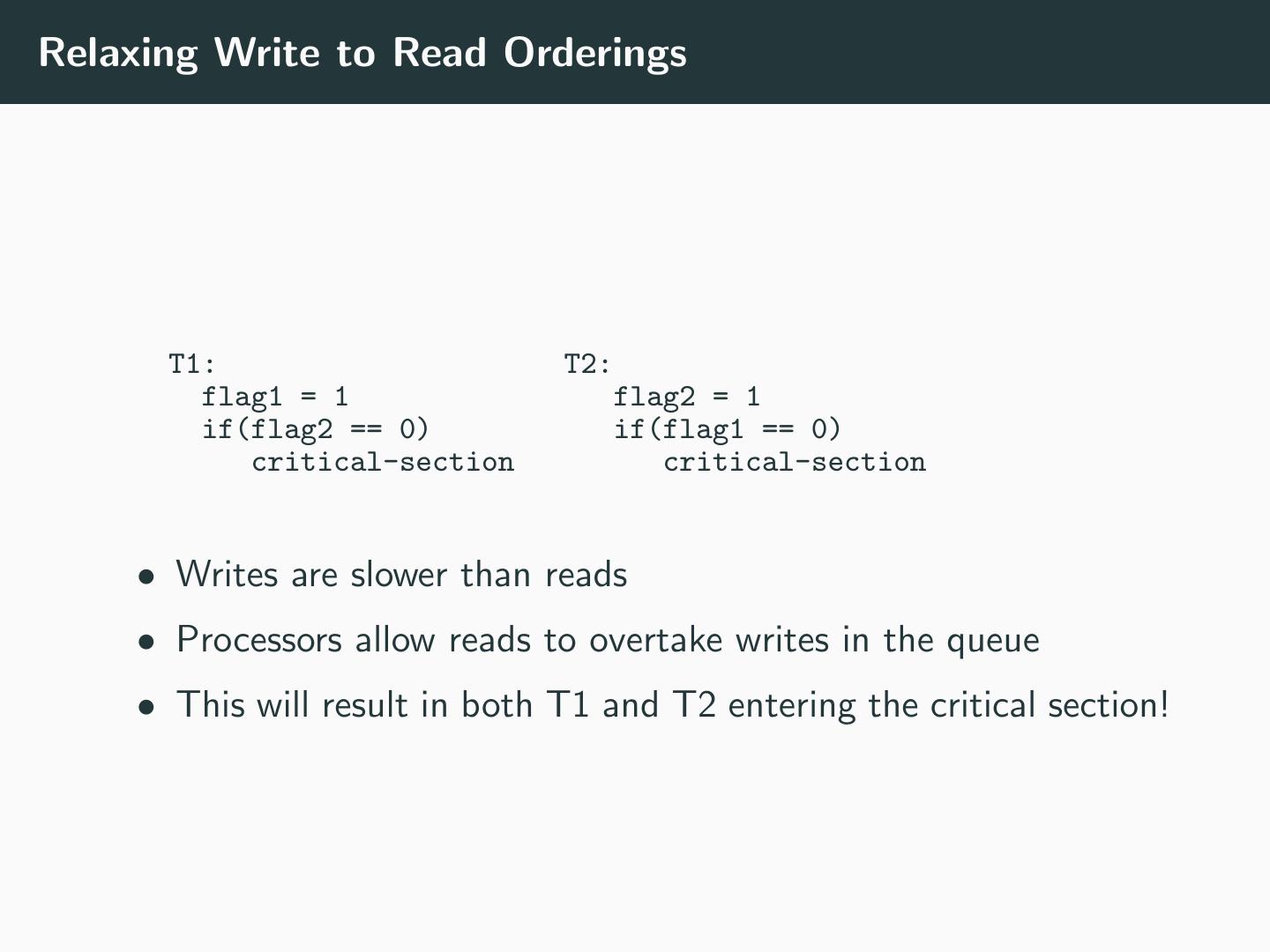

13 .Relaxing Write to Read Orderings T1: T2: flag1 = 1 flag2 = 1 if(flag2 == 0) if(flag1 == 0) critical-section critical-section • Writes are slower than reads • Processors allow reads to overtake writes in the queue • This will result in both T1 and T2 entering the critical section! 

14 .Relaxing Write to Write Orderings T0 T1 push: pop: data = x while(head == NULL); head = &data; assert(*head == x); // i.e. read data • data may miss in T0 cache • head may hit in T0 cache and overtake the write to data in T0 • pop may read non-null head and possibly inconsistent value of data • e.g. T1 had data cached but not yet invalidated 

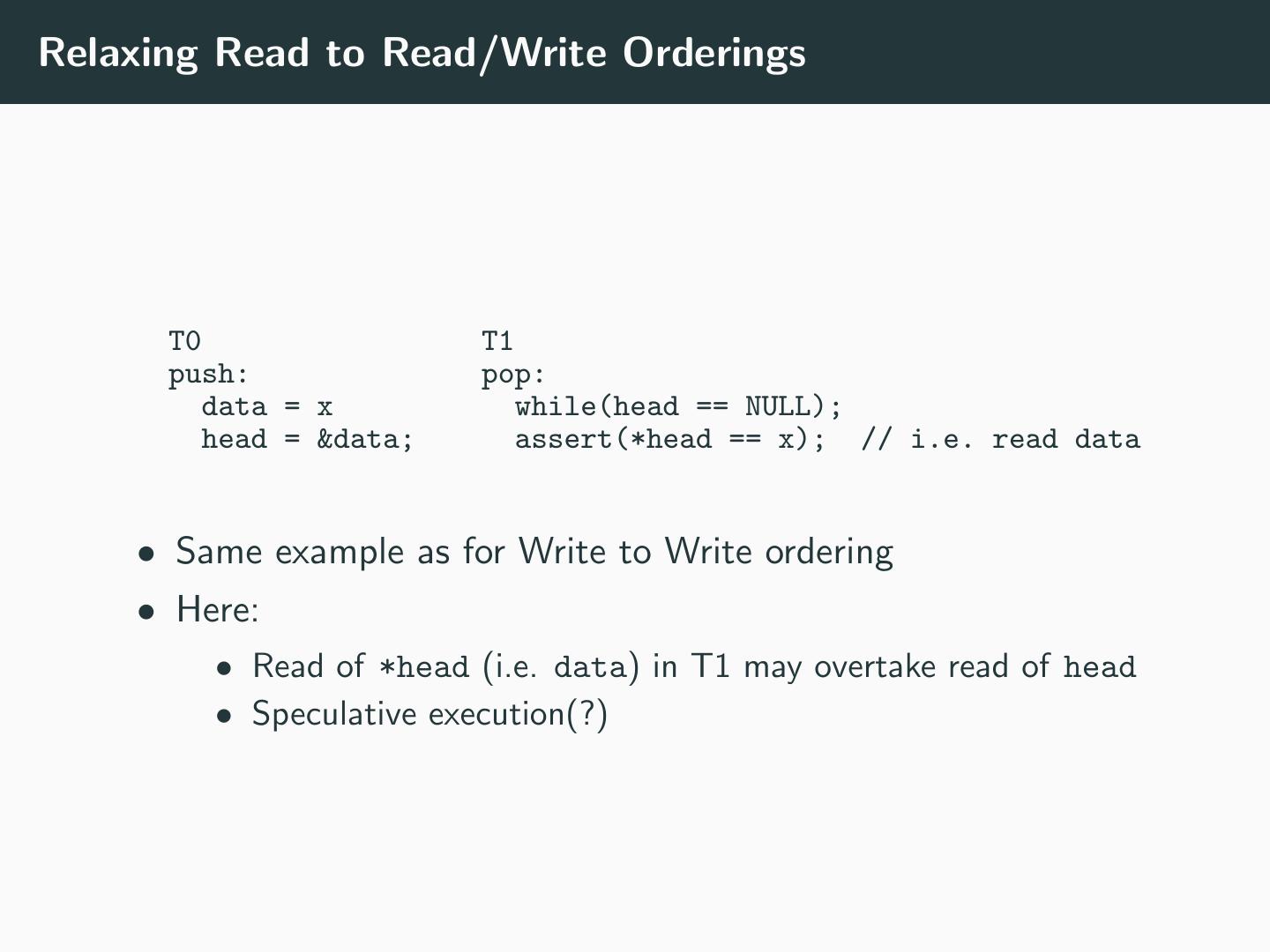

15 .Relaxing Read to Read/Write Orderings T0 T1 push: pop: data = x while(head == NULL); head = &data; assert(*head == x); // i.e. read data • Same example as for Write to Write ordering • Here: • Read of *head (i.e. data) in T1 may overtake read of head • Speculative execution(?) 

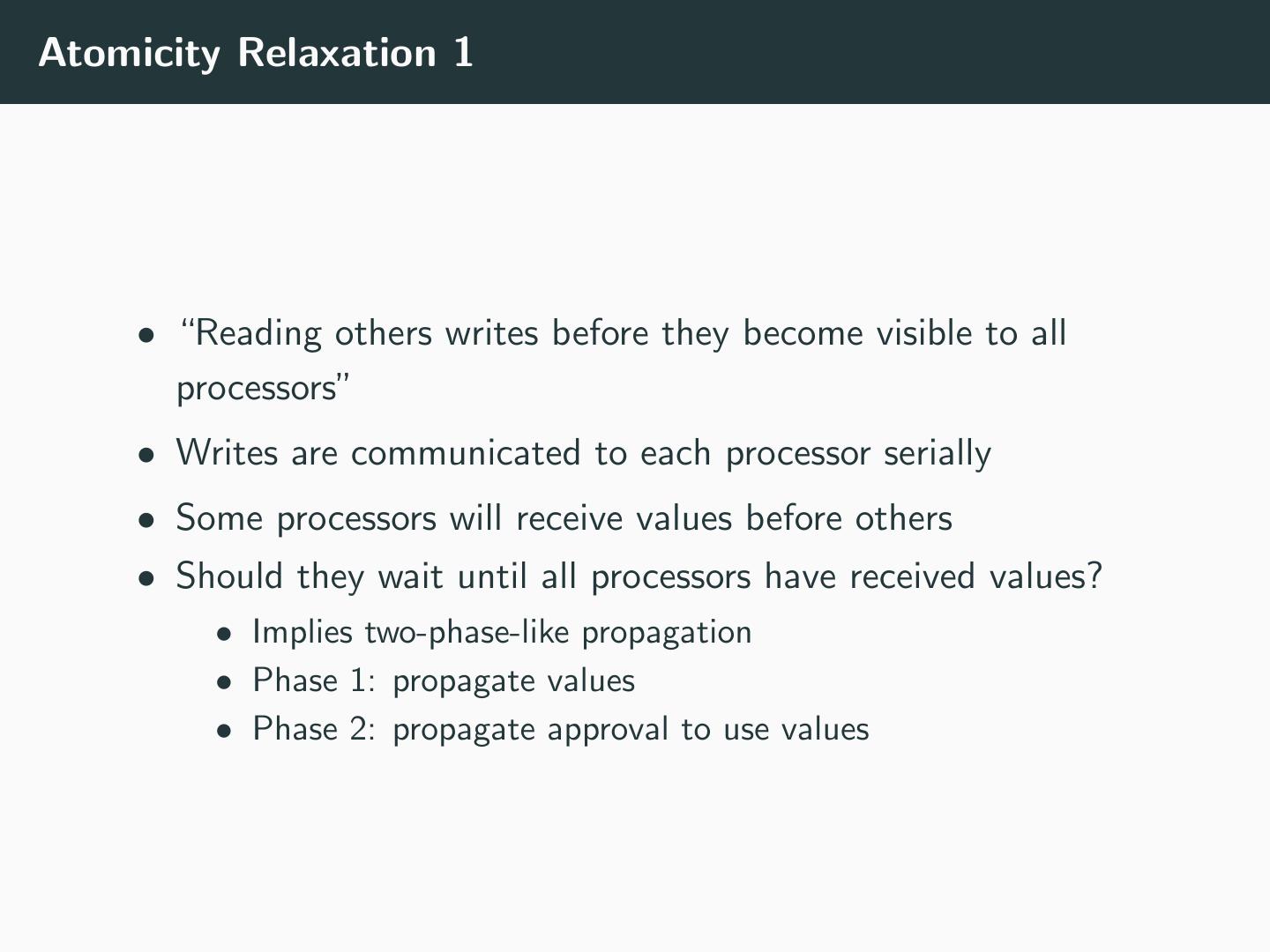

16 .Atomicity Relaxation 1 • “Reading others writes before they become visible to all processors” • Writes are communicated to each processor serially • Some processors will receive values before others • Should they wait until all processors have received values? • Implies two-phase-like propagation • Phase 1: propagate values • Phase 2: propagate approval to use values 

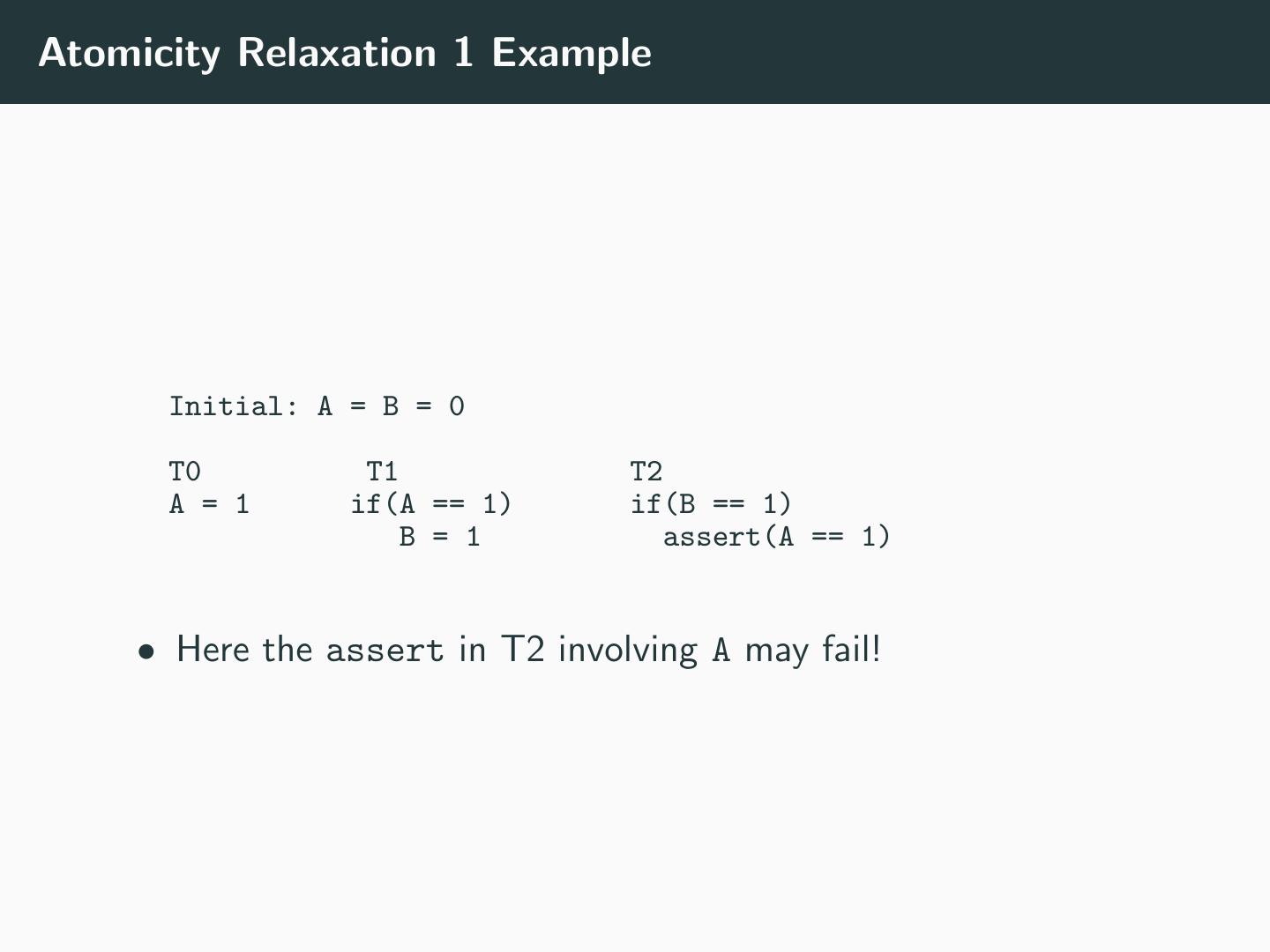

17 .Atomicity Relaxation 1 Example Initial: A = B = 0 T0 T1 T2 A = 1 if(A == 1) if(B == 1) B = 1 assert(A == 1) • Here the assert in T2 involving A may fail! 

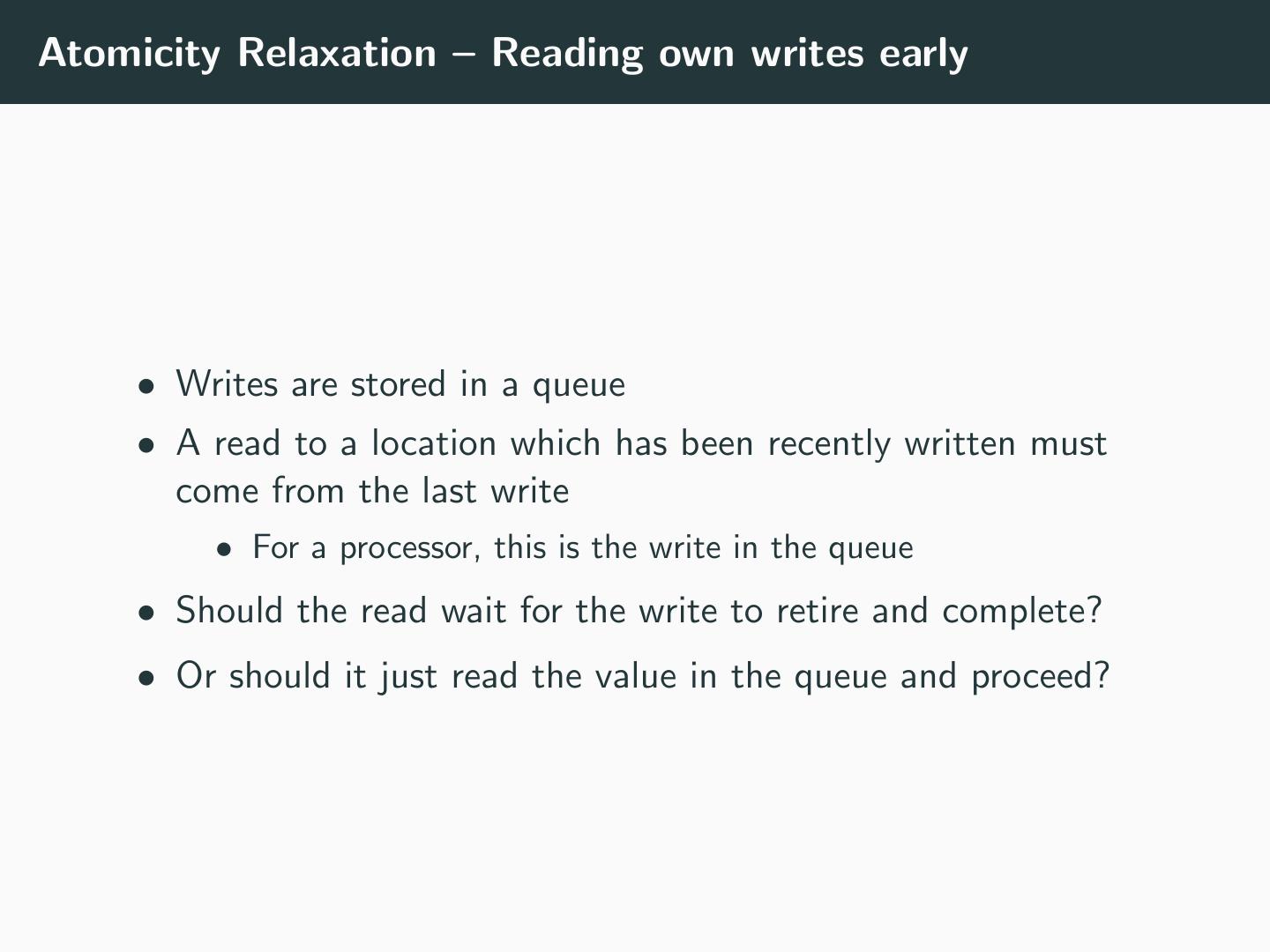

18 .Atomicity Relaxation – Reading own writes early • Writes are stored in a queue • A read to a location which has been recently written must come from the last write • For a processor, this is the write in the queue • Should the read wait for the write to retire and complete? • Or should it just read the value in the queue and proceed? 

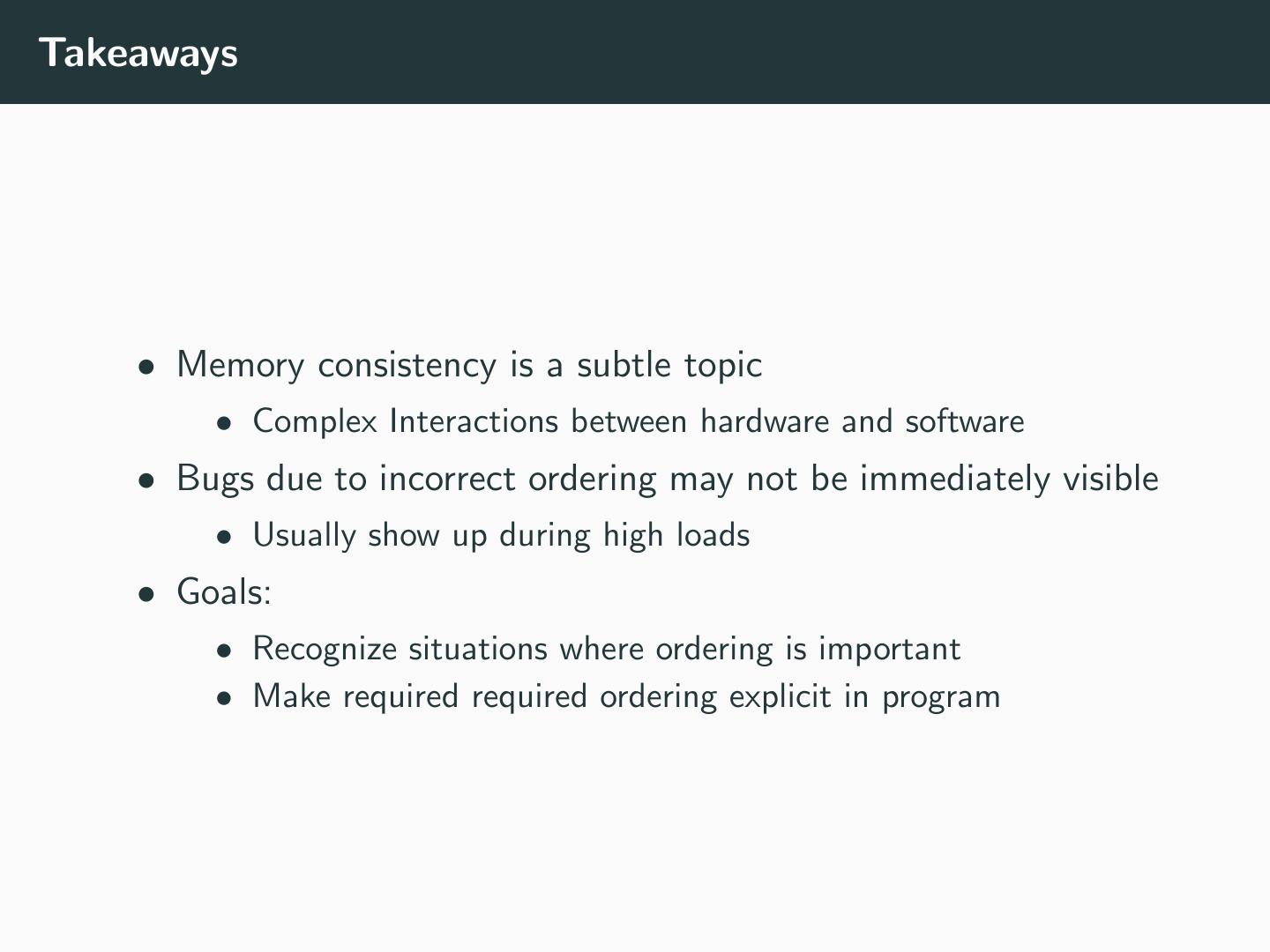

19 .Takeaways • Memory consistency is a subtle topic • Complex Interactions between hardware and software • Bugs due to incorrect ordering may not be immediately visible • Usually show up during high loads • Goals: • Recognize situations where ordering is important • Make required required ordering explicit in program 

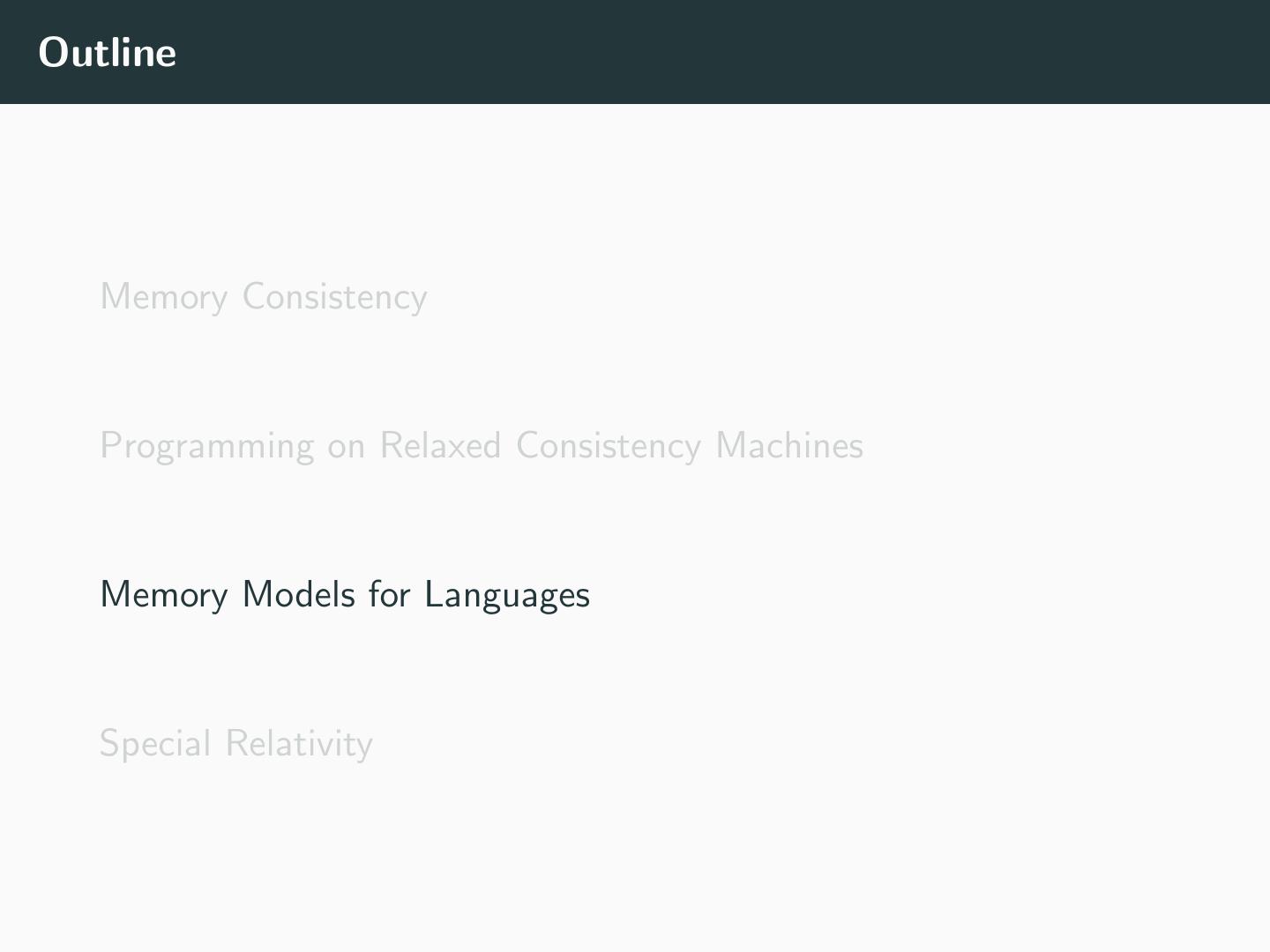

20 .Outline Memory Consistency Programming on Relaxed Consistency Machines Memory Models for Languages Special Relativity 

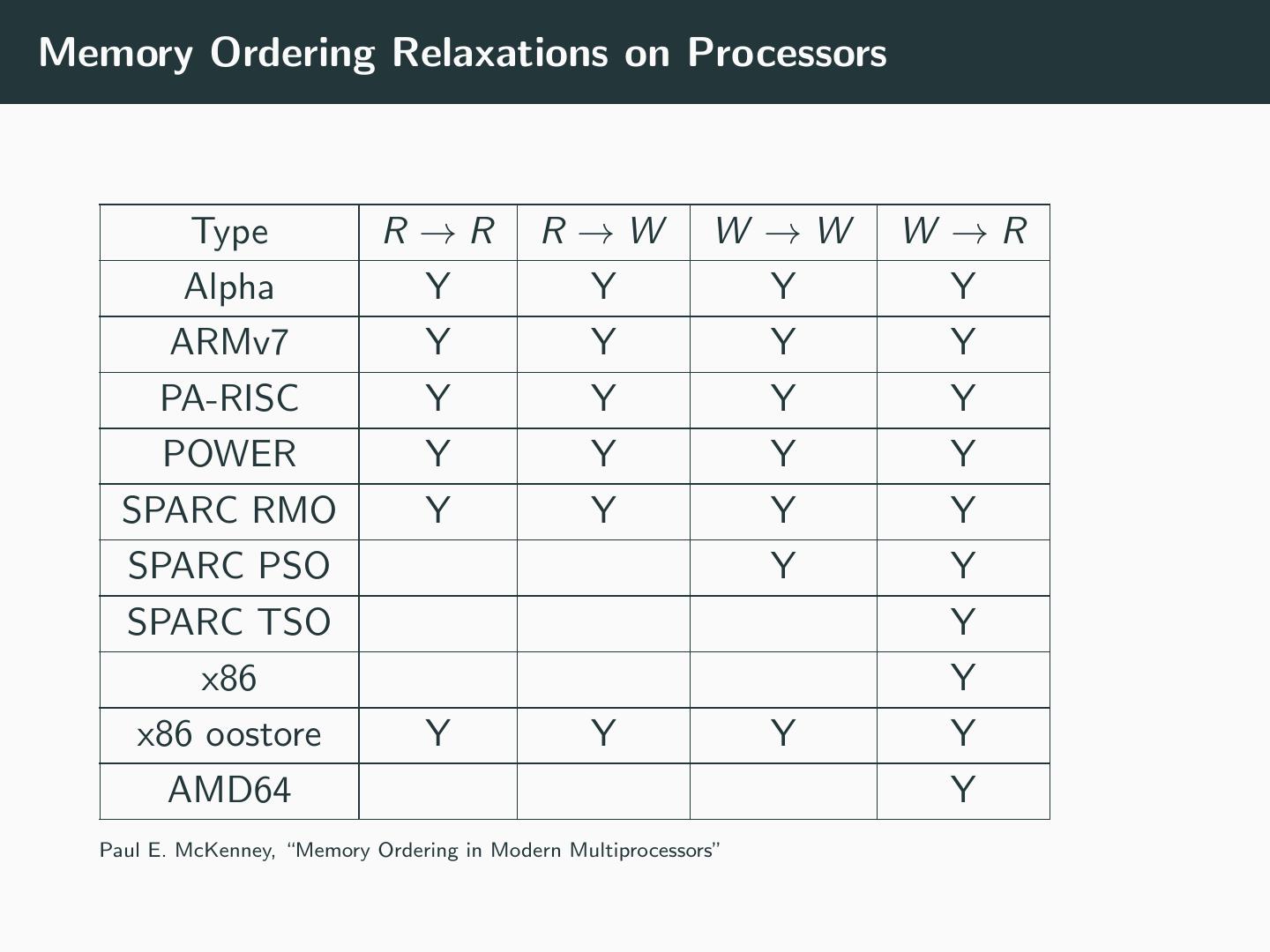

21 .Memory Ordering Relaxations on Processors Type R→R R→W W →W W →R Alpha Y Y Y Y ARMv7 Y Y Y Y PA-RISC Y Y Y Y POWER Y Y Y Y SPARC RMO Y Y Y Y SPARC PSO Y Y SPARC TSO Y x86 Y x86 oostore Y Y Y Y AMD64 Y Paul E. McKenney, “Memory Ordering in Modern Multiprocessors” 

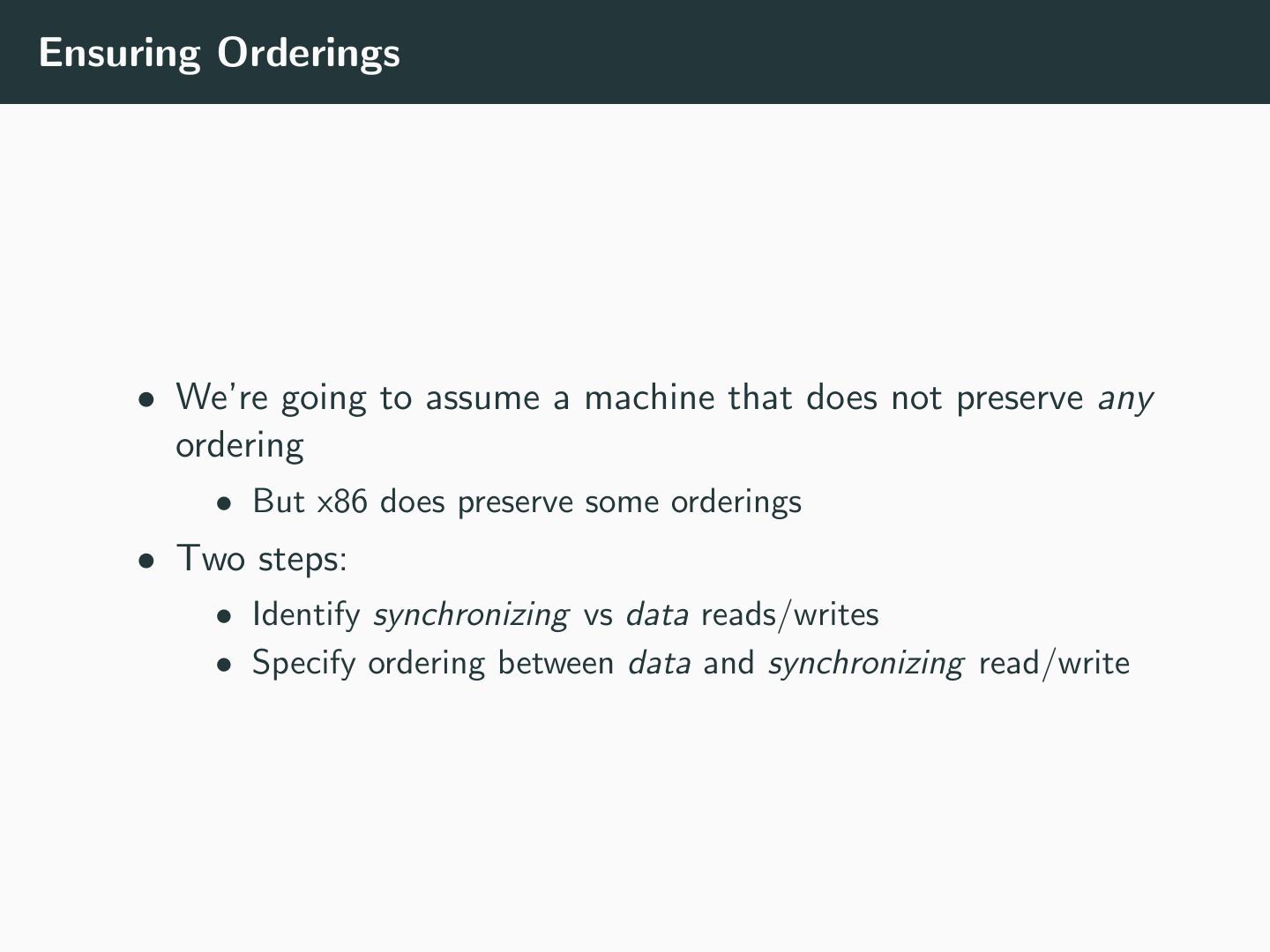

22 .Ensuring Orderings • We’re going to assume a machine that does not preserve any ordering • But x86 does preserve some orderings • Two steps: • Identify synchronizing vs data reads/writes • Specify ordering between data and synchronizing read/write 

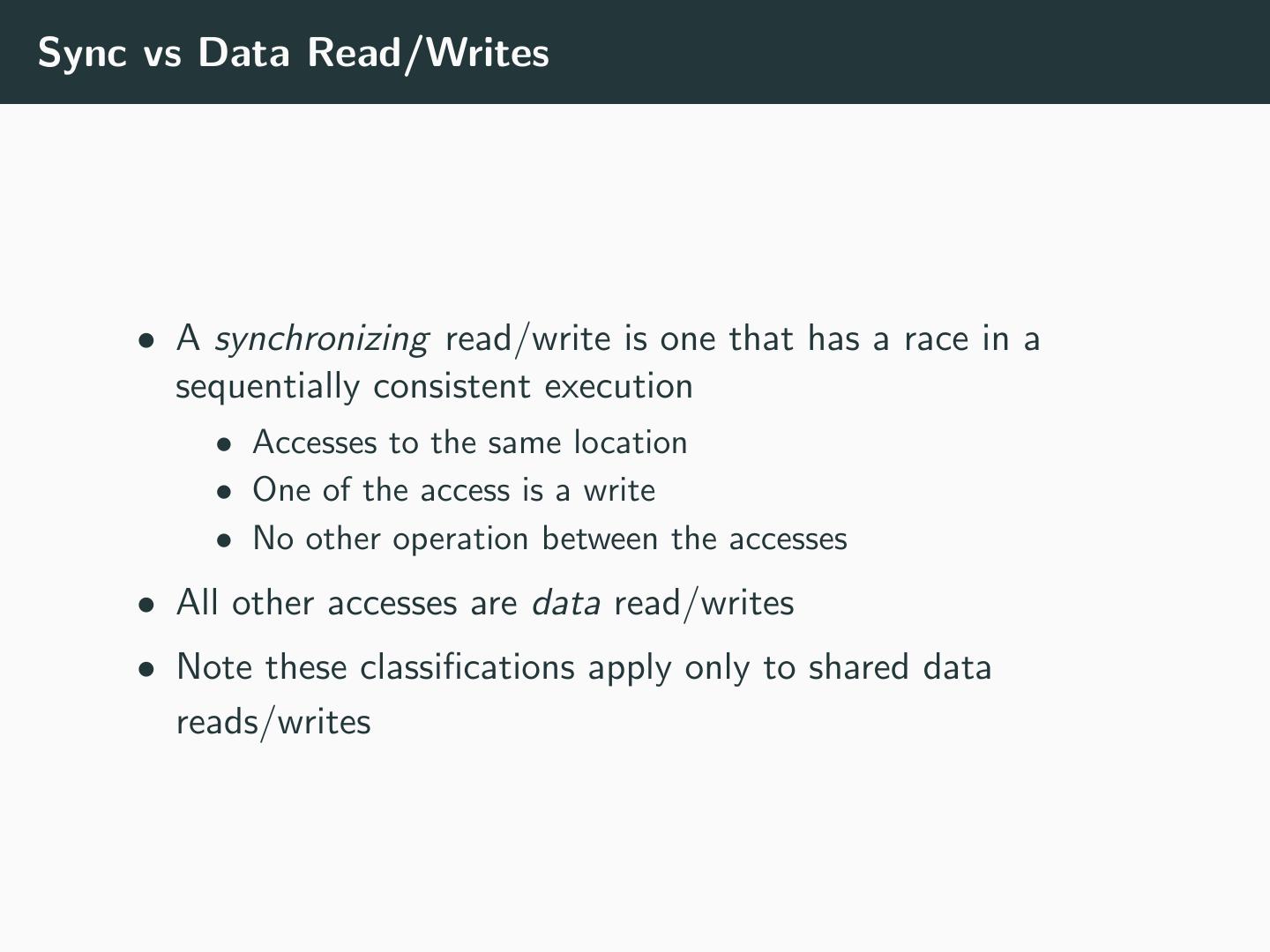

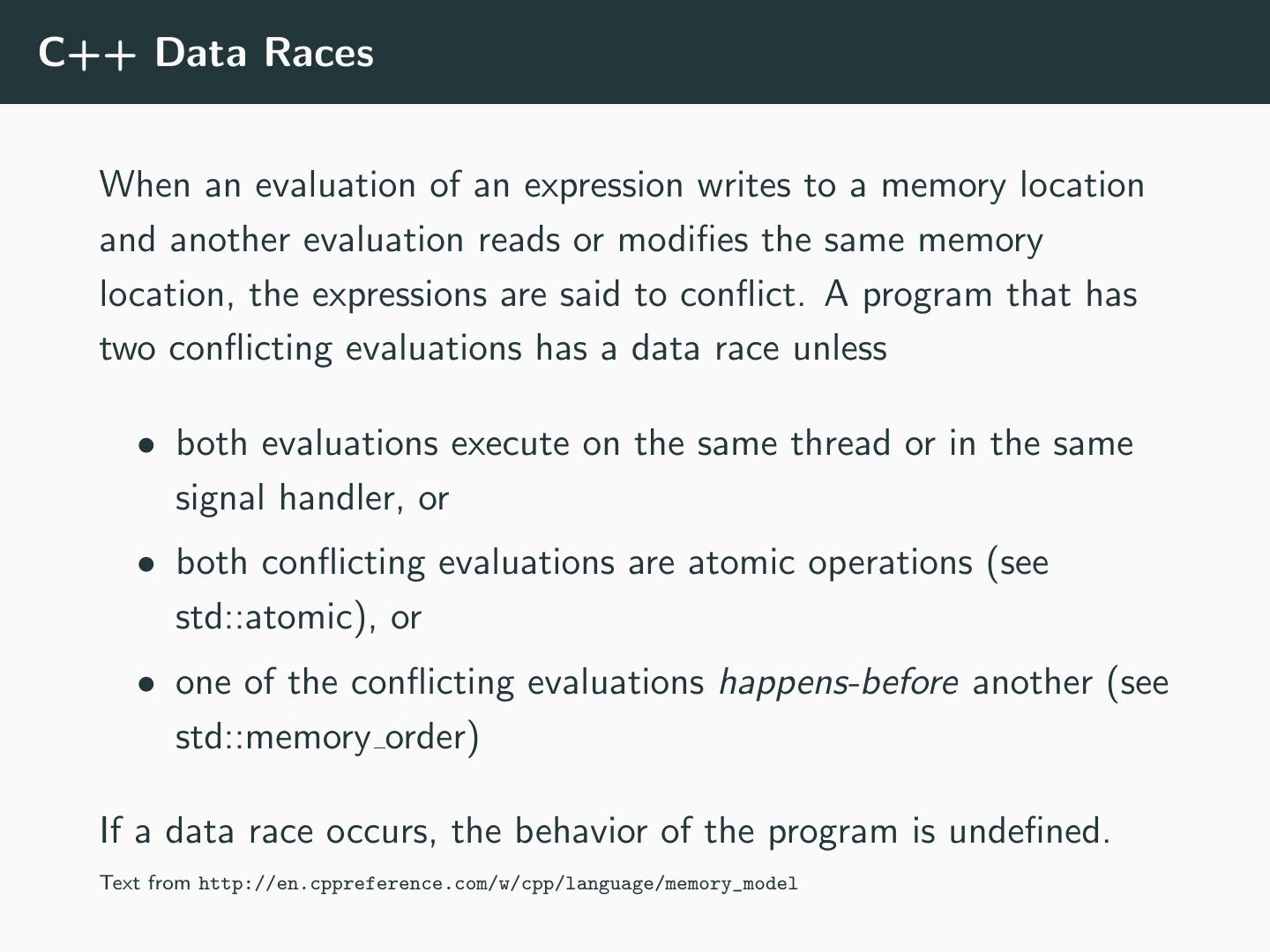

23 .Sync vs Data Read/Writes • A synchronizing read/write is one that has a race in a sequentially consistent execution • Accesses to the same location • One of the access is a write • No other operation between the accesses • All other accesses are data read/writes • Note these classifications apply only to shared data reads/writes 

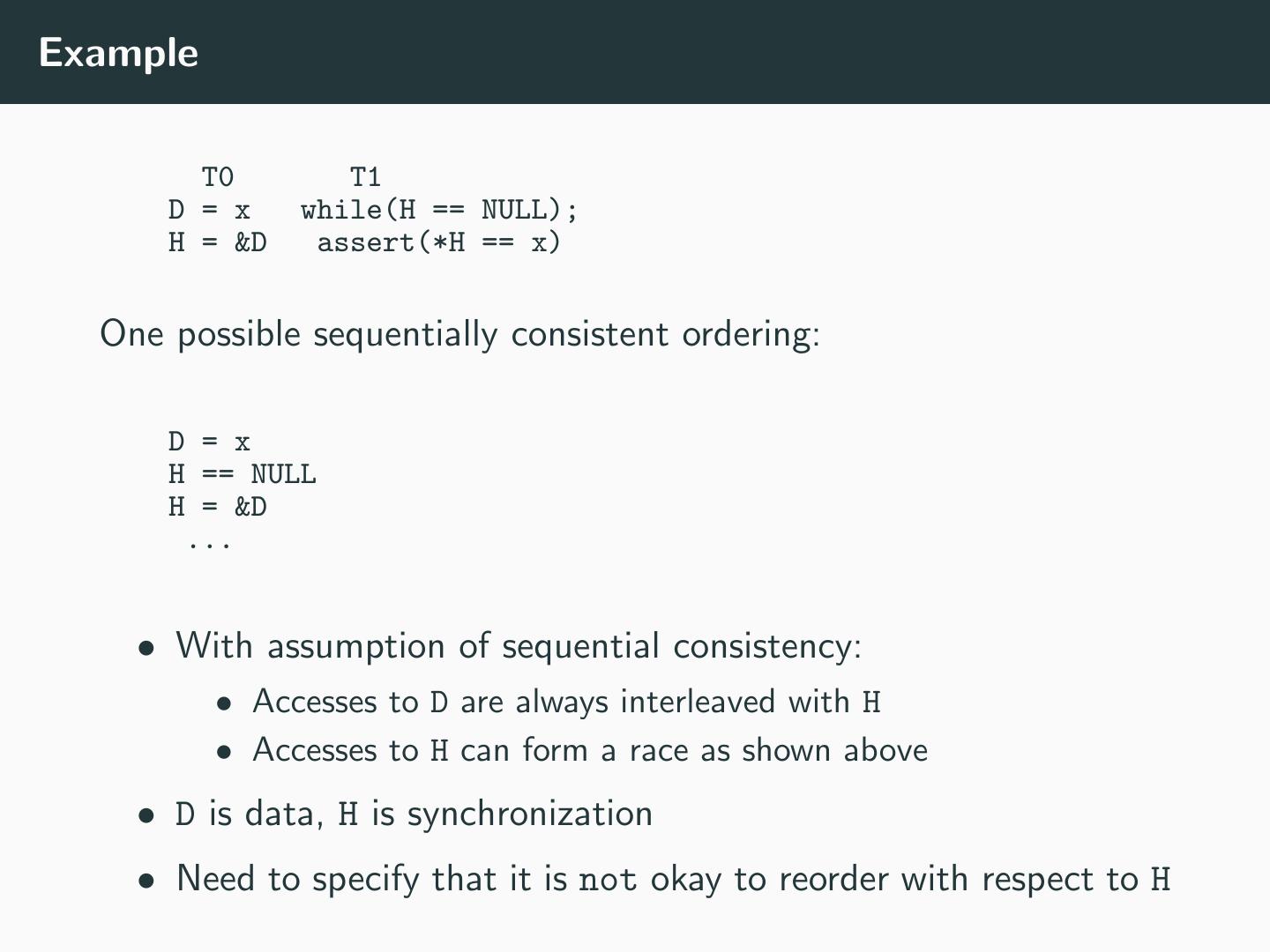

24 .Example T0 T1 D = x while(H == NULL); H = &D assert(*H == x) One possible sequentially consistent ordering: D = x H == NULL H = &D ... • With assumption of sequential consistency: • Accesses to D are always interleaved with H • Accesses to H can form a race as shown above • D is data, H is synchronization • Need to specify that it is not okay to reorder with respect to H 

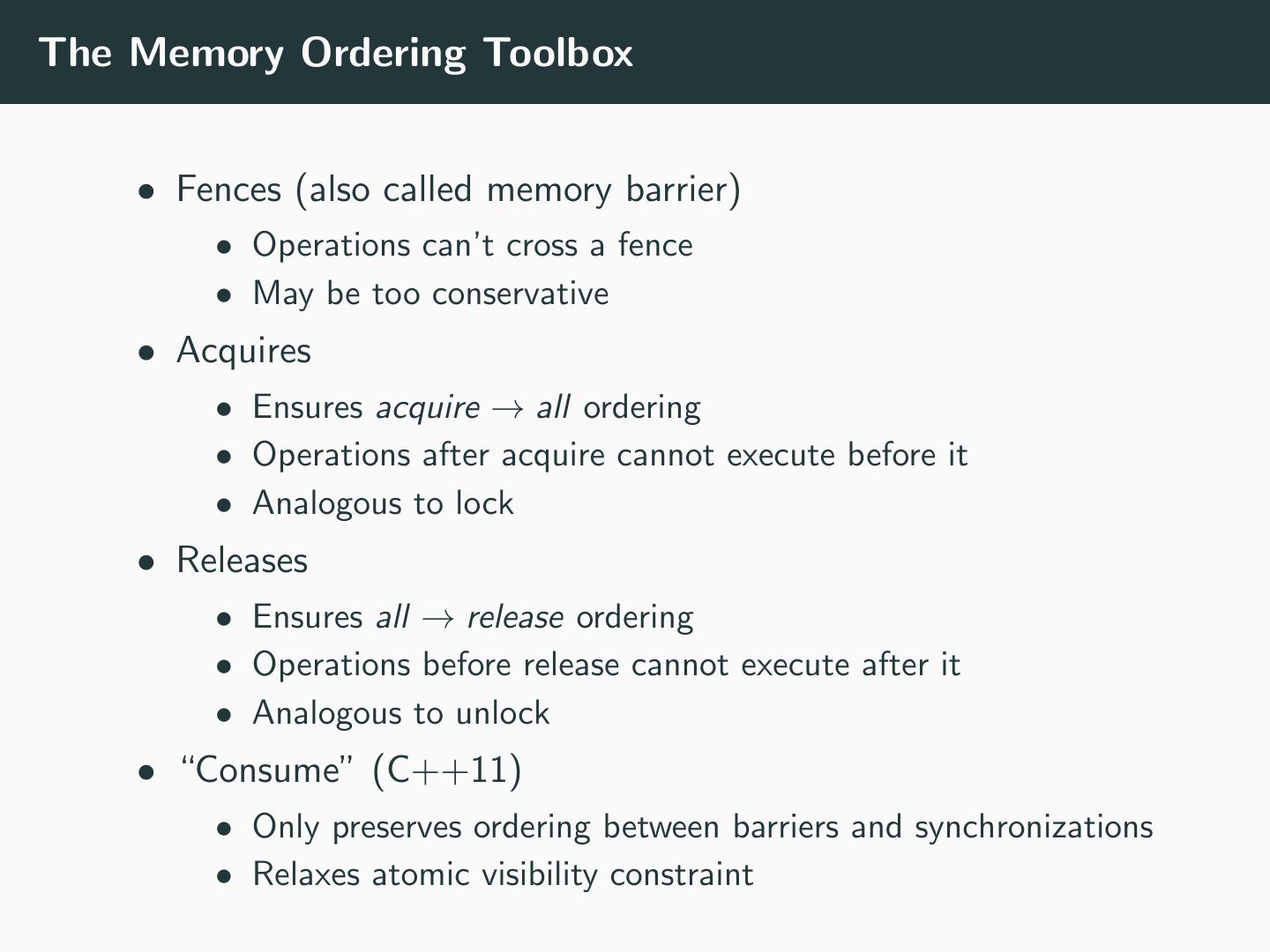

25 .The Memory Ordering Toolbox • Fences (also called memory barrier) • Operations can’t cross a fence • May be too conservative • Acquires • Ensures acquire → all ordering • Operations after acquire cannot execute before it • Analogous to lock • Releases • Ensures all → release ordering • Operations before release cannot execute after it • Analogous to unlock • “Consume” (C++11) • Only preserves ordering between barriers and synchronizations • Relaxes atomic visibility constraint 

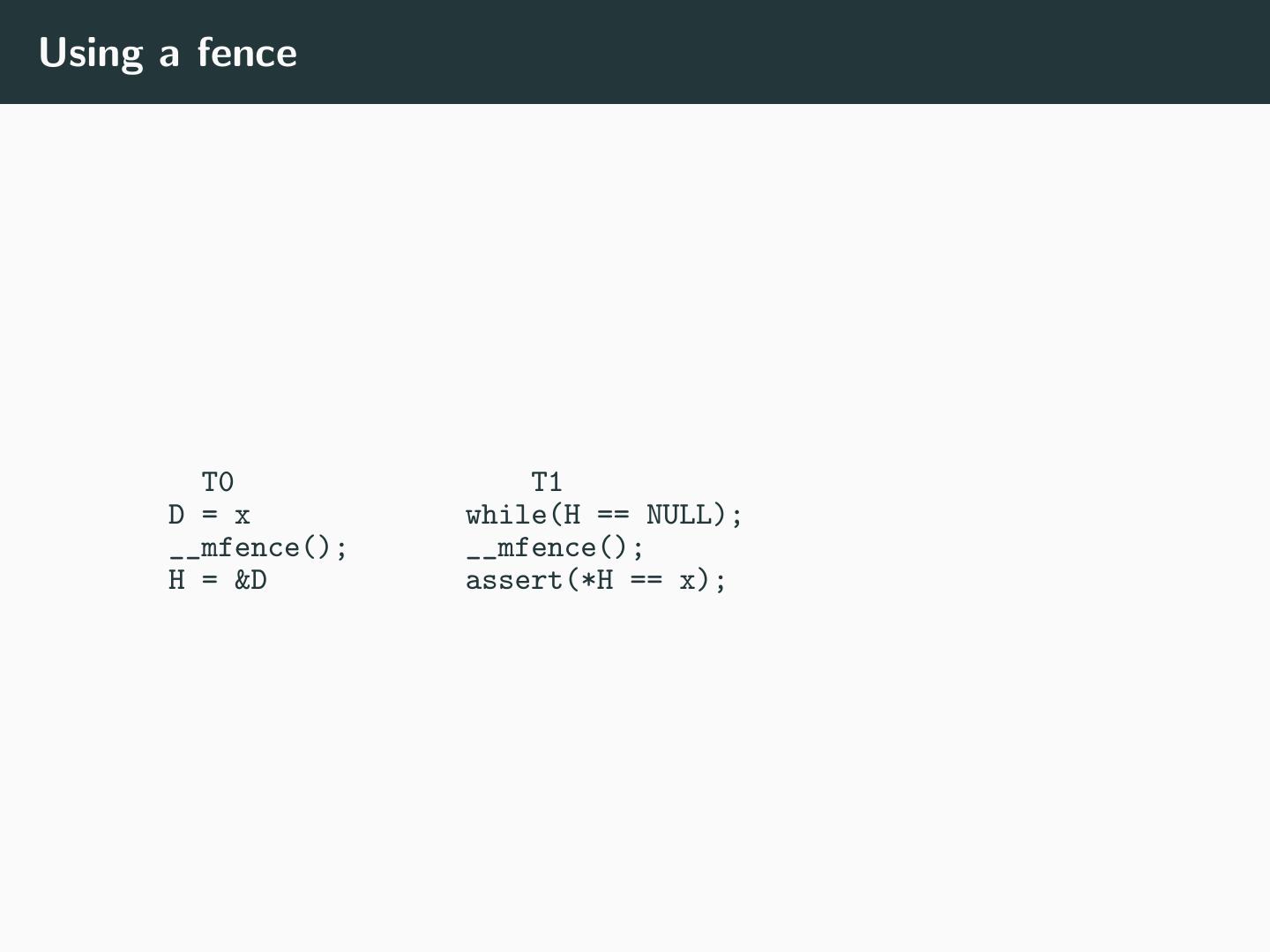

26 .Using a fence T0 T1 D = x while(H == NULL); __mfence(); __mfence(); H = &D assert(*H == x); 

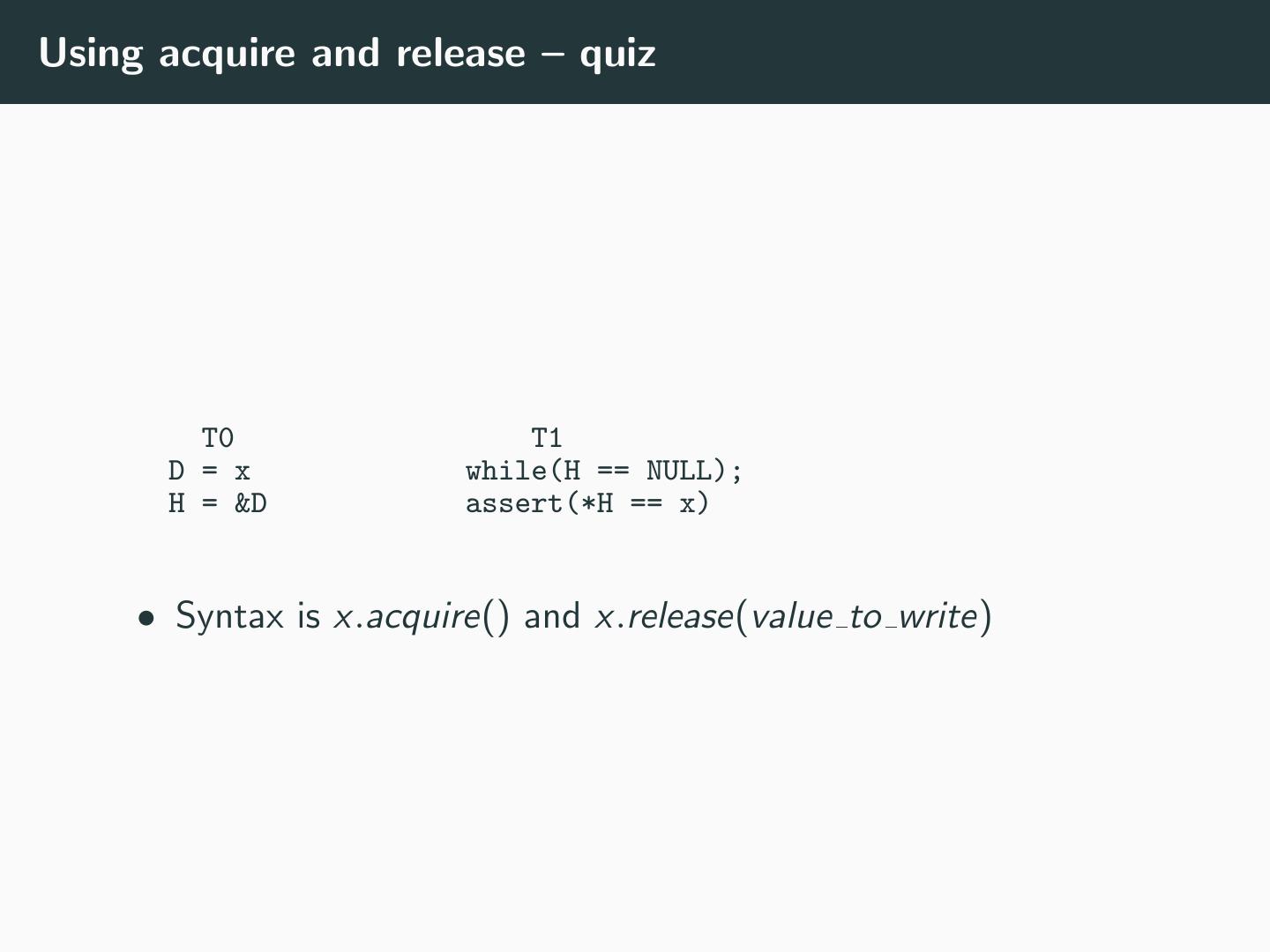

27 .Using acquire and release – quiz T0 T1 D = x while(H == NULL); H = &D assert(*H == x) • Syntax is x.acquire() and x.release(value to write) 

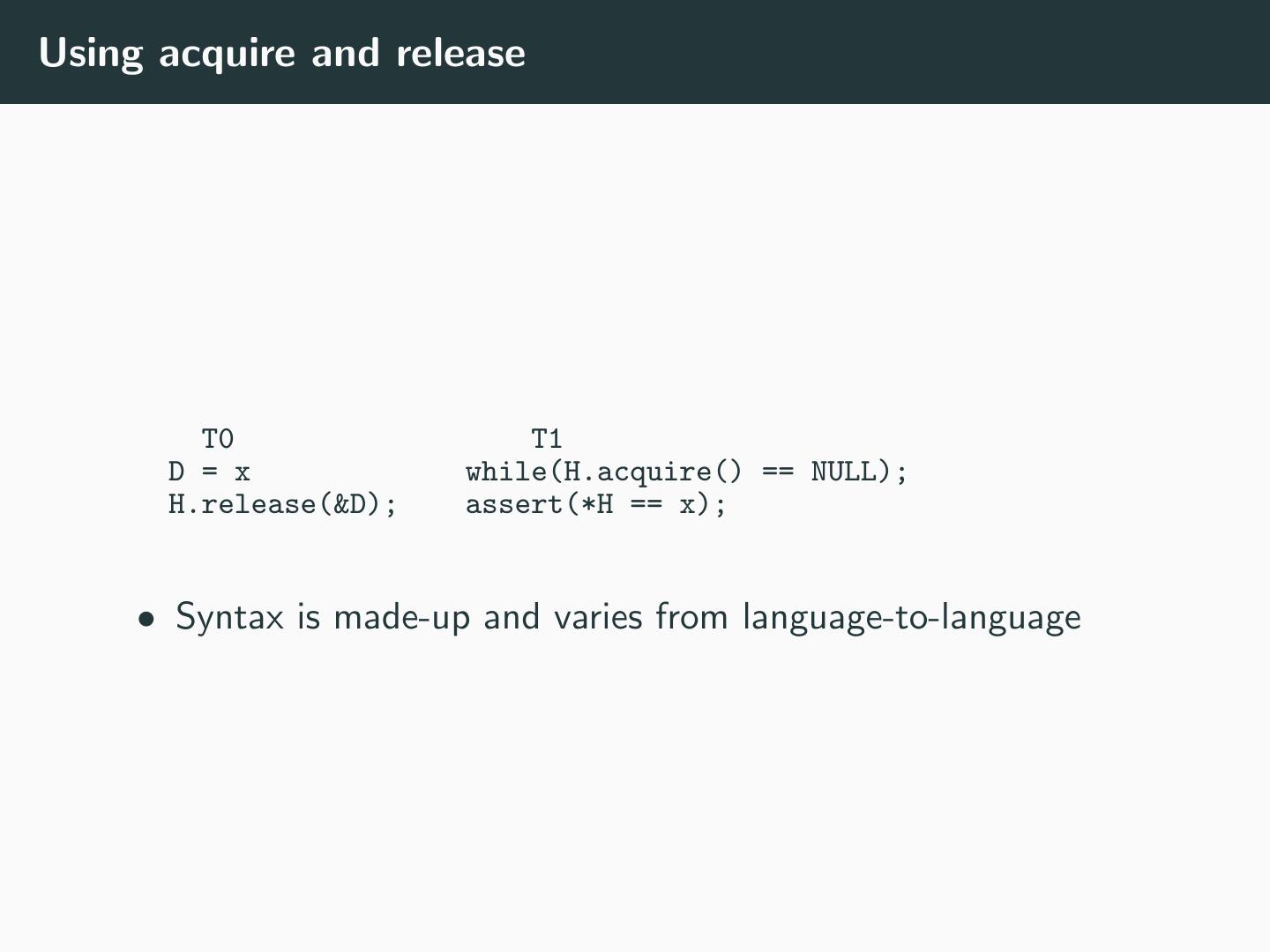

28 .Using acquire and release T0 T1 D = x while(H.acquire() == NULL); H.release(&D); assert(*H == x); • Syntax is made-up and varies from language-to-language 

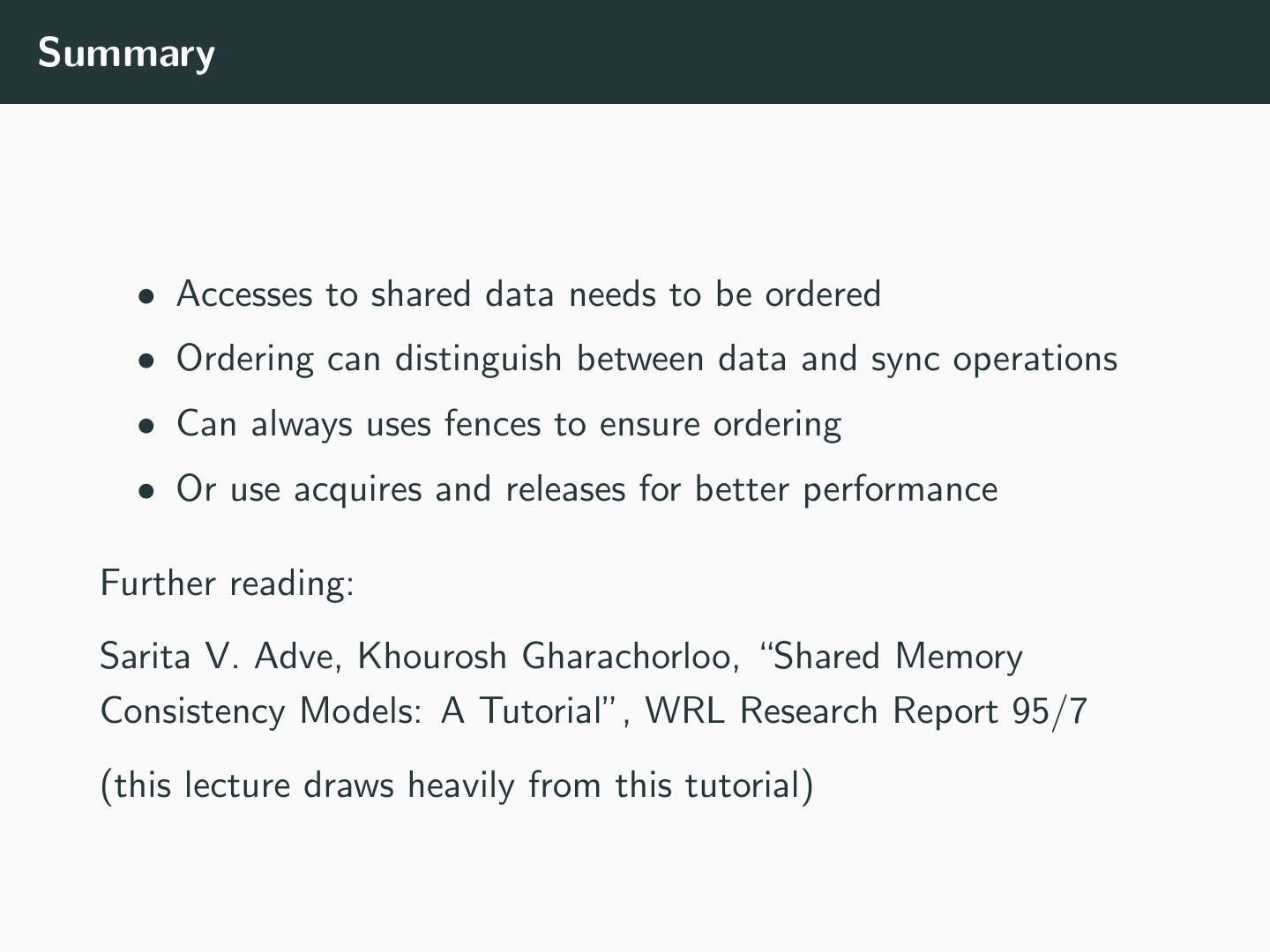

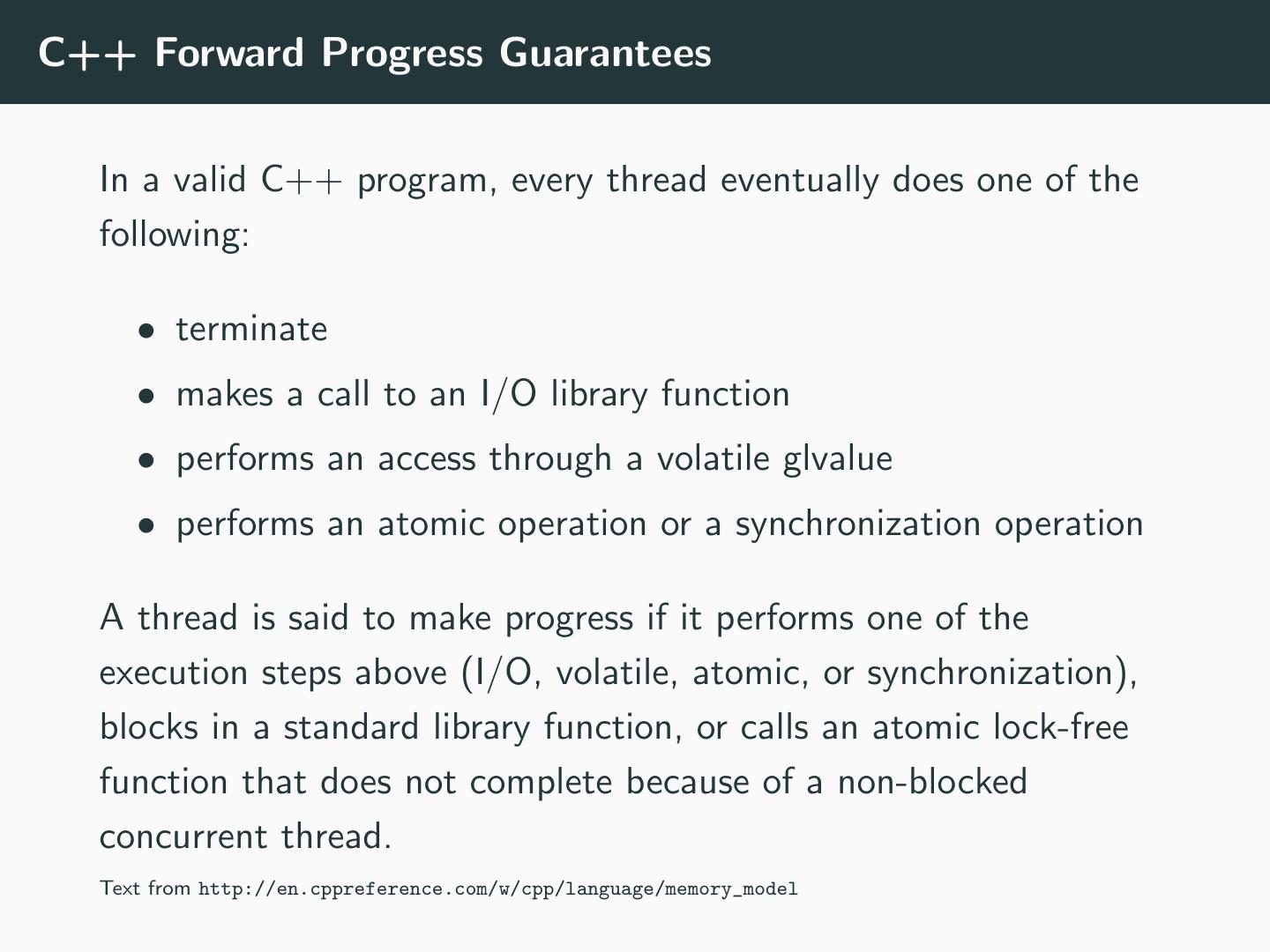

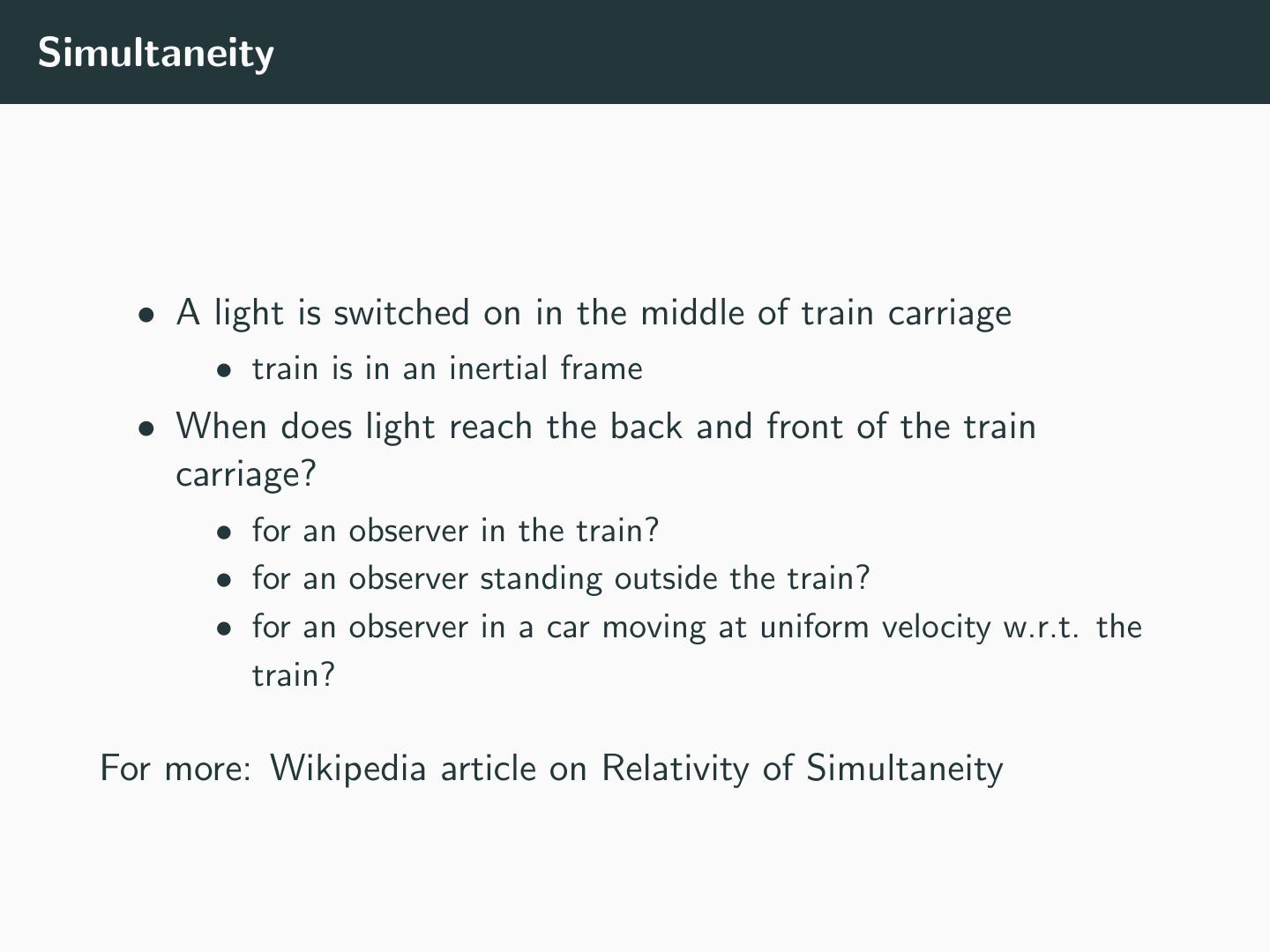

29 .Summary • Accesses to shared data needs to be ordered • Ordering can distinguish between data and sync operations • Can always uses fences to ensure ordering • Or use acquires and releases for better performance Further reading: Sarita V. Adve, Khourosh Gharachorloo, “Shared Memory Consistency Models: A Tutorial”, WRL Research Report 95/7 (this lecture draws heavily from this tutorial)
