21-Consensus and Failures

1 .CSC2/458 Parallel and Distributed Systems Consensus and Failures Sreepathi Pai April 10, 2018 URCS 

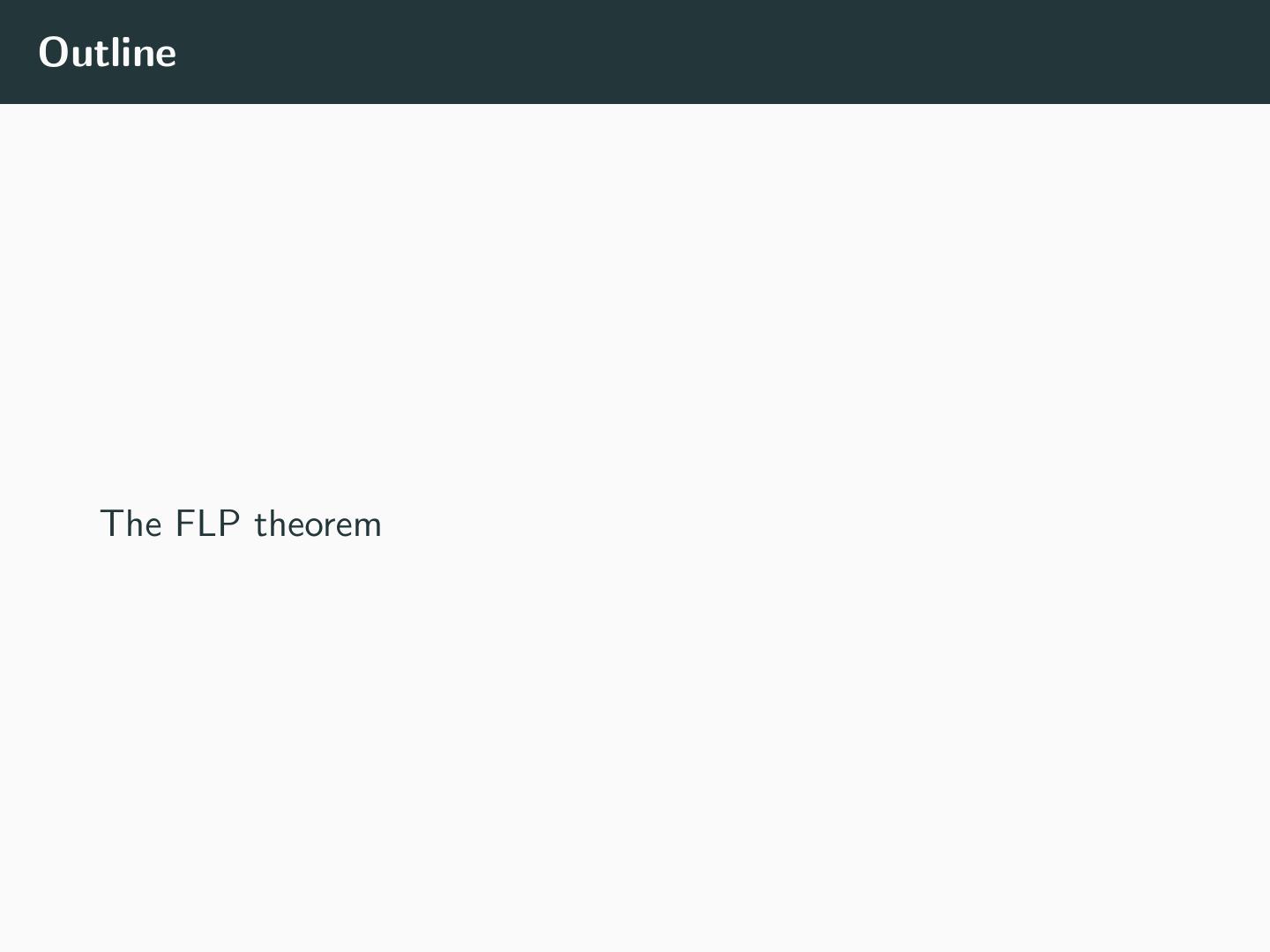

2 .Outline The FLP theorem 

3 .Outline The FLP theorem 

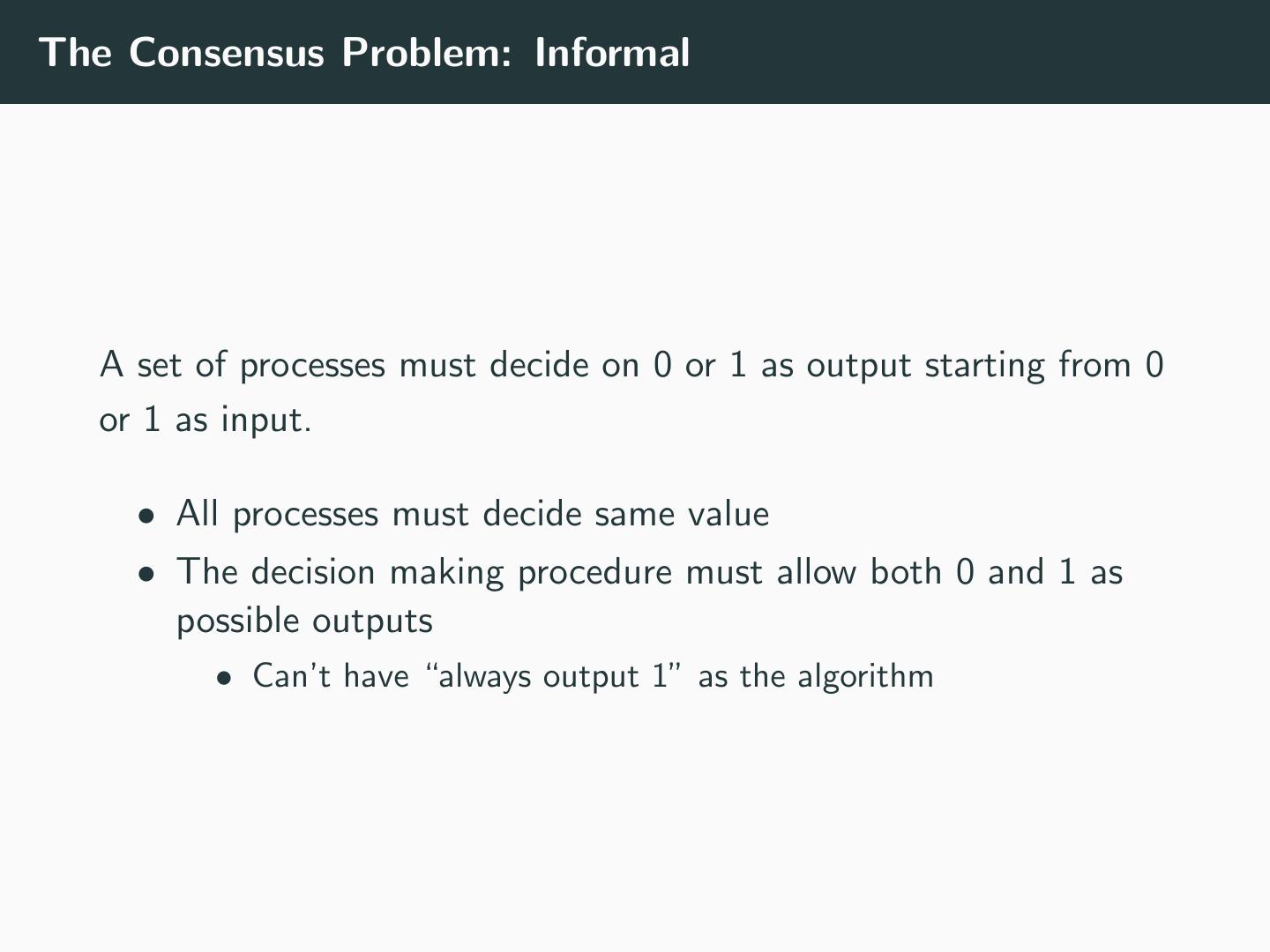

4 .The Consensus Problem: Informal A set of processes must decide on 0 or 1 as output starting from 0 or 1 as input. • All processes must decide same value • The decision making procedure must allow both 0 and 1 as possible outputs • Can’t have “always output 1” as the algorithm 

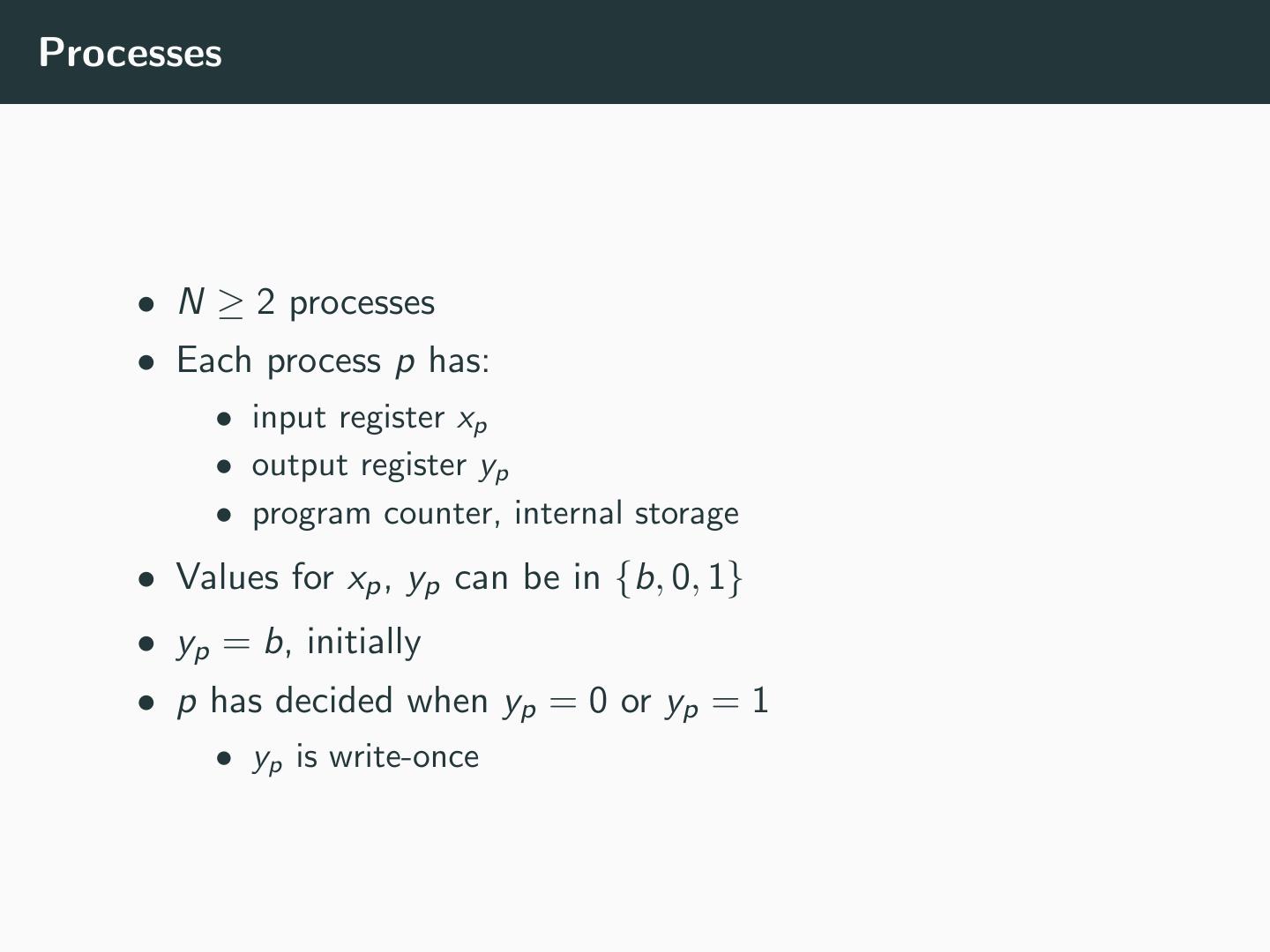

5 .Processes • N ≥ 2 processes • Each process p has: • input register xp • output register yp • program counter, internal storage • Values for xp , yp can be in {b, 0, 1} • yp = b, initially • p has decided when yp = 0 or yp = 1 • yp is write-once 

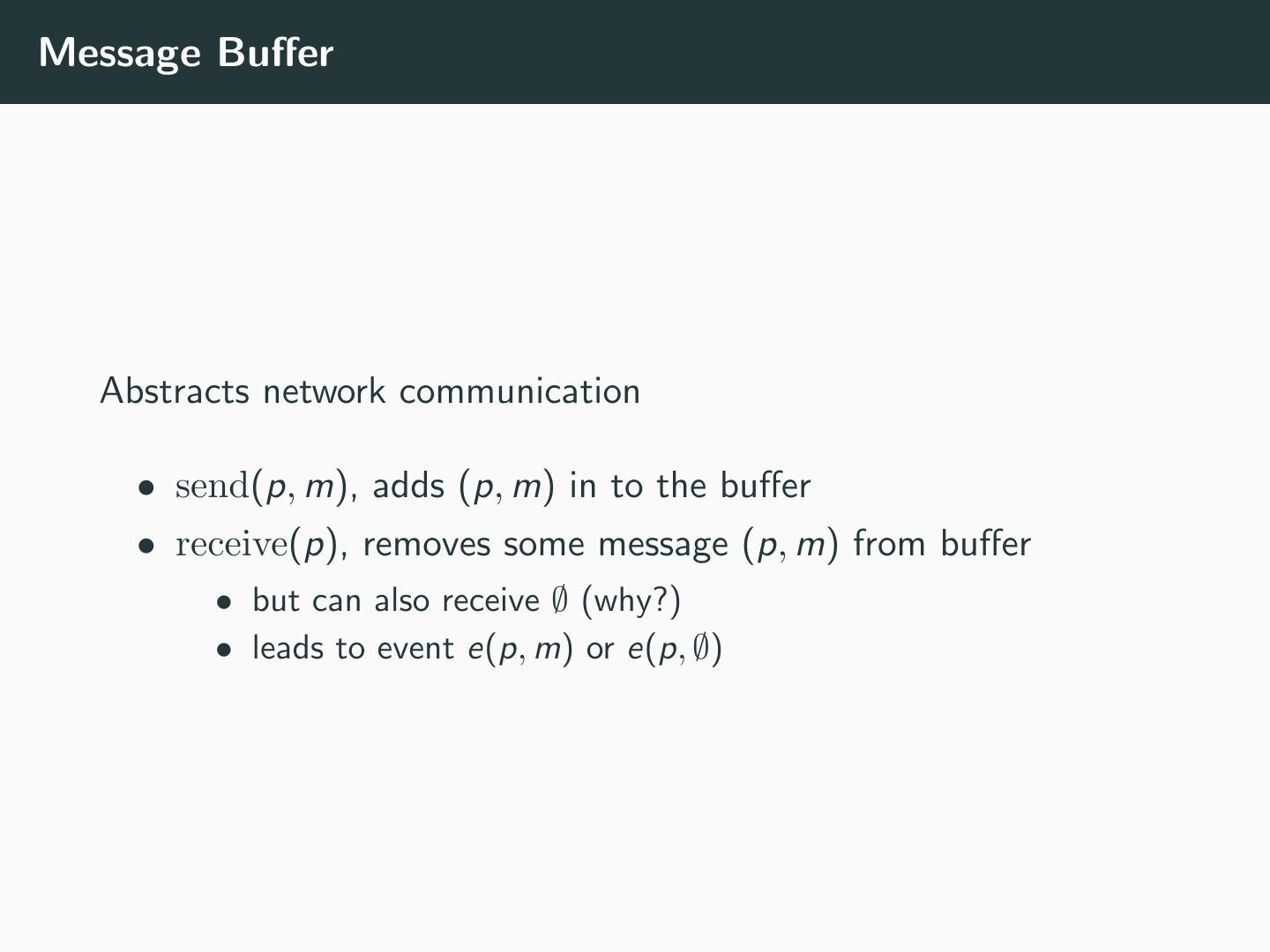

6 .Message Buffer Abstracts network communication • send(p, m), adds (p, m) in to the buffer • receive(p), removes some message (p, m) from buffer • but can also receive ∅ (why?) • leads to event e(p, m) or e(p, ∅) 

7 .Configuration: Informal • Total global state of system • All register values, internal storage, etc. • Definition of initial configuration • All processes are in initial state and message buffer is empty • An event e(p, m) or e(p, ∅) moves a configuration from C to e(C ) • e applied to C , i.e. a step • A schedule is a sequence of events (i.e. the run). 

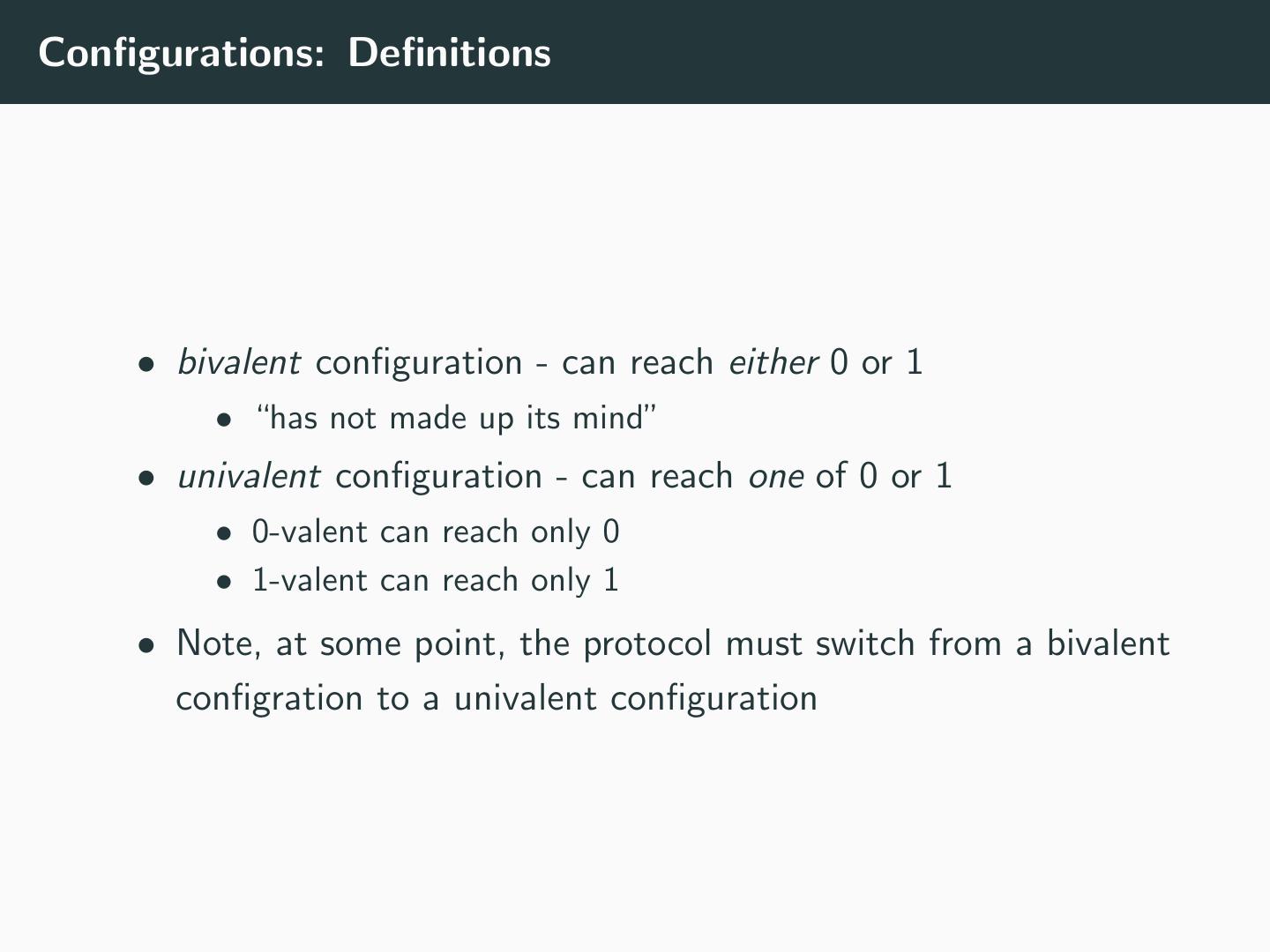

8 .Configurations: Definitions • bivalent configuration - can reach either 0 or 1 • “has not made up its mind” • univalent configuration - can reach one of 0 or 1 • 0-valent can reach only 0 • 1-valent can reach only 1 • Note, at some point, the protocol must switch from a bivalent configration to a univalent configuration 

9 .Partial Correctness: Informal • A configuration has a decision value v if some process p has yp = v • Note: some • A consensus protocol is partially correct if: • No configuration reachable from an initial configuration has more than one decision value • For v ∈ {0, 1}, some configuration reachable from an initial configuration has decision value v 

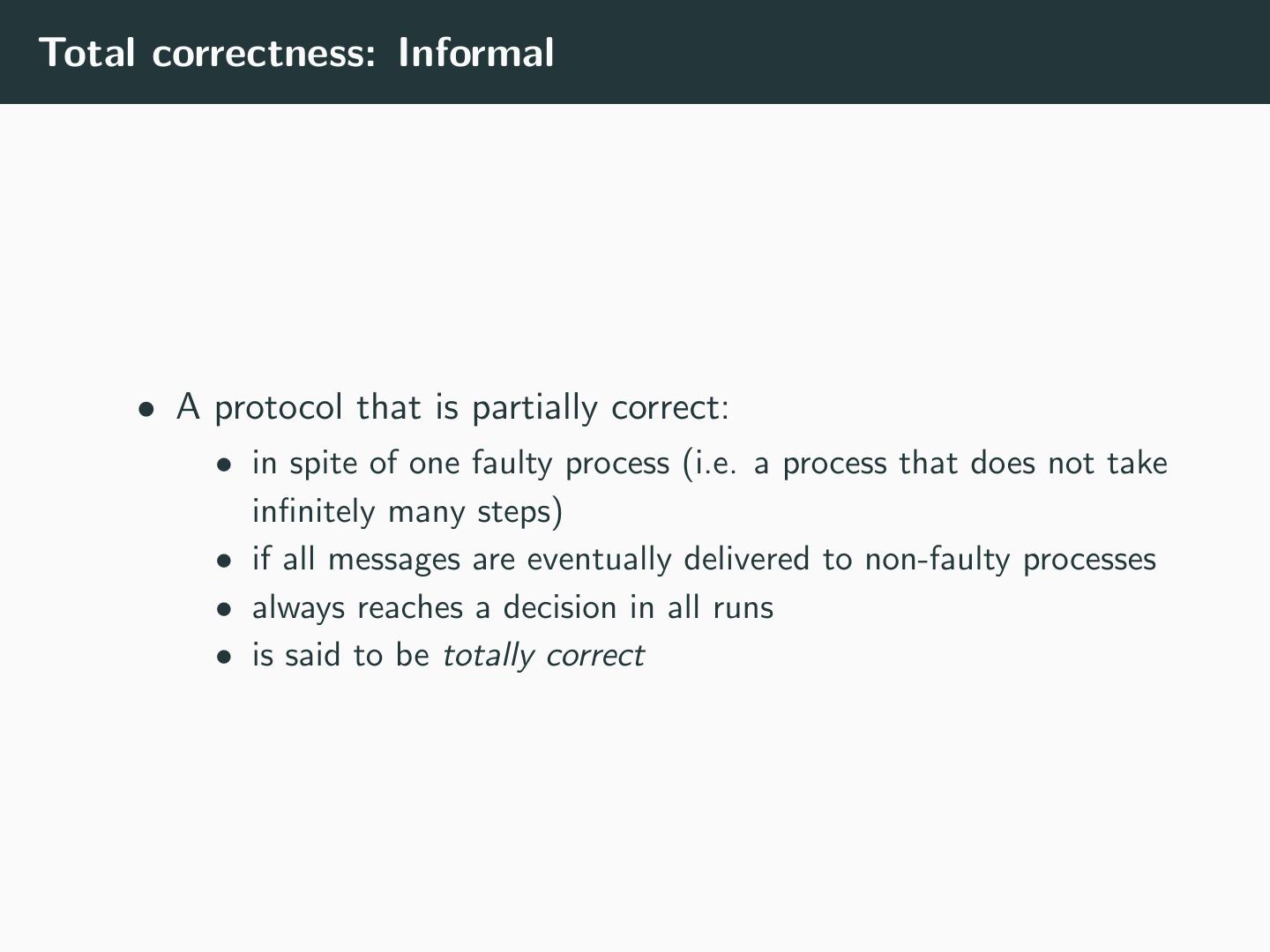

10 .Total correctness: Informal • A protocol that is partially correct: • in spite of one faulty process (i.e. a process that does not take infinitely many steps) • if all messages are eventually delivered to non-faulty processes • always reaches a decision in all runs • is said to be totally correct 

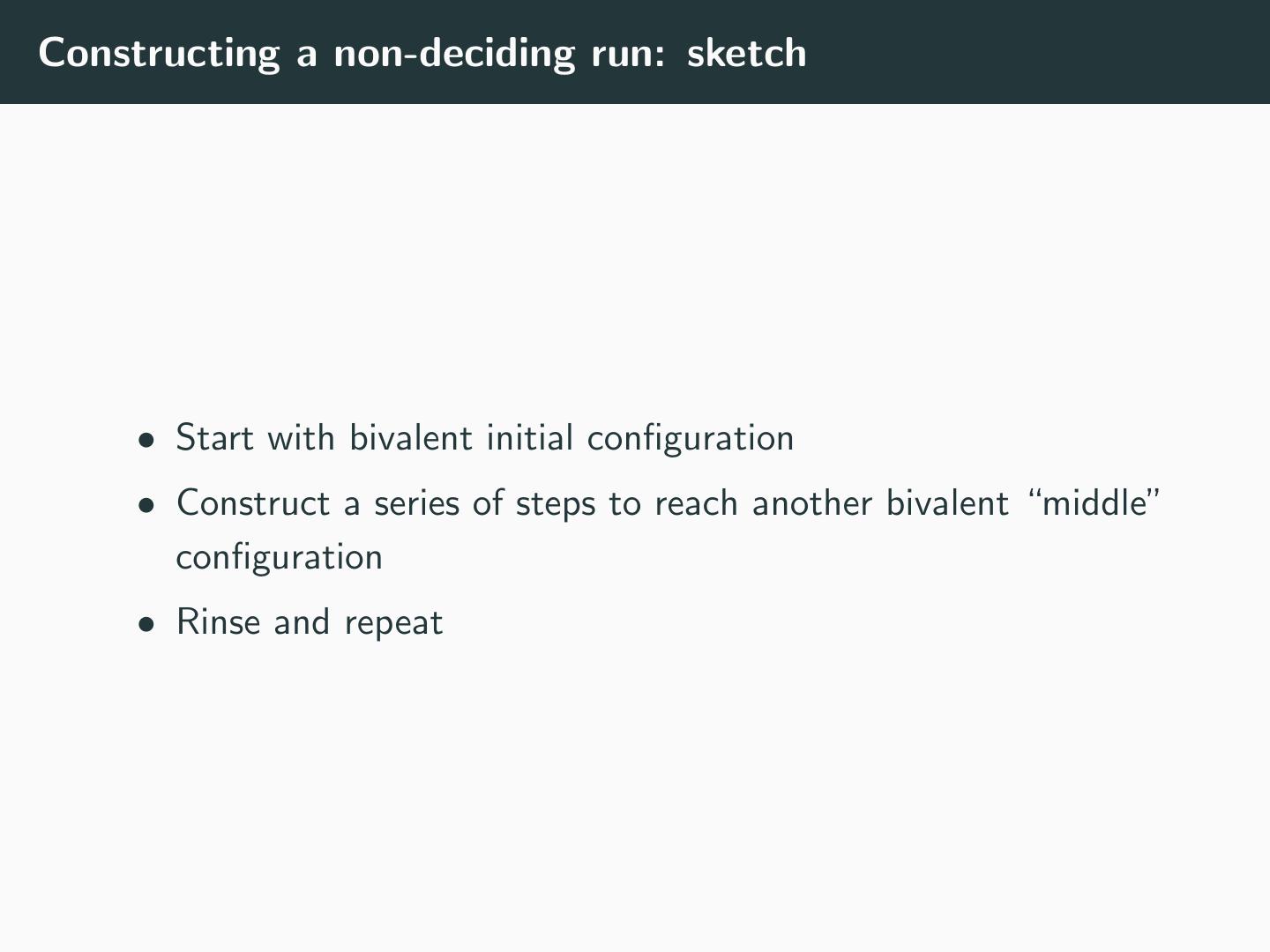

11 .Constructing a non-deciding run: sketch • Start with bivalent initial configuration • Construct a series of steps to reach another bivalent “middle” configuration • Rinse and repeat 

12 .Questions • Start with a bivalent initial configuration • Is there always one available? • Reach a bivalent “middle” configuration by a series of steps • Can we always do this? • Rinse and repeat • Can we keep doing this? 

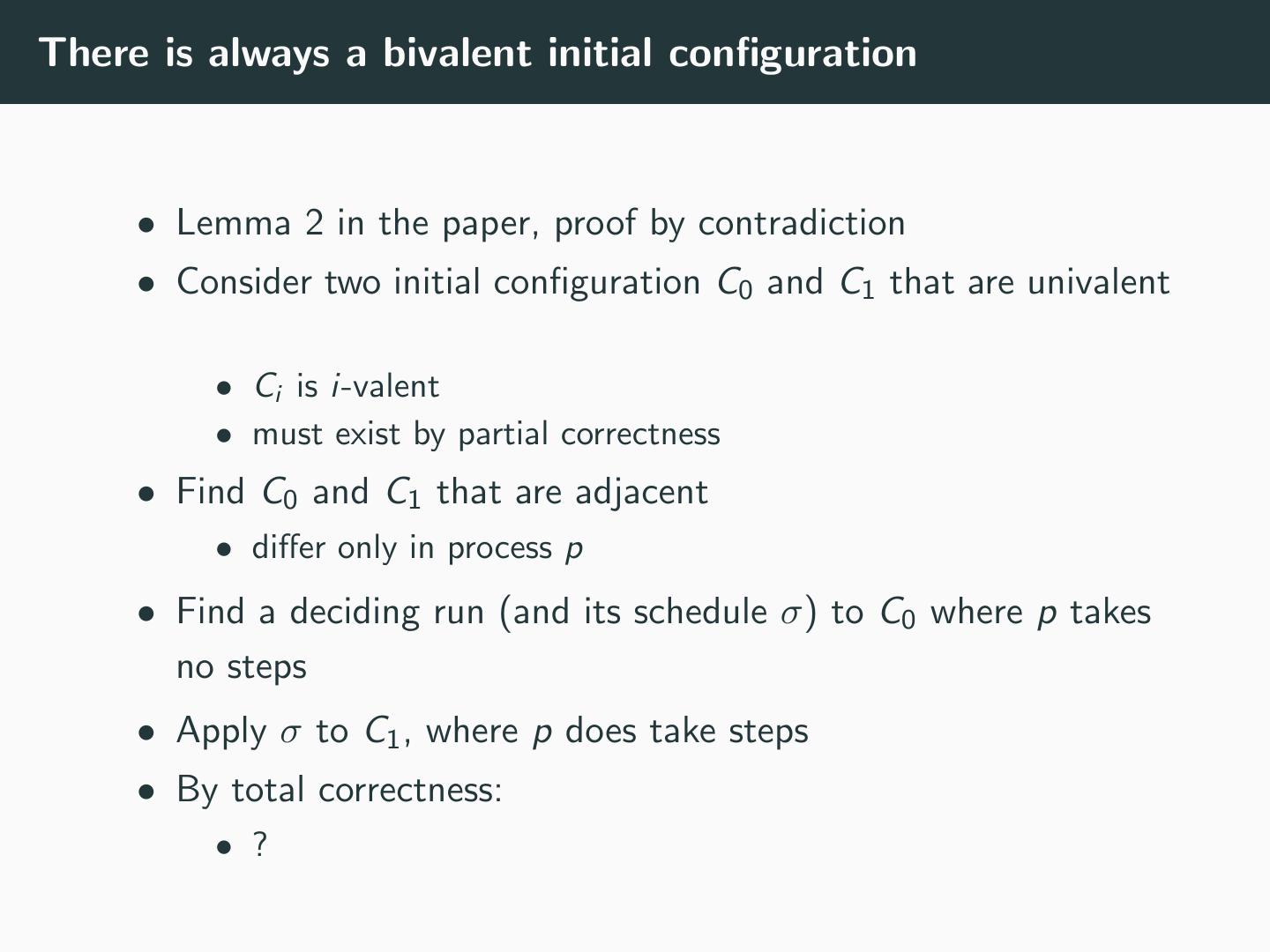

13 .There is always a bivalent initial configuration • Lemma 2 in the paper, proof by contradiction • Consider two initial configuration C0 and C1 that are univalent • Ci is i-valent • must exist by partial correctness • Find C0 and C1 that are adjacent • differ only in process p • Find a deciding run (and its schedule σ) to C0 where p takes no steps • Apply σ to C1 , where p does take steps • By total correctness: • ? 

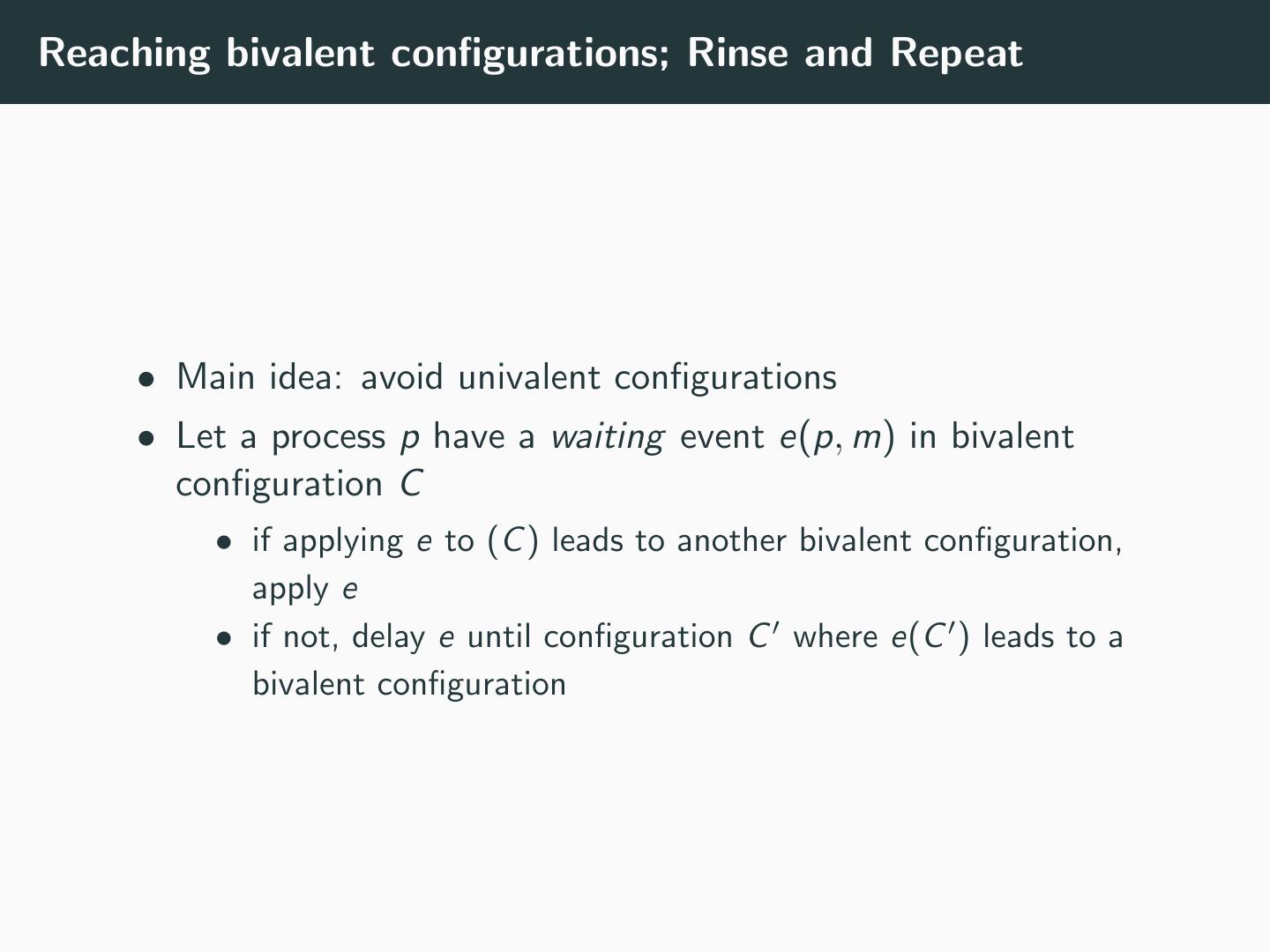

14 .Reaching bivalent configurations; Rinse and Repeat • Main idea: avoid univalent configurations • Let a process p have a waiting event e(p, m) in bivalent configuration C • if applying e to (C ) leads to another bivalent configuration, apply e • if not, delay e until configuration C where e(C ) leads to a bivalent configuration 

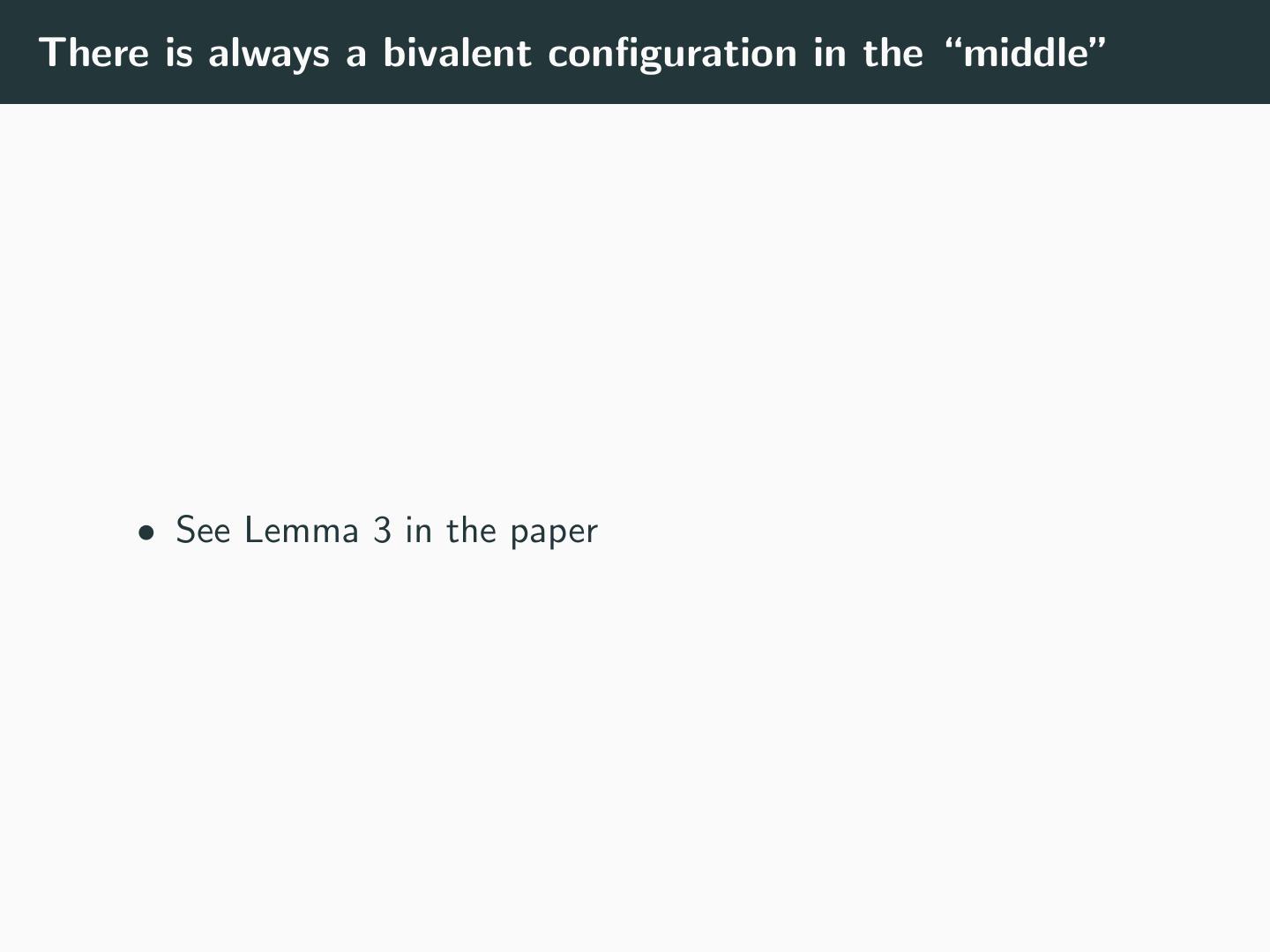

15 .There is always a bivalent configuration in the “middle” • See Lemma 3 in the paper
