Virtio as a universal communication format

1 .Virtio as a universal communication format A study in interface design Michael S. Tsirkin Consulting Engineer Chair of Virtio TC Fall 2018 1 

2 . Terminology ● Virtion: Asymmetrical two-party interface ● Driver (AKA virtio driver) submits requests by making them available – Kernel driver, userspace process, firmware ... ● Device (AKA vhost driver) uses (processes) requests – Hypervisor, kernel, another process, PCI device ... 

3 .The inexplicable popularity of virtio ● Started around 2007 by Rusty Russell Guest/Hypervisor interface for VMs ● 2010 vhost: userspace/kernel interface ● 2012 virtio multimedia hardware offload ”cool and random” – Rusty 2014 vhost/virtio-user: userspace/userspace Virtio ● 1.0 ● 2017 vdpa: hardware interface 3 

4 .Network effects SOFTWARE SPDK FIRMWARE SLOF SCSI DMA HARDWARE VDPA Mmedia 

5 . Virtio Interface Zoo block crypto balloon scsi input sock serial gpu network filesystem entropy Standards are good! 

6 . Motivation: userspace drivers ● Drivers often packaged with application Unlike kernel: New devices require app ● Kernel has no visibility into device state ● Link with a virtio library and forget ● Snapshot/restore can be made to work (WIP) 6 

7 . Motivation: VM guests ● Pass-through for performance ● Cross-host migration without guest changes ● Multi-vendor clusters supported ● Live migration also works Hypervisor aware of guest visible state 7 

8 . Motivation: overcommit ● Hardware ● Memory ● Switching to software ● Possibly live (WIP) 8 

9 . Motivation: bugs ● Who’s to blame for a crash? Buggy card or buggy driver? ● Swap in a different device and find out! ● Software implementations available ● Fix it in the right place 

10 . Virtio Properties ● Forward and Backward Compatibility ● PCI for Device Discovery ● Virtqueue Communication ● Reasonable Specification Process Let’s drill down ... 

11 .Virtio feature negotiation 0..............1...........2............. DEVICE FEATURES 0 1 1 -|- DRIVER 1 0 1 -|- DRIVER FEATURES 

12 . Virtio net: add failover support ● Feature bit: VIRTIO_NET_F_STANDBY = 0 ● New (failover aware) device: device features = 0x1 ● New driver: supported features = 0x1 ● Driver features: 0x1 & 0x1 = 0x1 ● Device and driver: if (driver_features & (1 << VIRTIO_NET_F_STANDBY)) enable failover support ● Updated device & driver: failover enabled! 12 

13 . Compatibility: existing drivers ● Device features = 0x1 ● Driver supported = 0x0 ● Driver features = 0x0 ● 0x0 & (1 << VIRTIO_NET_F_FAILOVER) == 0 ● Device: option 1: disable failover: compatible! ● Device: option 2: set status = fail Not worse than building a new device! Can suggest upgrading a driver. 13 

14 . Compatibility: existing devices ● Device features: 0x0 ● Driver supported: 0x1 ● Driver features: 0x0 ● 0x0 & (1 << VIRTIO_NET_F_FAILOVER) == 0 ● Driver: option 1: disable failover ● Driver: option 2: set status = fail Can suggest upgrading a device. 14 

15 . Compatibility: virtio 0.9 versus 1.0 ● virtio 1.0 – made default Jul 2016 ● Switched devices to a different register layout ● Gated by a feature bit: /* v1.0 compliant. */ #define VIRTIO_F_VERSION_1 32 ● No one noticed! 15 

16 . PCI based discovery ● Not the only option multiple transports supported ● Standard VendorID/DeviceID registers donated by Red Hat for use by Virtio ● Use these values → drivers will bind to device 16 

17 . Virtqueue ring Device and driver write descriptors into a ring address_lo For out of order address_hi devices length id flags Mark descriptor valid No locks shared Notifications identify the ring Standard for DMA HW 17 

18 . Specification process do I have to write a spec? ● Absolutely the right thing to do ● Does not have to be step 0! ● Virtio priorities: – Code compatibility – IPR compatibility – Interface compatibility 18 

19 . Code compatibility: avoid conflicting with others ● New device: reserve an ID. Spec patch: diff --git a/content.tex b/content.tex @@ -3022,3 +3022,5 @@ Device ID & Virtio Device \\ \hline +23 & misc device \\ +\hline \end{tabular} ● Existing device: reserve a feature bit. E.g. : @@ -4800,5 +4802,6 @@ guest memory statistics \item[VIRTIO_BALLOON_F_DEFLATE_ON_OOM (2) ] Deflate balloon on guest out of memory condition. +\item[VIRTIO_BALLOON_F_XXXX (3) ] Reserved for + feature XXXX. \end{description} 19 

20 . How to get it in the spec? ● git clone https://github.com/oasis-tcs/virtio-spec Edit :) ● sh makeall.sh (needs xelatex, e.g. from texlive) ● virtio-comment-subscribe@lists.oasis-open.org ● Patch: virtio-comment@lists.oasis-open.org ● If no comments – email, ask for a vote ballot ● Total time: up to 2 weeks 20 

21 . IPR compatibility: allow others to implement compatible devices ● Open-source an implementation ● Subscribe to virtio-dev@lists.oasis.org ● Agree to IPR rules (non-assertion mode) ● Send a copy of the patches (e.g. qemu, linux, dpdk) to virtio-dev@lists.oasis.org ● Virtio memory and IOMMU at this point now. 21 

22 . Interface compatibility ● Document assumptions for inter-operability ● Submit as comments ● Virtio membership is not required ● Membership is open - members vote on ballots ● Hints: – Document device and driver separately – Use MUST/SHOULD/MAY keywords – Ask for help! ● Virtio crypto, input, gpu added recently 22 

23 . Work-in-progress ● Platform and hardware specific optimizations ● Vendor-specific issues ● New transports ● New devices 23 

24 . Hardware is special ● Let’s assume a pass-through device implementing virtio. Shouldn’t this just work? ● Maybe – but not optimally! ● Hypervisor: processes descriptors one by one ● Hardware: can process many in parallel ● Needs to be told how many are available ● Include number of available entries in a kick 24 

25 . Platform issues ● Hardware Virtio device behind a PCI bus: wmb() dma_wmb() ● Software Virtio device: interrupt smp_wmb() 25 

26 . Cross-vendor compatibility ● Modular interface controlled by feature bits ● Drivers can limit to a subset for consistency ● Report negotiated features: – cat /sys/bus/pci/devices/0000\:01\:00.0/features ● TODO: report device features 26 

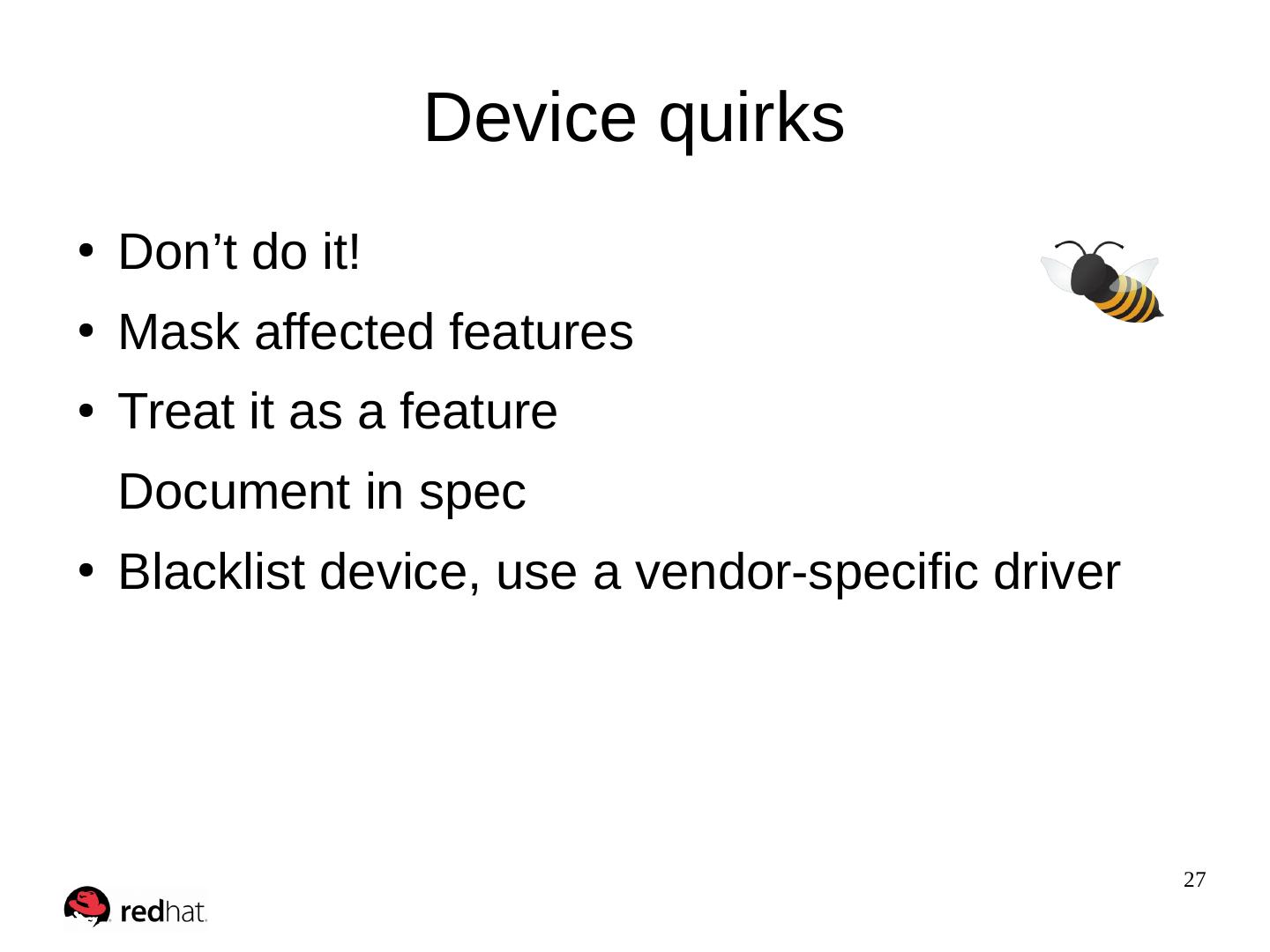

27 . Device quirks ● Don’t do it! ● Mask affected features ● Treat it as a feature Document in spec ● Blacklist device, use a vendor-specific driver 27 

28 . CFA: transports ● Vhost-user: virtio over unix domain sockets – QEMU – DPDK – SPDK 28 

29 . WIP: devices ● Memory device ● IOMMU device ● 9PFS? ● Audio anyone? 29
