1 .Improving Graphics Interactivity
It's all in the Timing
Keith Packard
keithp.com
Valve

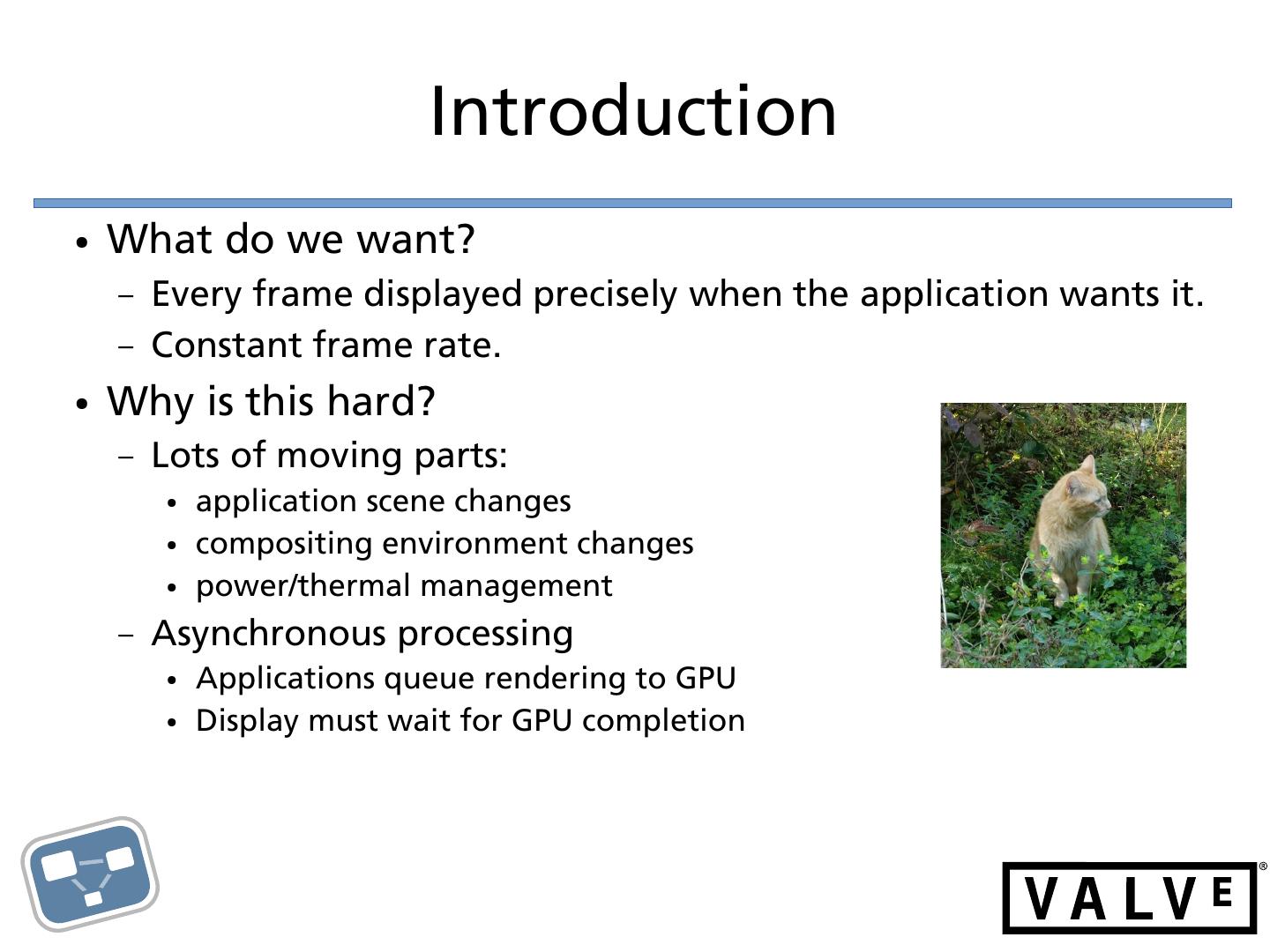

2 . Introduction
● What do we want?
– Every frame displayed precisely when the application wants it.
– Constant frame rate.
● Why is this hard?
– Lots of moving parts:
● application scene changes
● compositing environment changes
● power/thermal management
– Asynchronous processing
● Applications queue rendering to GPU
● Display must wait for GPU completion

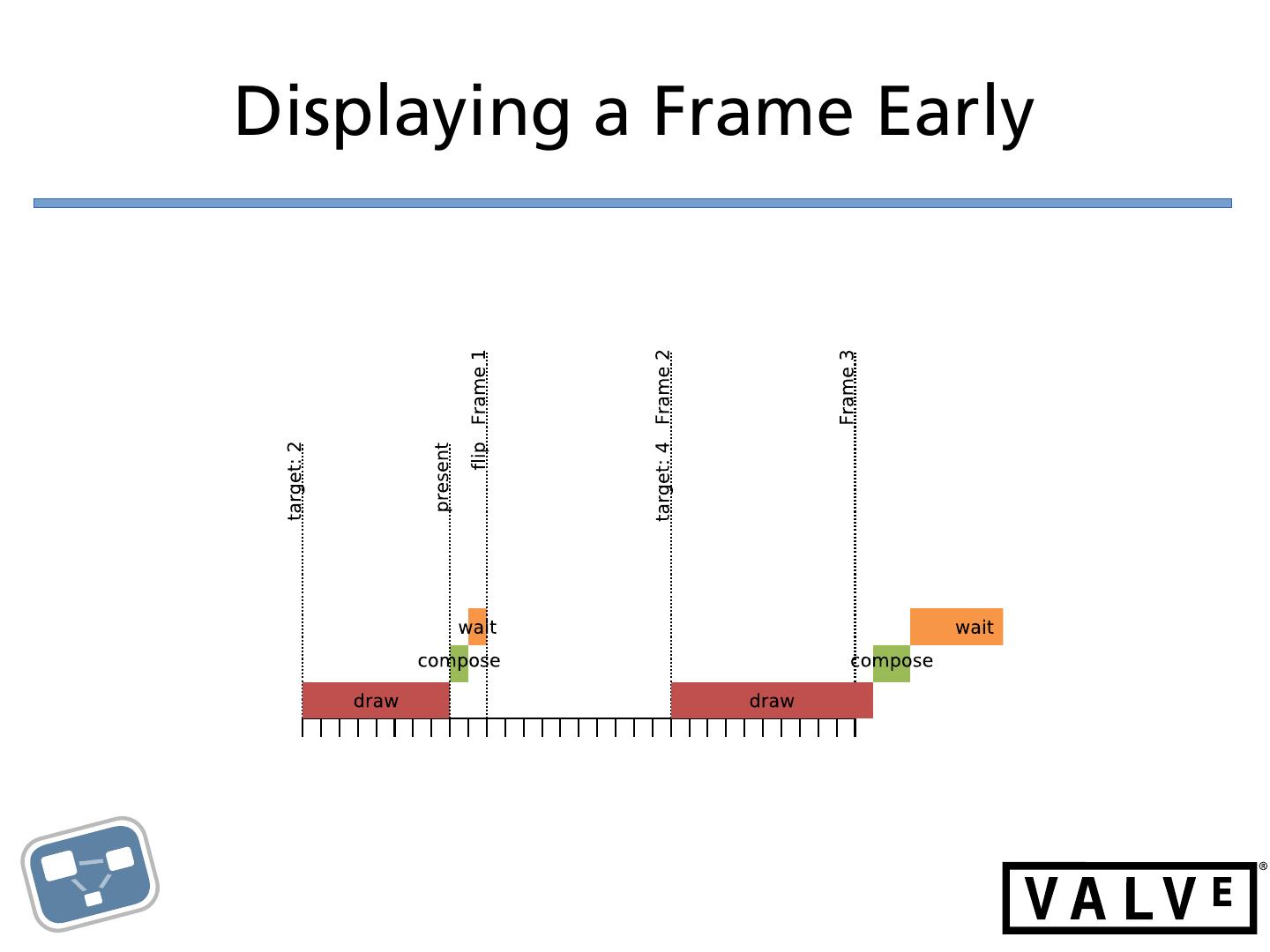

6 .Displaying a Frame Early

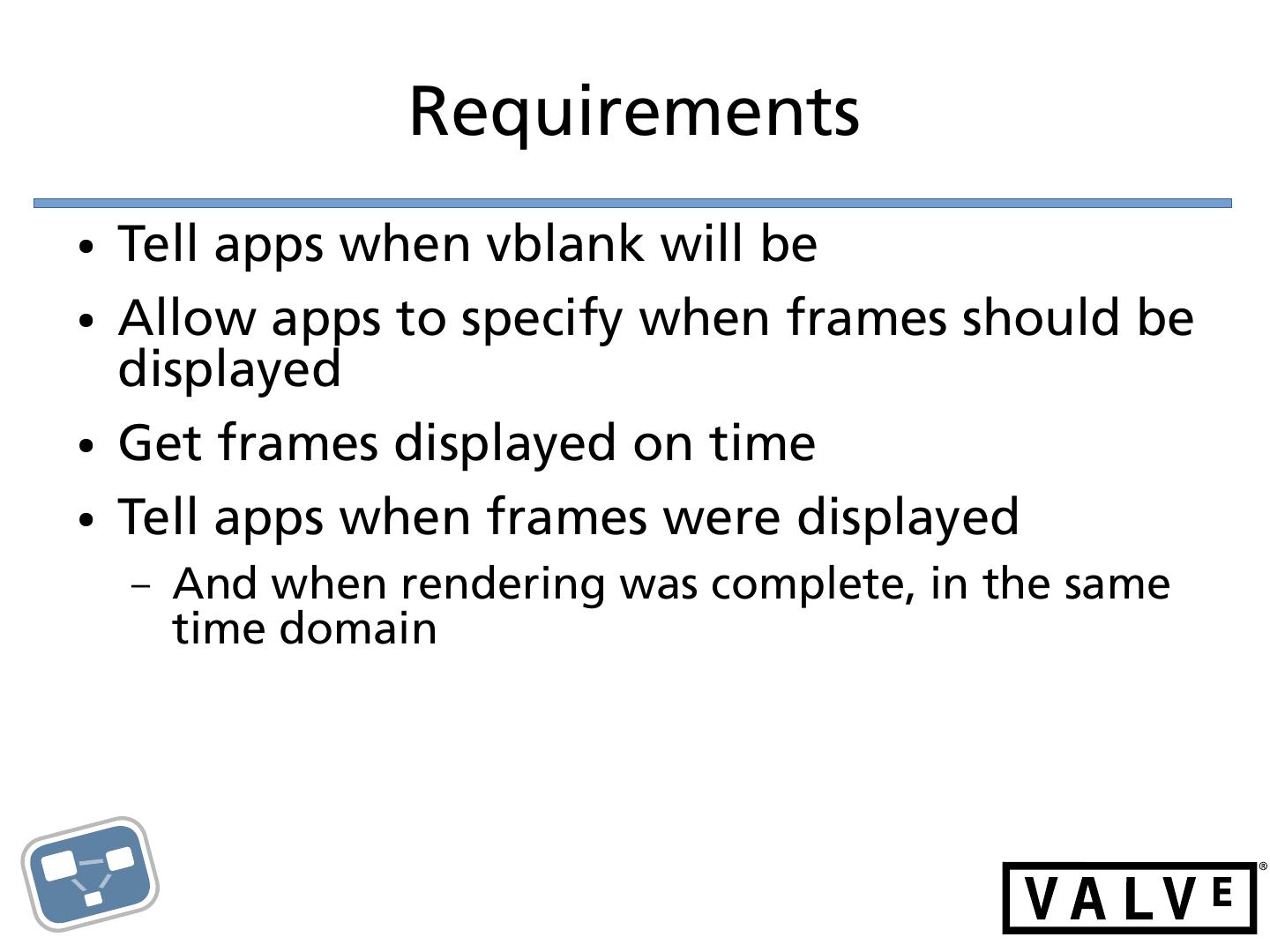

7 . Requirements
● Tell apps when vblank will be
● Allow apps to specify when frames should be
displayed
● Get frames displayed on time
● Tell apps when frames were displayed
– And when rendering was complete, in the same
time domain
8 . OpenGL
● GLX_OML_sync_control
– Specify target present frame count
– Avoids early frame presentation
● But, no feedback about when frames were
actually presented
– Many kludges required to guess
● GLX_EXT_swap_control
– Sets (min) number of frames per presentation
– No feedback on actual presentation time.

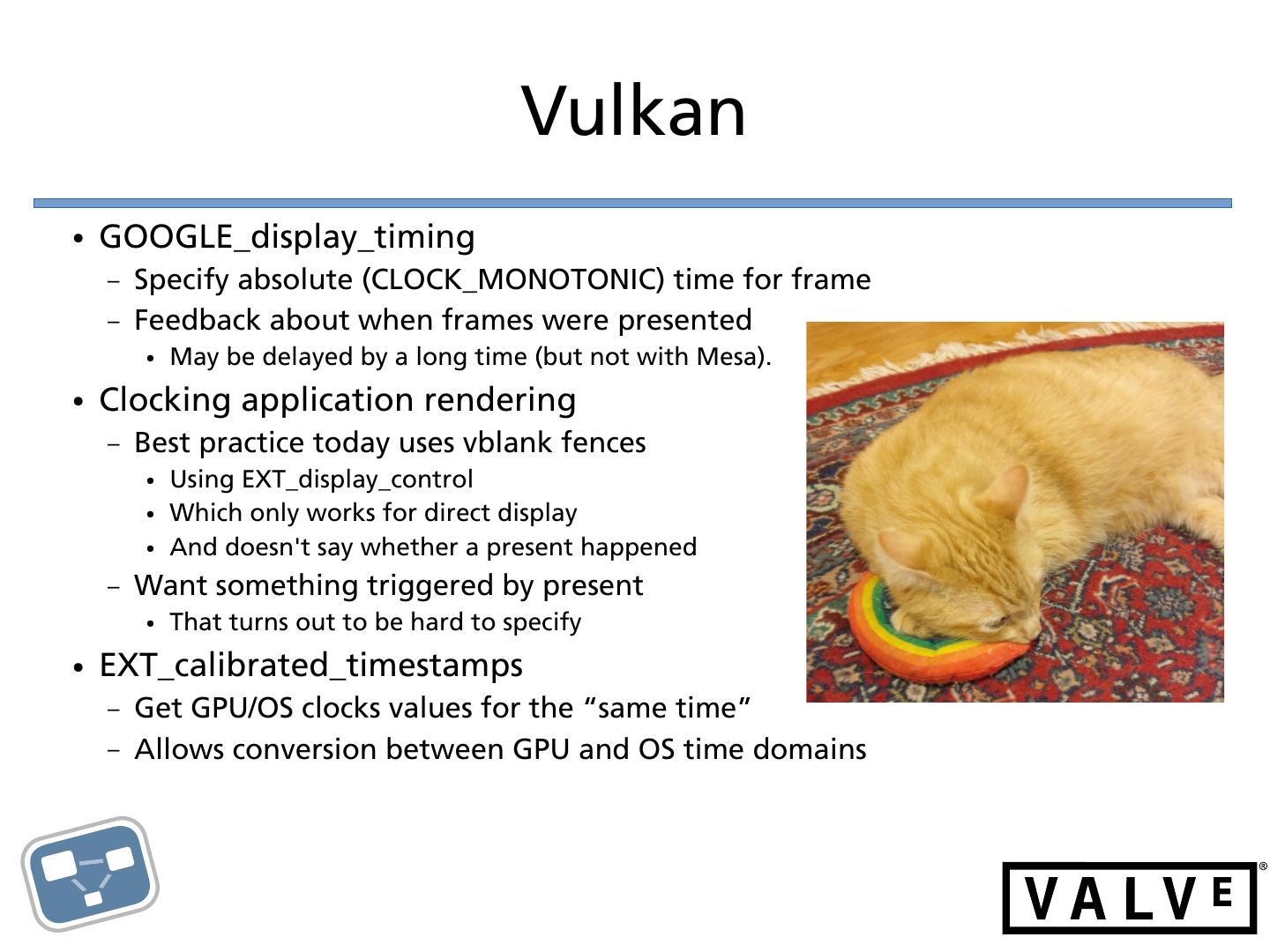

9 . Vulkan
● GOOGLE_display_timing
– Specify absolute (CLOCK_MONOTONIC) time for frame
– Feedback about when frames were presented
● May be delayed by a long time (but not with Mesa).
● Clocking application rendering
– Best practice today uses vblank fences
● Using EXT_display_control
● Which only works for direct display
● And doesn't say whether a present happened
– Want something triggered by present
● That turns out to be hard to specify
● EXT_calibrated_timestamps
– Get GPU/OS clocks values for the “same time”
– Allows conversion between GPU and OS time domains
10 . Old Vulkan Loop
frame_step = 16.67 ms
current_time = 0
while(running) {
RenderFrame(frame_step);
current_time += frame_step;
PresentFrame();
frame_step = LengthOfThisFrame();
}

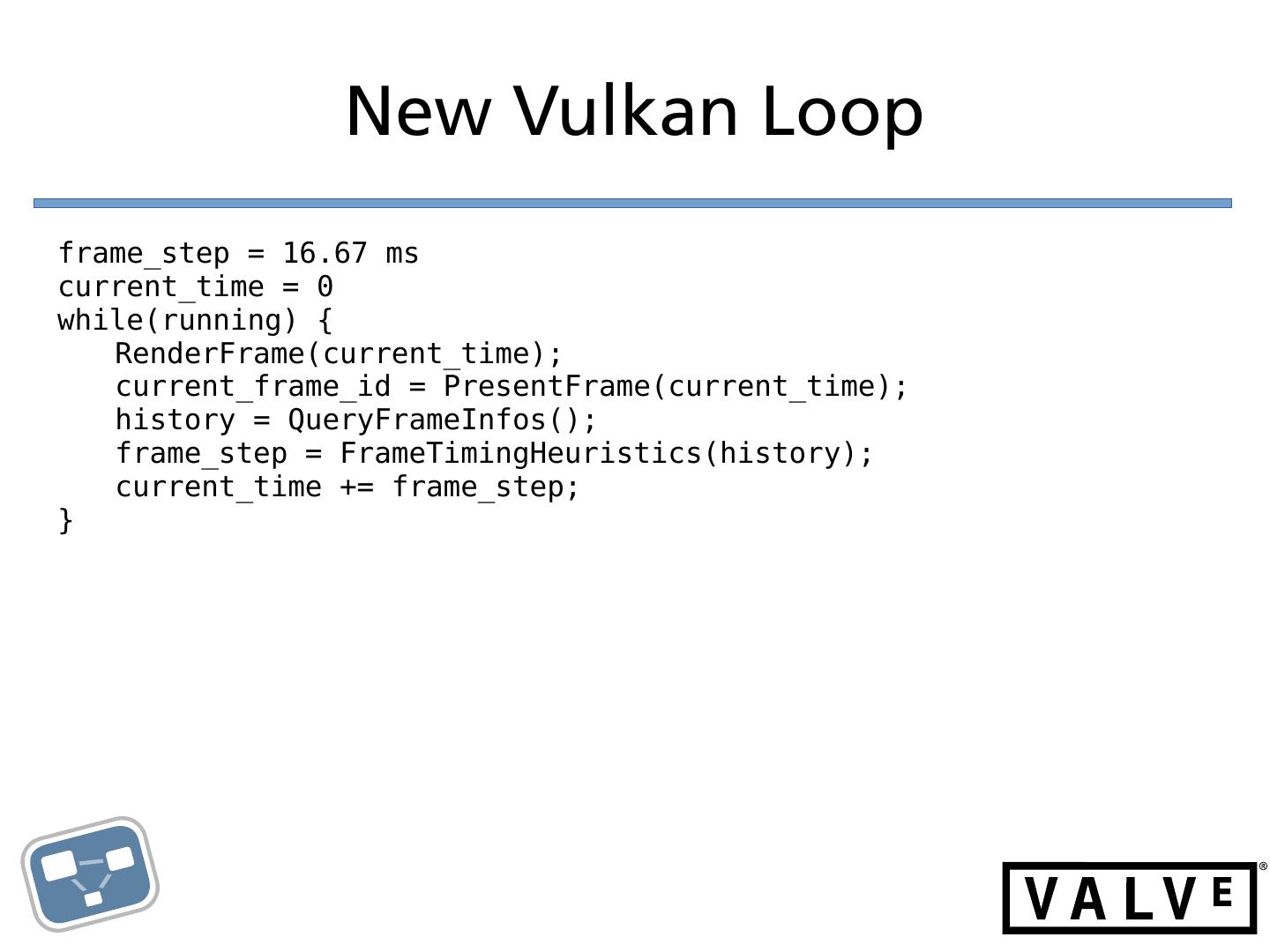

11 . New Vulkan Loop
frame_step = 16.67 ms
current_time = 0
while(running) {
RenderFrame(current_time);
current_frame_id = PresentFrame(current_time);
history = QueryFrameInfos();
frame_step = FrameTimingHeuristics(history);
current_time += frame_step;
}

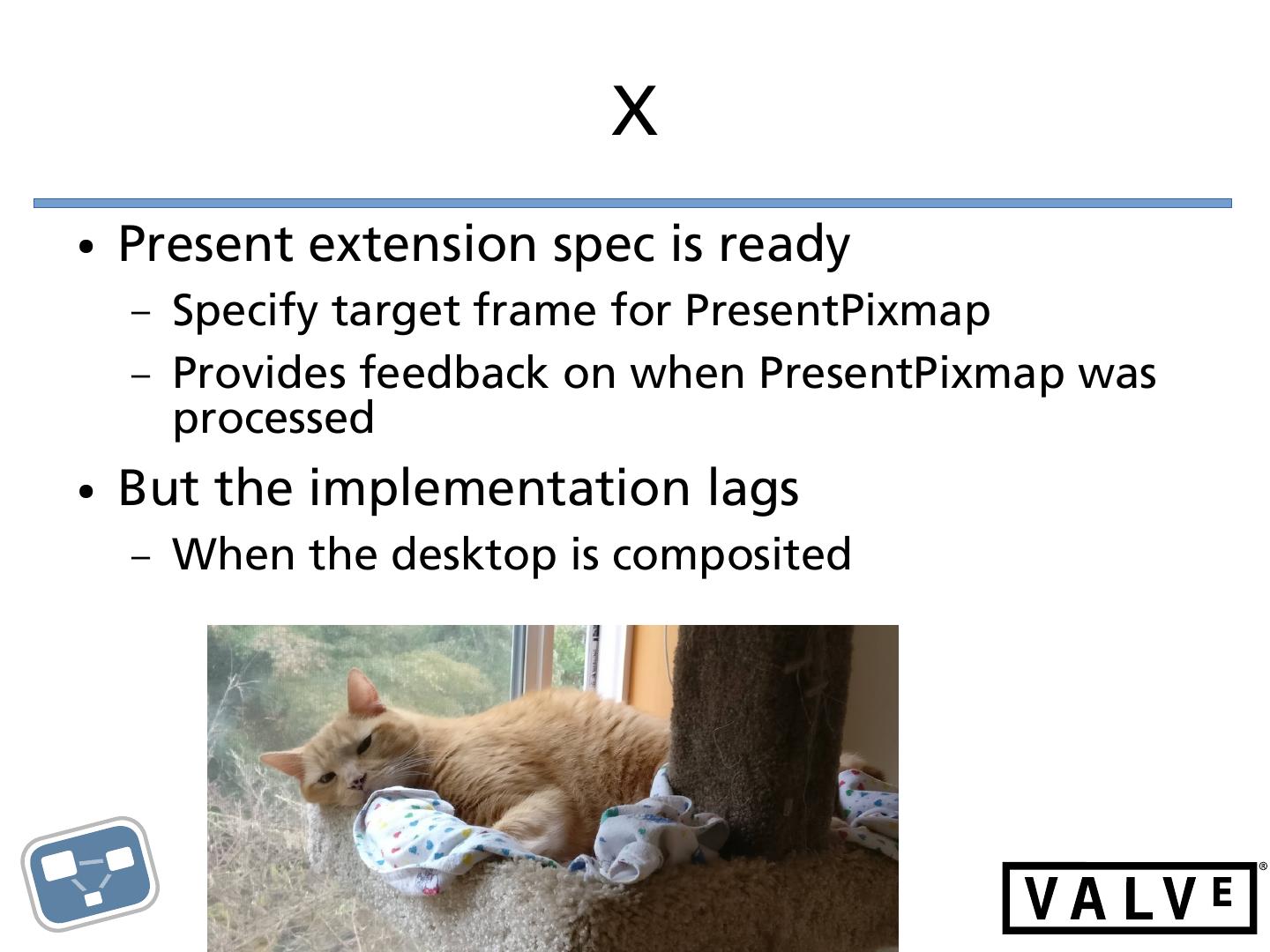

12 . X
● Present extension spec is ready
– Specify target frame for PresentPixmap
– Provides feedback on when PresentPixmap was
processed
● But the implementation lags
– When the desktop is composited

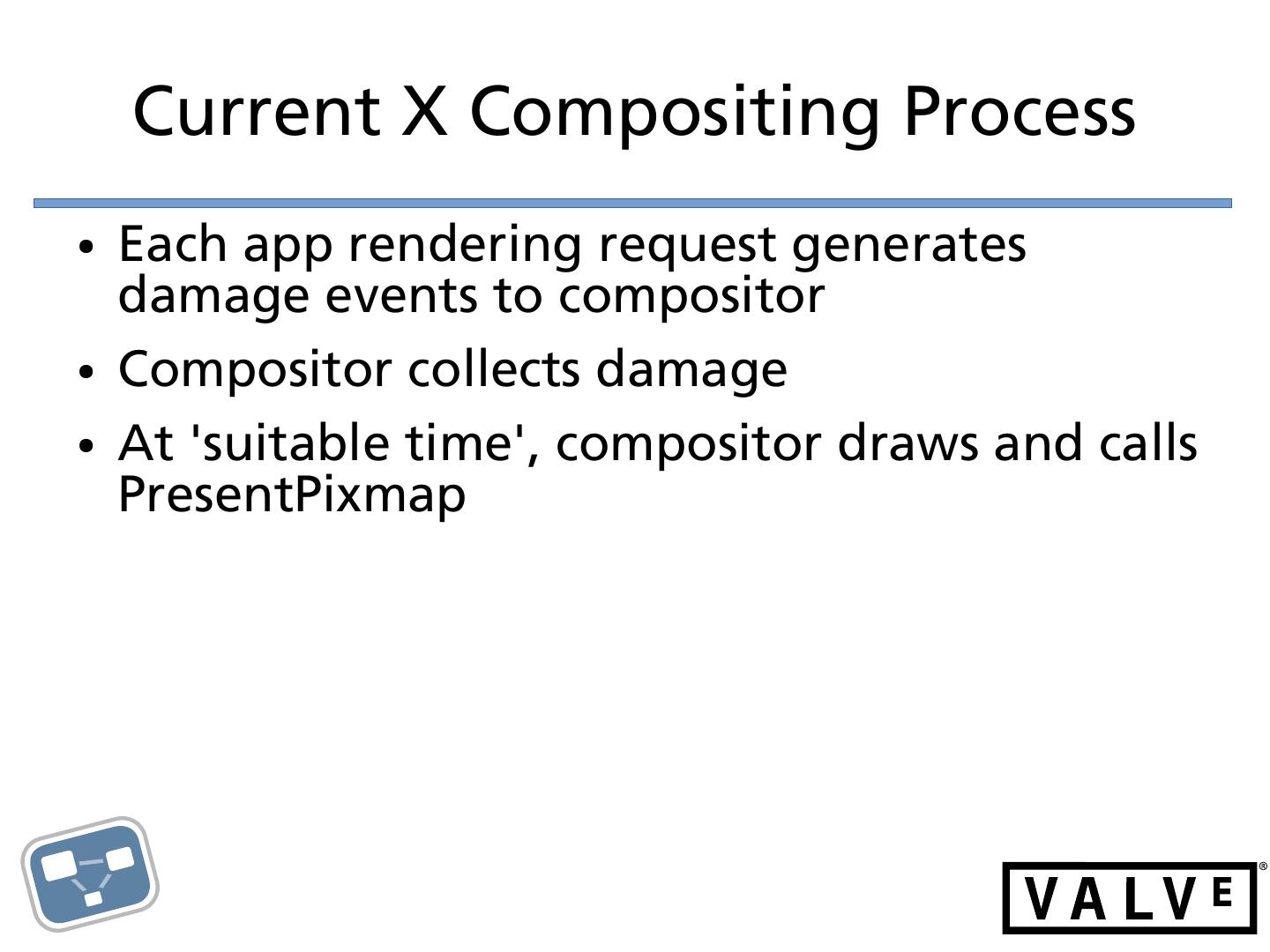

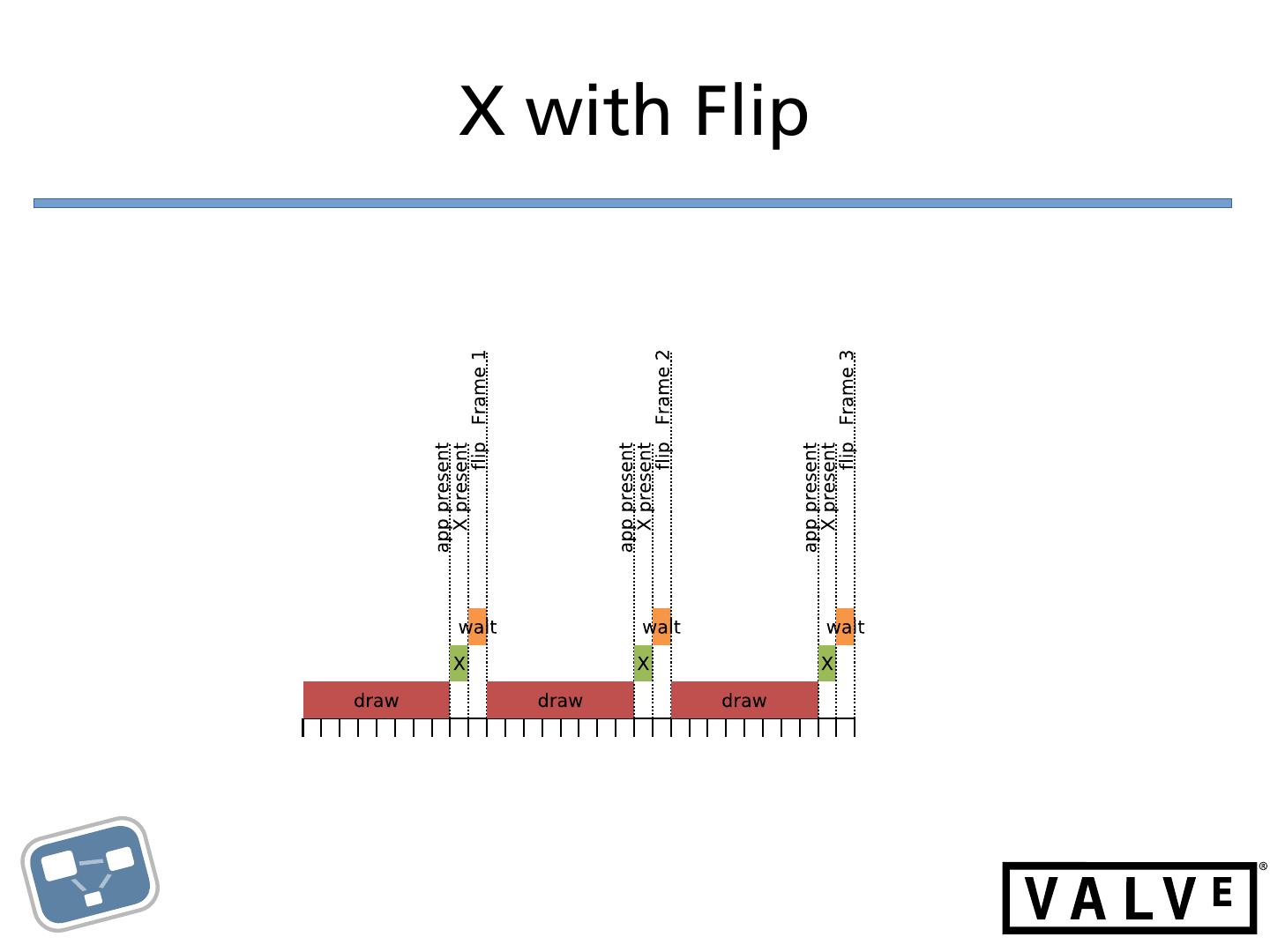

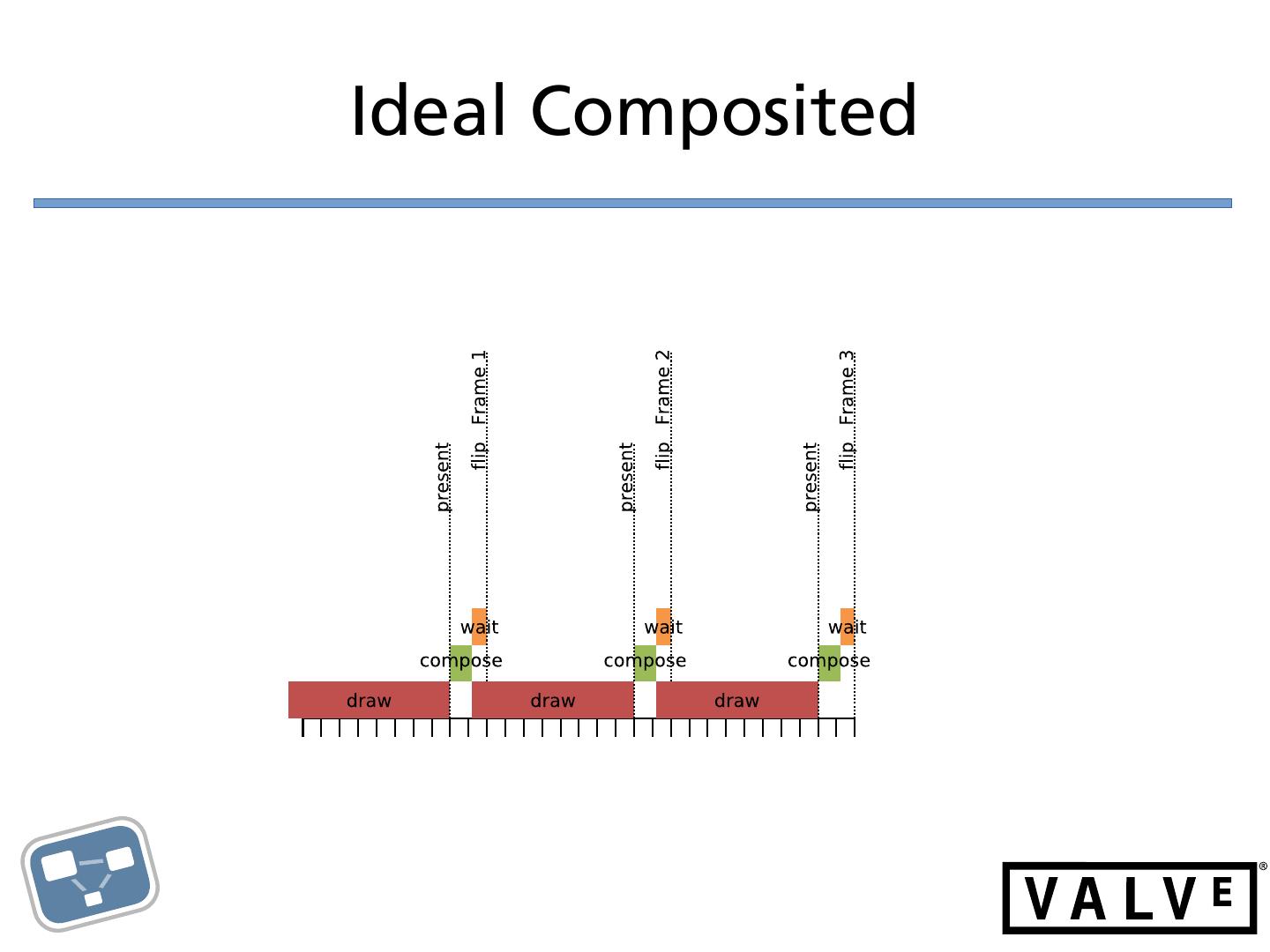

17 . Current X Compositing Process
● Each app rendering request generates
damage events to compositor
● Compositor collects damage
● At 'suitable time', compositor draws and calls
PresentPixmap

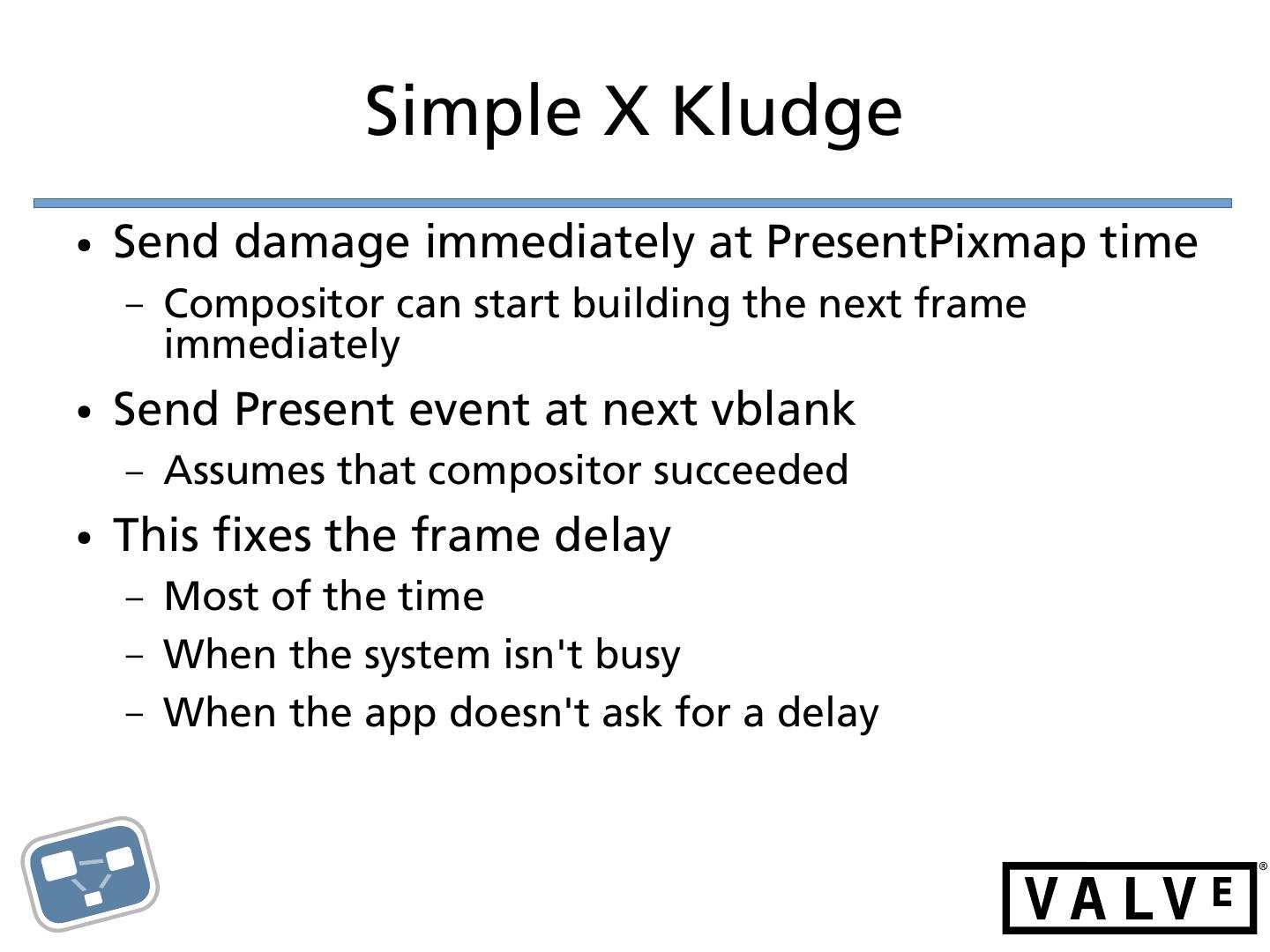

18 . Simple X Kludge
● Send damage immediately at PresentPixmap time
– Compositor can start building the next frame
immediately
● Send Present event at next vblank
– Assumes that compositor succeeded
● This fixes the frame delay
– Most of the time
– When the system isn't busy
– When the app doesn't ask for a delay
19 . Slightly better X Kludge
● Pend Damage in X server until 'the right
time'
● Deliver damage to compositor. Remember
which damage was sent.
● Send Present events to apps at the same time
we send Present event to compositor
● No changes in compositor required
20 . Principled X Fix
● Mark damage events with sequence numbers
● Change compositor to notify X server which
damage sequence is processed by
PresentPixmap
● X server can associate compositor
PresentPixmap with app PresentPixmaps and
deliver correct events.
21 . When is The “Right Time”?
● At some fixed point in the frame?
– But compositor operations may vary
● At the latest possible point in the frame?
– Estimate compositor time based on previous frames and
amount of change?
● When InputFocus app calls PresentPixmap?
– Likely to be where the user is working
– Have the app inform on plans?
– Estimate based on previous app actions?
– Fallback to other method, or drop frame?
22 . Linux Flip API
● Current API is awkward
– Finite event limit in kernel mixes flips and vblank notifies
– Applications must work-around in user space
● Test for failure, attempt to empty pending events, retry
– Times in µS instead of nS
● Doesn't match Vulkan time precision
● Single queue spot
– Queue other buffers in user space
● No 'unqueue'
– Commit to planned frame up front
● Blocks waiting for rendering(?)
– The non-atomic path does
– And I think the atomic does as well.
● Cannot actually support “Mailbox” mode.

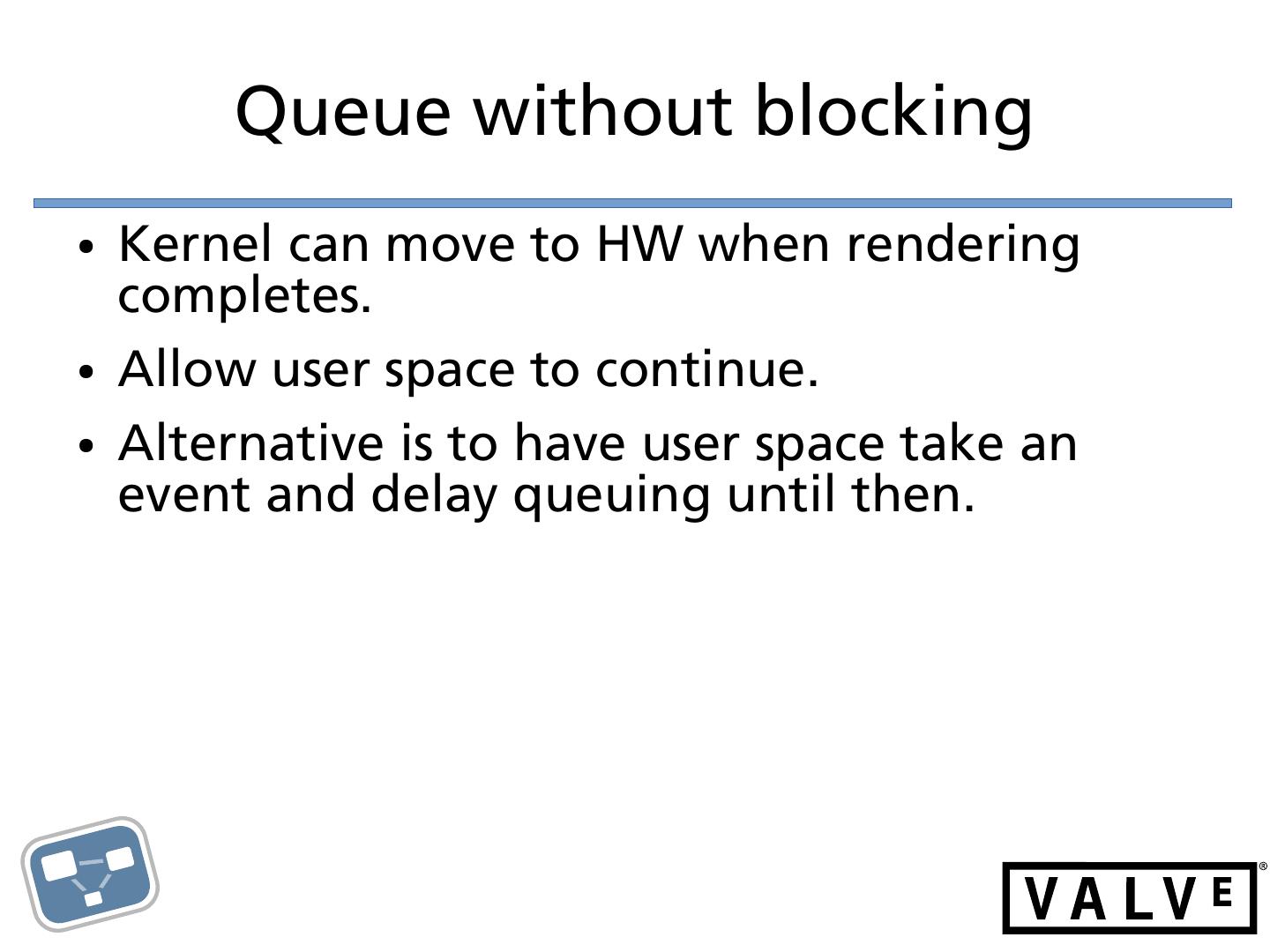

23 . Queue without blocking
● Kernel can move to HW when rendering
completes.
● Allow user space to continue.
● Alternative is to have user space take an
event and delay queuing until then.
24 . Multiple flips queued
● For same frame
– Kernel picks last one ready at vblank
– Idles (and notifies) when possible
● For future frames
– Allow user space to go idle for longer

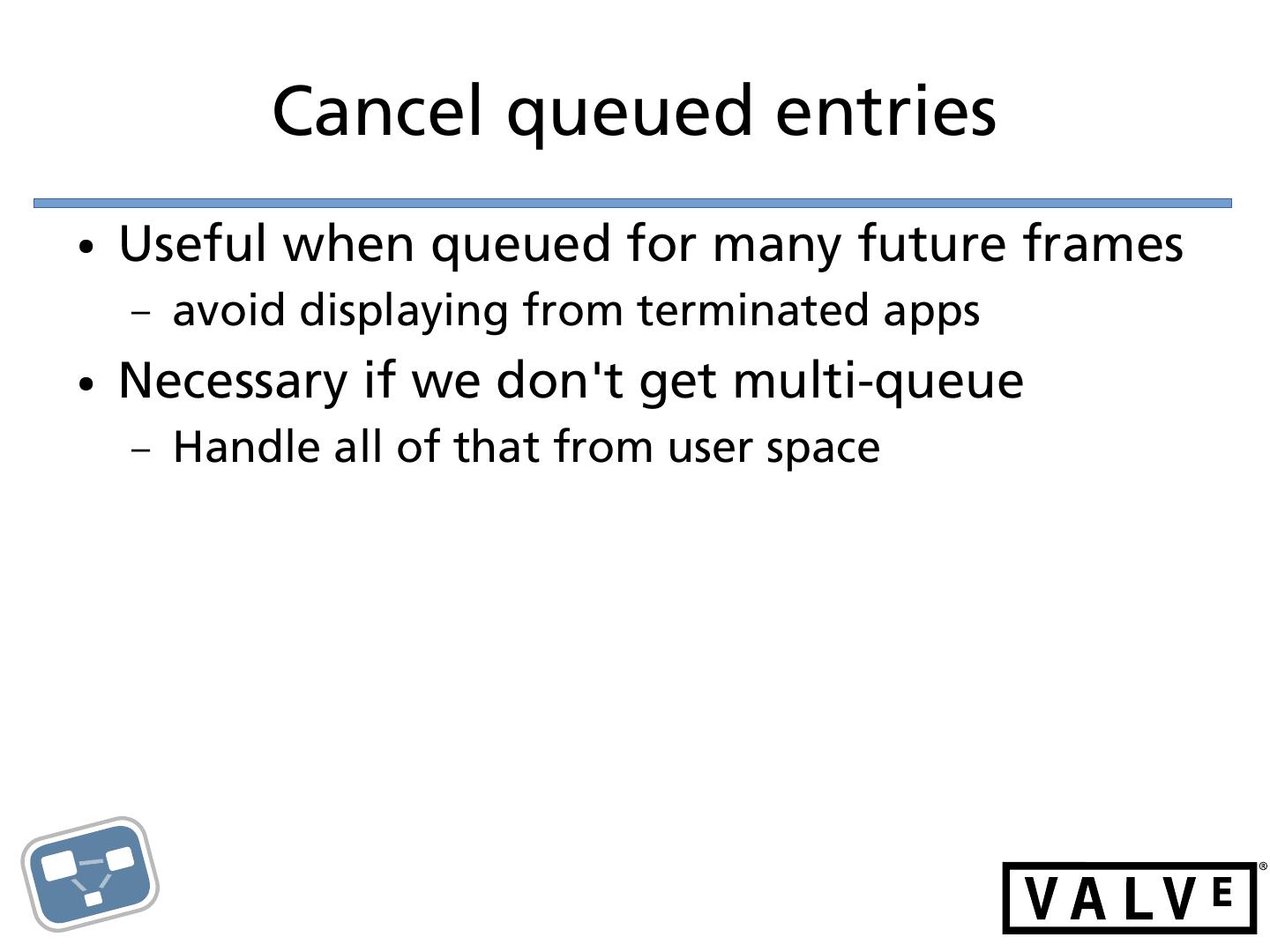

25 . Cancel queued entries
● Useful when queued for many future frames
– avoid displaying from terminated apps
● Necessary if we don't get multi-queue
– Handle all of that from user space
26 . Summary
● Extend Vulkan to expose existing X
capabilities
● Fix timing under composited X
● Enhance Linux flip API
– Make flips more reliable
– Support Mailbox mode
– Provide ns resolution
27 .Thanks!
Keith Packard
